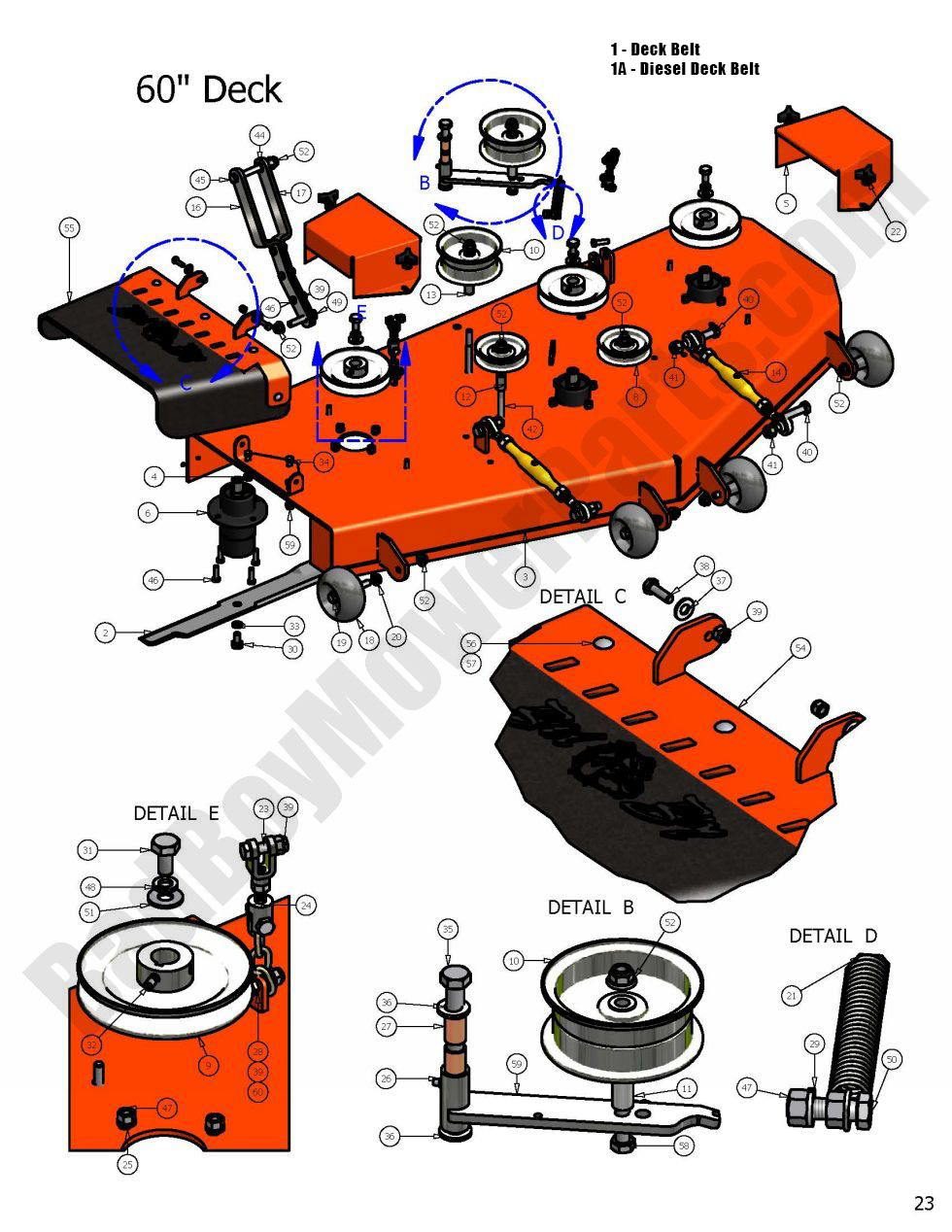

2008 AOS - 60" Deck Assembly

2008 AOS - 60" Deck Assembly

The 2008 AOS 60" Deck Assembly is a crucial part of the mower’s cutting system, and it’s built for efficiency and long-lasting performance. At BadBoyMowerParts.com, we offer the 2008 AOS 60" Deck Assembly and other compatible Bad Boy Mower Parts to help maintain your machine. Whether you need a complete replacement or specific components, we have it all. Our Bad Boy Mower Part diagrams help you understand how the parts fit together, making installation and repairs easier. With a focus on quality, we offer only the best Bad Boy Lawn Mower Parts that are designed to last and improve your mower’s efficiency. As an added convenience, enjoy Free Shipping On Orders Over $100 on all your purchases. Shop Bad Boy Parts Online today and keep your 2008 AOS mower performing like new.

Bad Boy Mower Parts Lookup

2008 AOS - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
1B 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 041-0219-00 041-0219-00 - B219 Deck Belt for 60" AOS w/ Gas Engine
$109.40
2 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
4 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
5 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
6 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
10 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
11 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
12 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
13 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
14 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
16 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$132.68
17 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$132.68
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
22 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
23 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
24 046-6048-00 046-6048-00 - Male Yoke
$15.60
25 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
26 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
27 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
28 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
29 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
30 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
31 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
32 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
33 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
34 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
35 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
36 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
37 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
38 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
39 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
40 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
41 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
42 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
44 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
45 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
46 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
47 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
49 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
50 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
51 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
54 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
55 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
56 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
57 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
59 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
59 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
60 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
