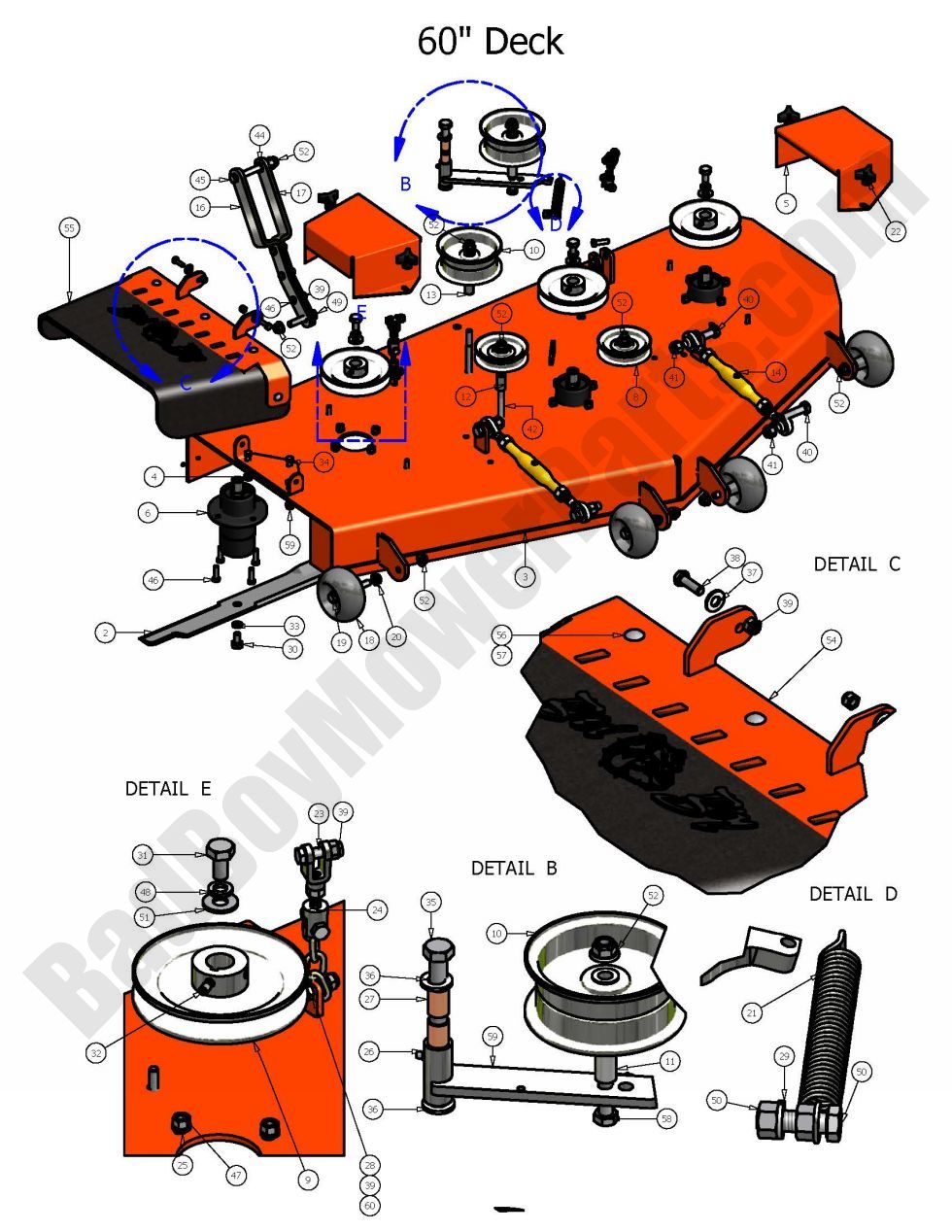

2008 Diesel - 60" Deck Assembly

2008 Diesel - 60" Deck Assembly

The 2008 Diesel 60" Deck Assembly is an essential part of your mower, and BadBoyMowerParts.com makes it easy to find the perfect replacement. Whether you need the deck itself or individual components like the rear suspension or drive arm, we have everything to keep your mower in top shape. Our Bad Boy Mower Part diagrams provide a clear, detailed breakdown of all deck-related parts, ensuring you get exactly what you need. The Bad Boy Lawn Mower Parts we offer are built to last, so you can count on long-lasting performance. Plus, we offer Free Shipping On Orders Over $100, making it easier and more affordable to replace your 2008 Diesel 60" Deck Assembly. With Bad Boy Parts Online, you can quickly browse, select, and purchase your parts, getting your mower back on track in no time.

Bad Boy Mower Parts Lookup

2008 Diesel - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
2 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
4 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
5 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
6 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
10 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
11 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
12 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
13 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
14 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
16 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$132.68
17 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$132.68
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
18 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
19 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
22 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
23 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
24 046-6048-00 046-6048-00 - Male Yoke
$15.60
25 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
26 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
27 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
28 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
29 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
30 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
31 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
32 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
33 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
34 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
35 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
36 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
37 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
38 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
39 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
40 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
44 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
45 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
46 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
47 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
49 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
50 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
51 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
54 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
55 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
56 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
57 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
59 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
59 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
60 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
