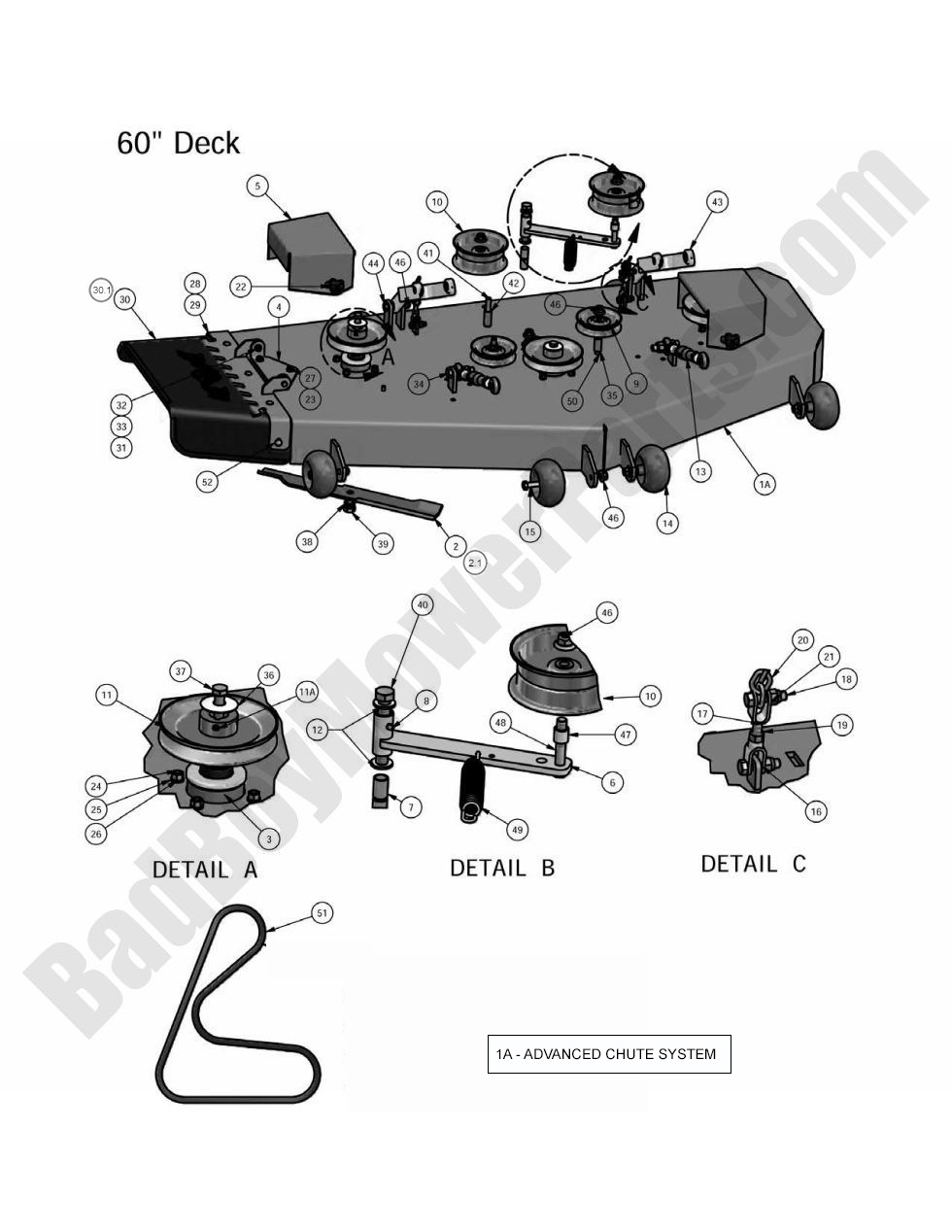

2010 AOS Diesel - 60" Deck Assembly

2010 AOS Diesel - 60" Deck Assembly

The 2010 AOS Diesel 60" Deck Assembly ensures precision cutting and durability for large mowing areas. At BadBoyMowerParts.com, we stock premium Bad Boy Mower Parts, including spindles, cutting blades, belts, and pulleys to maintain superior deck performance. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck assembly components for simple installation. Routine deck maintenance enhances cutting precision, prevents belt wear, and extends deck lifespan. We also stock Bad Boy Parts Online, making it easy to order essential deck components when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 AOS Diesel 60" Deck Assembly is now more cost-effective. Order today to ensure your mower’s deck delivers high-quality mowing results and long-lasting performance.

Bad Boy Mower Parts Lookup

2010 AOS Diesel - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
2.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
2 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
3 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
4 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
5 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
6 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
7 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
8 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
10 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
11A 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
11 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
14A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
14 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
15 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
16 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
17 046-6048-00 046-6048-00 - Male Yoke
$15.60
18 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
19 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
20 047-0004-00 047-0004-00 - 4 Link Chain - Special Link, Chain Only
$2.99
21 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
22 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
23 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
24 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
29 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
30.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
30 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
35 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
36 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
37 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
38 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
39 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
40 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
41 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
42 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
43 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
44 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
46 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
47 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
48 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
49 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
50 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
51 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
52 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
