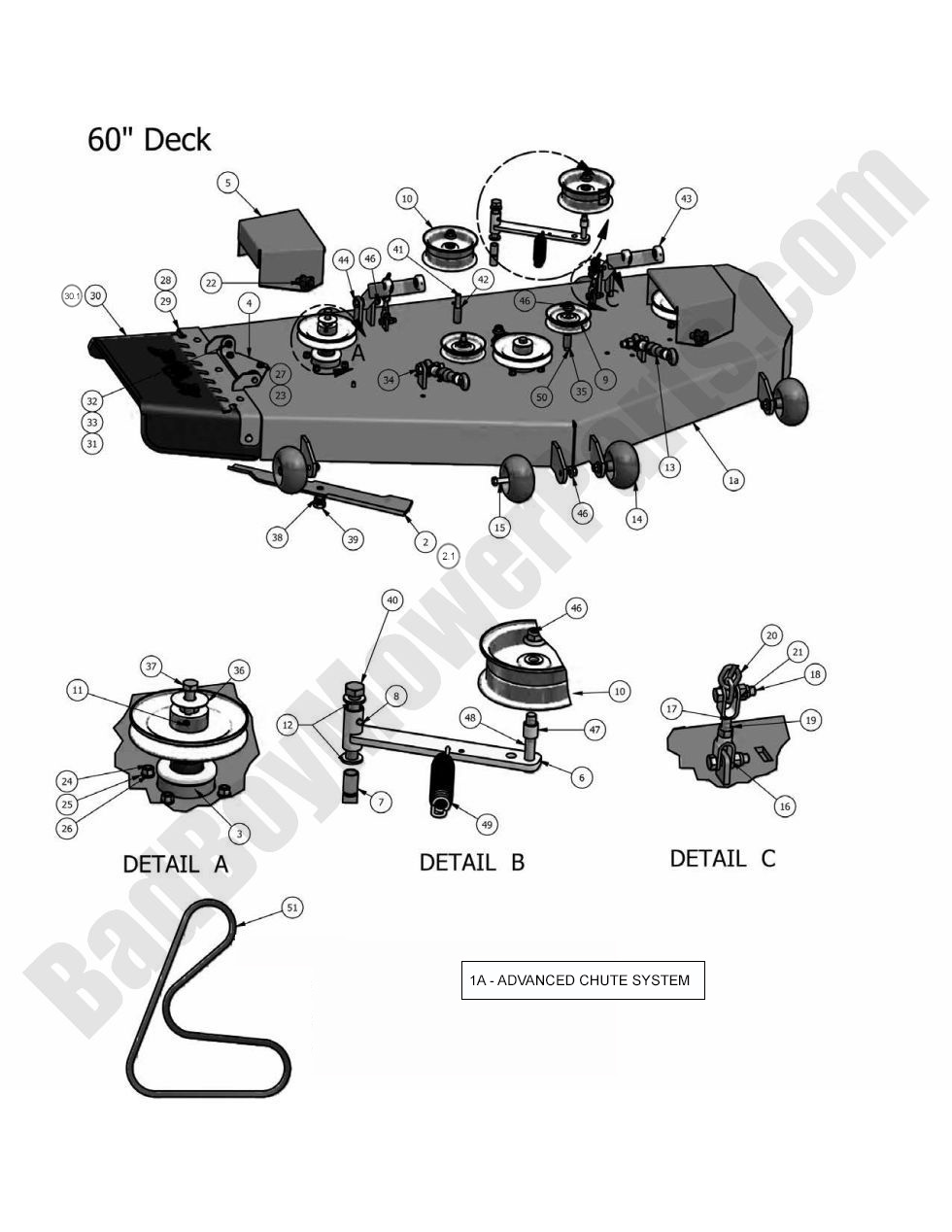

2010 Pup and Lightning - 60" Deck Assembly

2010 Pup and Lightning - 60" Deck Assembly

The 2010 Pup and Lightning 60" Deck Assembly provides an extended cutting width, perfect for efficiently handling larger mowing areas. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including spindles, blades, deck belts, pulleys, and brackets for superior deck functionality. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed to maximize performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct deck components for seamless installation. Routine maintenance prevents wear and tear, maintains sharp blade engagement, and extends your mower deck’s life. With access to Bad Boy Parts Online, ordering deck components is fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Pup and Lightning 60" Deck Assembly is now more cost-effective. Order today to ensure smooth operation, precision cuts, and a deck that’s built to last through rigorous mowing conditions.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
2.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
2 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
3 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
4 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
5 014-6004-00 014-6004-00 - Metal Spindle Cover (See Models Used On For Details)
$42.58
6 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
7 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
8 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
10 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
11 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
13 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
16 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
17 046-6048-00 046-6048-00 - Male Yoke
$15.60
18 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
19 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
20 047-0004-00 047-0004-00 - 4 Link Chain - Special Link, Chain Only
$2.99
21 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
22 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
23 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
24 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
29 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
30.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
30 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
35 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
36 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
37 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
38 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
39 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
40 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
41 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
42 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
43 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
44 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
46 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
47 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
48 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
49 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
50 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
51 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
