2011 CZT 60" Deck Assembly

60" Deck Assembly

The Bad Boy Mower parts diagram for the 2011 CZT 60" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 CZT models. Find all of your Bad Boy mowers 2011 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 CZT 60" Deck. If you are not able to find the Bad Boy parts for your 2011 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 CZT 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
3 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
4 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
5 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
6 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
7 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
9.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2024 Revolt SD 42"
$22.99
9 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2024 Revolt SD 42"
$22.99
10 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
14 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
15 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
18 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
20 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
21 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
22 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
23 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
25 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
26 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
27 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
29 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
30 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
31.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
31 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
32 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
33 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
34 060-6005-00 060-6005-00 - 2007-2013 60" ZT Deck - Shell Only
$1421.85
36 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
37 034-2008-00 034-2008-00 - Deck Idler Spring (See Models Used On For Detail)
$17.11
38 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
39 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
40 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
41 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
42 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97

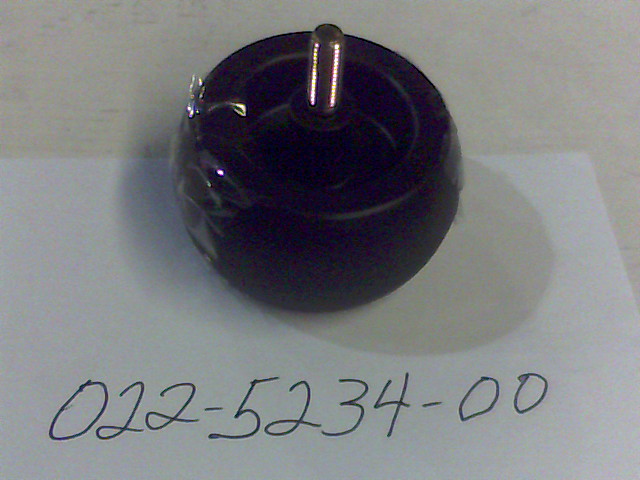

43 022-5234-00 022-5234-00 - Deck Wheel (obsolete)
use part #022-1000-98
$25.99
