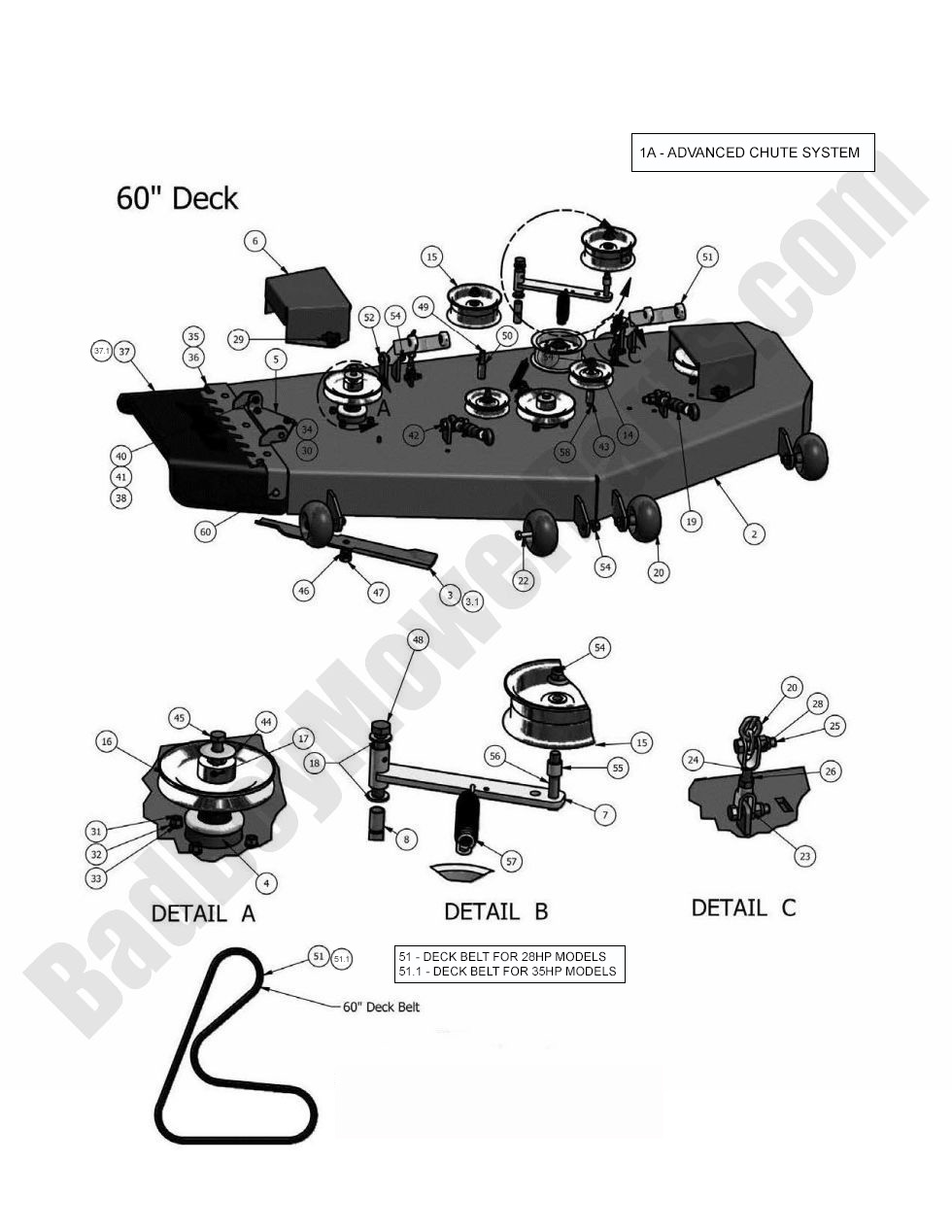

2011 Diesels - 60" Deck Assembly

2011 Diesels - 60" Deck Assembly

The 2011 Diesels 60" Deck Assembly is an essential part of your mower’s performance, and at BadBoyMowerParts.com, we offer the parts you need to keep your machine running smoothly. Our Bad Boy Mower Parts include everything from the deck itself to individual components, so you can replace or repair parts as needed. We provide clear Bad Boy Mower Part diagrams to help you identify the right parts for your deck. Our selection of Bad Boy Lawn Mower Parts ensures that you get the best components available, with high-quality materials that stand the test of time. Shopping for Bad Boy Parts Online is easy with our user-friendly website, and with Free Shipping On Orders Over $100, you can get your parts delivered at no extra cost. Whether you're maintaining your mower or performing a full deck replacement, you’ll find what you need at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2011 Diesels - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
3.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
3 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
5 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
6 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
7 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
8 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
14 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
15 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
16 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
17 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
18 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
19 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
20A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
20 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
23 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
24 046-6048-00 046-6048-00 - Male Yoke
$15.60
25 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 047-0004-00 047-0004-00 - 4 Link Chain - Special Link, Chain Only
$2.99
28 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
29 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
30 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
31 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
32 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
34 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
35 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
36 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
37.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
37 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
38 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
41 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
42 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
43 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
44 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
45 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
47 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
48 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
49 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
50 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
51.1 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
51 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
51 041-0222-00 041-0222-00 - B222 Deck Belt for 60" 28hp/1100cc Diesels (Not AOS Diesels) & 61" Renegade Gas/Diesel
$122.06
52 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
54 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
55 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
56 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
57 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
58 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
60 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
