2012 CZT - 60" Deck Assembly

2012 CZT - 60" Deck Assembly

Introducing the 2012 CZT 60" Deck Assembly, a component engineered to deliver a clean cut over a 60-inch width. This deck assembly is made from durable materials using advanced methods, ensuring precise blade alignment and minimal vibration. Its robust design enhances mowing efficiency, promotes effective grass collection, and provides a smooth mowing experience in commercial and residential settings. The assembly is easy to install with clear instructions and maintenance guidelines to guarantee long service life and a secure fit. Integrating with the 2012 CZT’s structure, this deck assembly improves cutting quality and operational efficiency. For detailed schematics, verified components, and expert support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for guidance and professional advice. Upgrade your mower with this deck assembly to achieve excellent cutting performance every time. Experience excellence today. Enjoy superior results.

Bad Boy Mower Parts Lookup

2012 CZT - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
2.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
2 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
3 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
4 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
5 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
6 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
7 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
8 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
9 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
10 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
11 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
12 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
15 060-6005-98 060-6005-98 - 2007-2013 60" ZT Deck - Complete w/spindles
$2199.99
16 060-6005-00 060-6005-00 - 2007-2013 60" ZT Deck - Shell Only (See Models Used On For Details)
$1328.83
17 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
18 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
19 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
20 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94

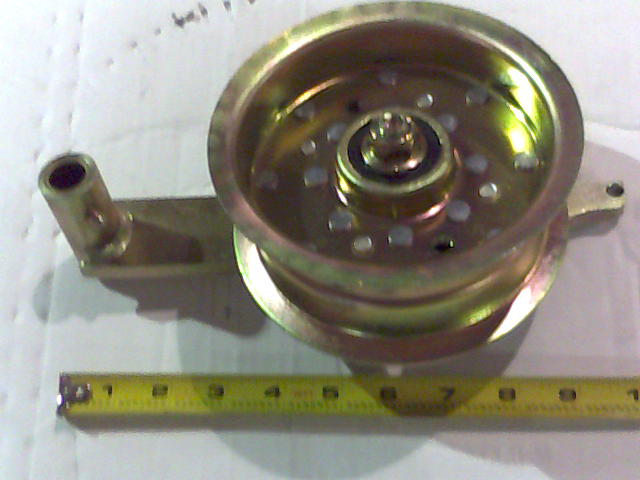

21 039-6936-98 039-6936-98 - Deck Idler Assembly (See Models Used On For Details)
$86.66
22 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
23 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
24 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
25 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
26 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
27 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
28 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
29 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
30 034-2008-00 034-2008-00 - Deck Idler Spring (See Models Used On For Detail)
$17.11
31 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
33 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
34 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
35 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
38A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
39 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
40 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
42 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
43 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
44 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
45 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
46 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
48 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
