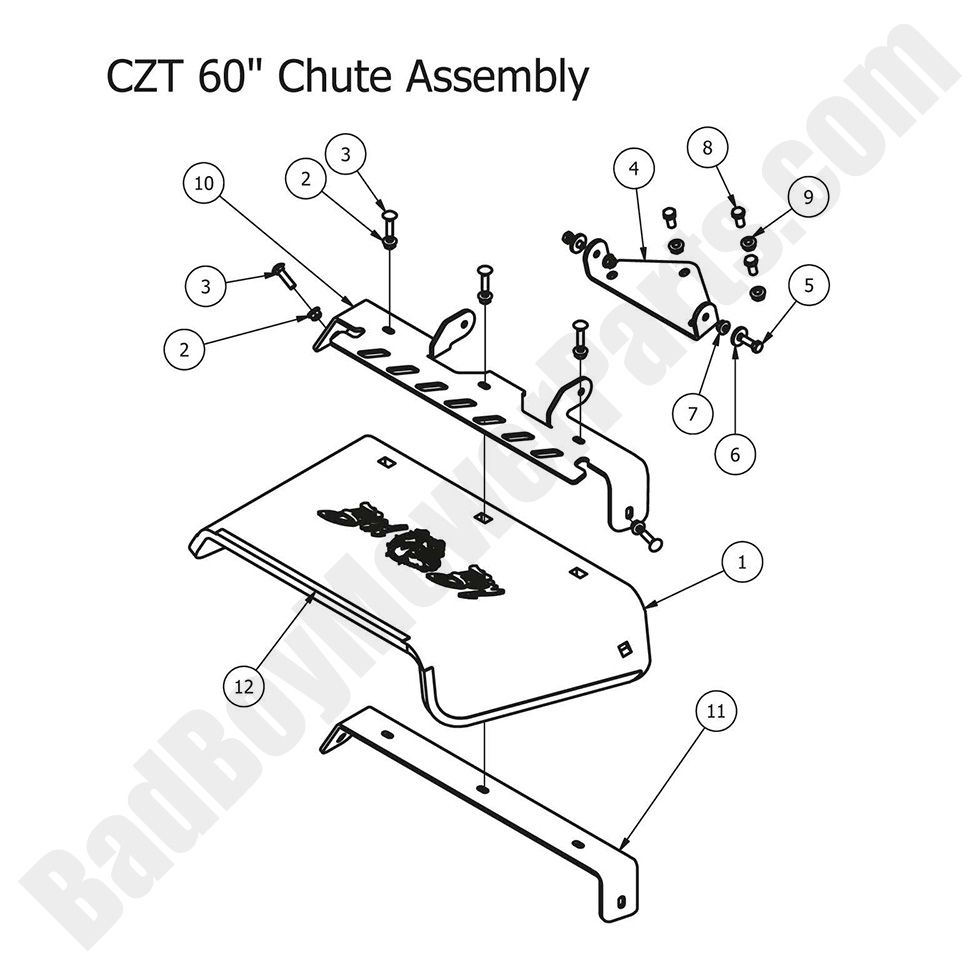

2012 CZT - 60" Discharge Chute Assembly

2012 CZT - 60" Discharge Chute Assembly

Introducing the 2012 CZT 60" Discharge Chute Assembly, a component engineered to direct clippings away from your mowing area for a cleaner lawn. This discharge chute is built using durable materials and advanced methods to ensure consistent performance and minimal clogging. Its design promotes optimal airflow and effective debris dispersal, enhancing mower efficiency in residential and commercial settings. Installation instructions and maintenance guidelines are provided to guarantee a secure fit and long service life. The assembly integrates with the 2012 CZT, improving functionality and reducing cleaning frequency. For detailed schematics, verified components, and expert support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for guidance and professional advice. Upgrade your mower with this assembly to ensure efficient operation every time. Enjoy superior results today. Experience exceptional performance and lasting efficiency now for maximum lawn satisfaction.

Bad Boy Mower Parts Lookup

2012 CZT - 60" Discharge Chute Assembly
  Position Number SKU Product Title Price
1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
4 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
11 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
12 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
