2010 Outlaw & Outlaw Extreme 61" Deck Assembly

61" Deck Assembly

The Bad Boy Mower parts diagram for the 2010 Outlaw 61" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Outlaw models. Find all of your Bad Boy mowers 2010 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Outlaw 61" Deck. If you are not able to find the Bad Boy parts for your 2010 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 060-6100-00 060-6100-00 - 2010-2014 Outlaw/XP, 2012-2014 Diesel (28hp, 1100CC) 61" Deck Shell
$1563.84
2 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Outlaw/Outlaw XP
$96.29
3 060-6210-10 060-6210-10 - 61 Outlaw Adjustable Front Rig
$53.45
4 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
5 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
6 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
7 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
8.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91

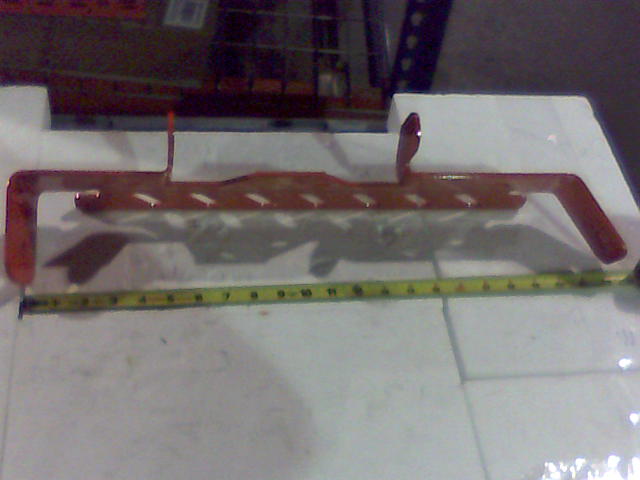

9 039-4880-00 039-4880-00 - 72 Upper Discharge Chute Brack fits 72" models before 2012
$32.09
10 039-4881-00 039-4881-00 - 72 Discharge Lower Bracket Rub ber Chute,Models before 2012
$32.65
11 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
12 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
13 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
14.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
14 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
15A 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
15 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
16 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
17 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
18 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
19 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
22 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
23 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
24 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
25 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
26 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
27 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
28 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
29 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
31 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
32A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
32 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
33 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
35 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
36 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
37 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
38 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
39 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
40 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
41 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
42 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
43 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
44 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
45 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
46 018-7051-00 018-7051-00 - 1/2 x 4 1/2 Grade 8 Bolt
$2.99
