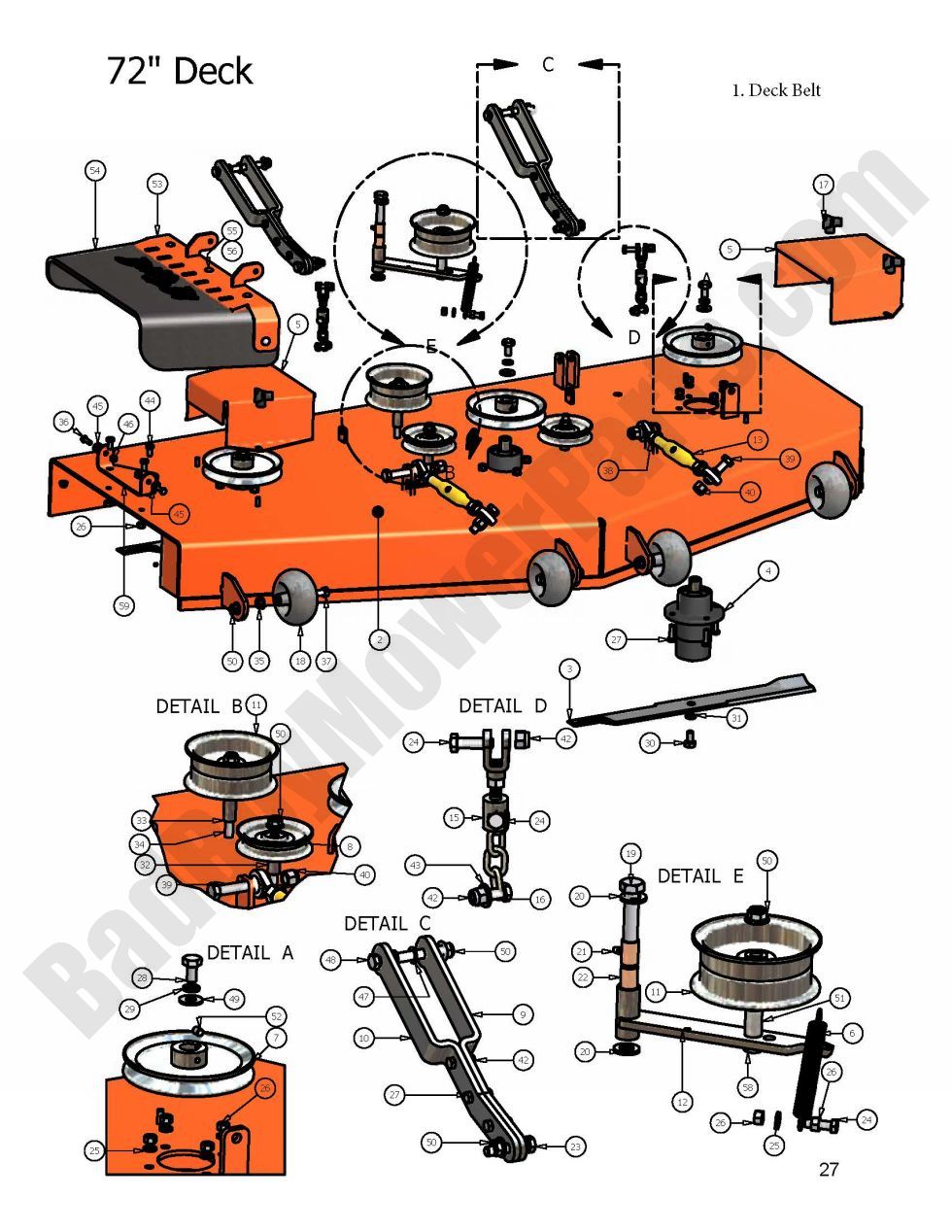

2007 AOS 72" Deck Assembly

72" Deck Assembly

The Bad Boy Mower parts diagram for the 2007 AOS 72" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the badboy mower parts diagrams for the 2007 AOS models. Find all of your Bad Boy mowers 2007 AOS parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 AOS 72" Deck. If you are not able to find the Bad Boy parts for your 2007 AOS please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 AOS 72" Deck Assembly
  Position Number SKU Product Title Price
1A 041-2525-00 041-2525-00 - B252.50 Deck Belt for 72" AOS Diesel (35hp/1500cc)
$140.49
1B 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$140.49
3 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
4 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$213.99
5 014-7204-00 014-7204-00 - 2007-2020 72" Spindle Cover (See Models Used On)
$42.58
6 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
7 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks - DB-112
$35.48
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$141.97
10 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$141.97
11 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
12 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
15 046-6048-00 046-6048-00 - Male Yoke
$15.60
16 047-6047-00 047-6047-00 - 3 Chain
$2.99
17 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
19 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
28 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
29 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
34 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
36 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
38 013-6058-00 013-6058-00 - 3/4-10 Left Hand Thread Hex Nu ts Zinc GR5
$3.52
39 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
40 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
42 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
47 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
48 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
49 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
51 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$2.99
52 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
53 039-4880-00 039-4880-00 - 72 Upper Discharge Chute Brack fits 72" models before 2012
$32.09
54A 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$141.97
54 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
55 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
56 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
59 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
