2008 Diesel - 72" Deck Assembly

2008 Diesel - 72" Deck Assembly

For those with the 2008 Diesel 72" Deck Assembly, BadBoyMowerParts.com provides a full range of parts to ensure your mower operates smoothly. Whether it’s the deck itself, the rear pulley assembly, or the actuator bar, we have everything you need to perform your repairs. Our Bad Boy Mower Part diagrams make it easy to find each individual component, so you can rest assured that you’re purchasing the correct part. With our extensive selection of Bad Boy Lawn Mower Parts, you can trust that you’re getting high-quality, durable replacements. We also offer Free Shipping On Orders Over $100, so you can get your parts delivered without additional costs. Shopping for Bad Boy Parts Online is easy, allowing you to complete your repair quickly and efficiently. Keep your 2008 Diesel 72" Deck Assembly performing like new with the parts you need from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

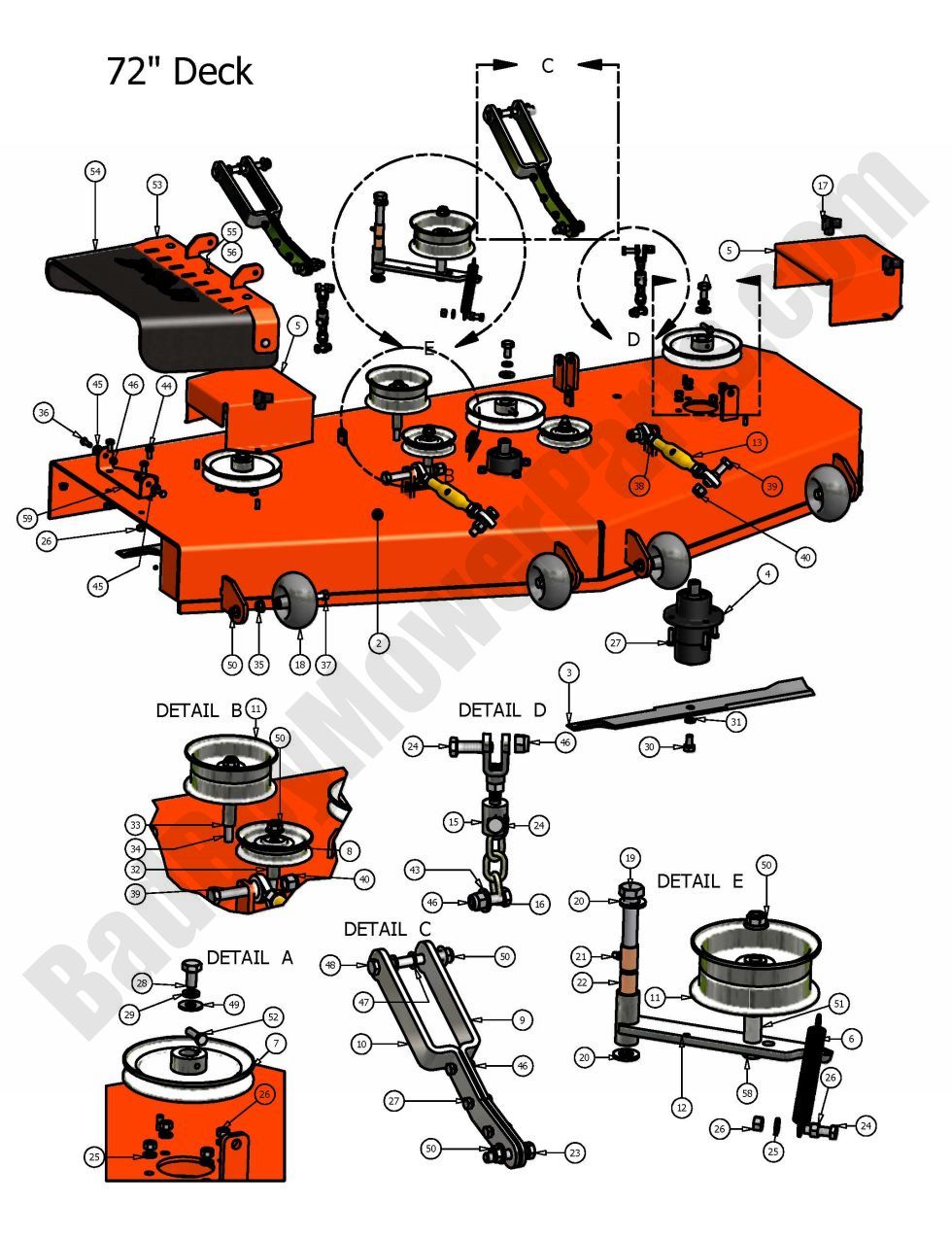

2008 Diesel - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 041-0254-00 041-0254-00 - B254 Deck Belt, Obsolete Use 041-2525-00 (obsolete)
use part #041-2525-00
$131.30
2 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1594.22
3 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
4 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
5 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
6 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
7 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$132.68
10 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$132.68
11 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
12 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
15 046-6048-00 046-6048-00 - Male Yoke
$15.60
16 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
17 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
18 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
29 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
30 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
31 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
36 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
37 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
38 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
39 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
40 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
47 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
48 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
49 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
51 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
52 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
53 039-4880-00 039-4880-00 - 72 Upper Discharge Chute Brack fits 72" models before 2012
$32.09
54 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
55 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
56 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
59 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
