2010 AOS Diesel - 72" Deck Assembly

2010 AOS Diesel - 72" Deck Assembly

The 2010 AOS Diesel 72" Deck Assembly provides wider cutting capacity, making it ideal for commercial mowing or large areas. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including spindles, deck belts, pulleys, and reinforced cutting blades for durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built for reliability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct deck assembly components for seamless installation. Routine deck maintenance enhances mowing precision, prevents uneven cutting, and extends the overall deck lifespan. We also stock Bad Boy Parts Online, making it easy to order deck components anytime. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 AOS Diesel 72" Deck Assembly is now more affordable. Order today to keep your mower’s deck in top condition, ensuring superior cutting results, professional-grade efficiency, and long-term durability.

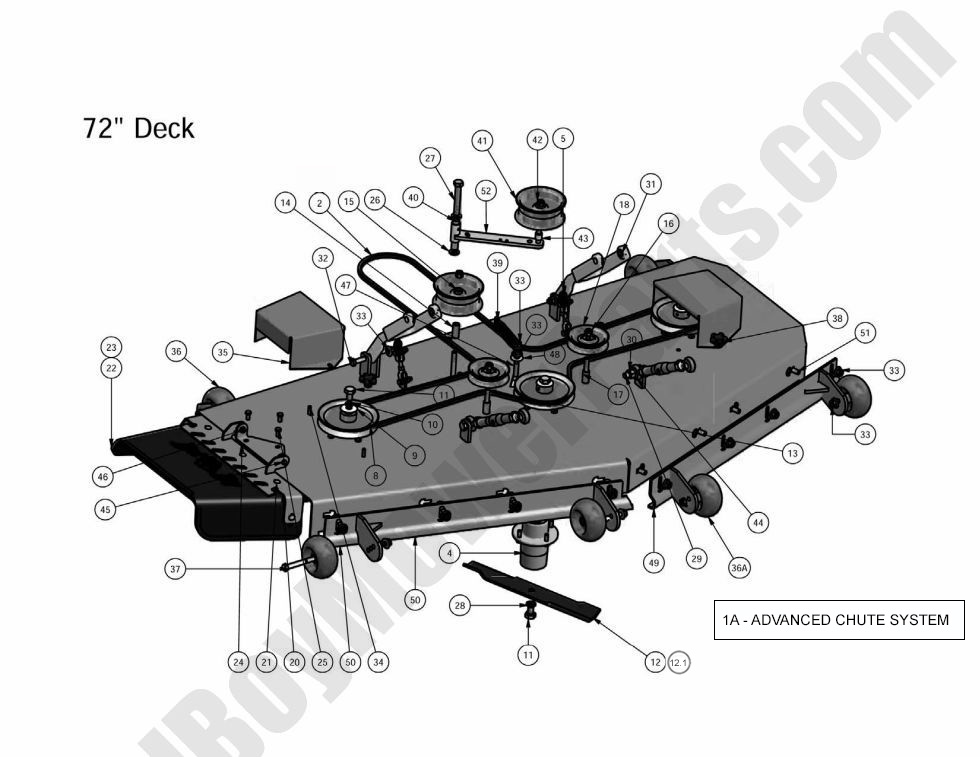

Bad Boy Mower Parts Lookup

2010 AOS Diesel - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
2 041-2525-00 041-2525-00 - B252.50 Deck Belt for 72" AOS Diesel (35hp/1500cc)
$131.30
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
5 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
9 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
10 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
12.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
12 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
15 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
19 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
20 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
21 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
22 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
23 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$132.68
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
28 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
29 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
30 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
31 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
32 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
34 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
35 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
36A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
38 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
39 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
40 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
43 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
44 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
45 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
46 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
47 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
48 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
49 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
50 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
51 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
52 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
