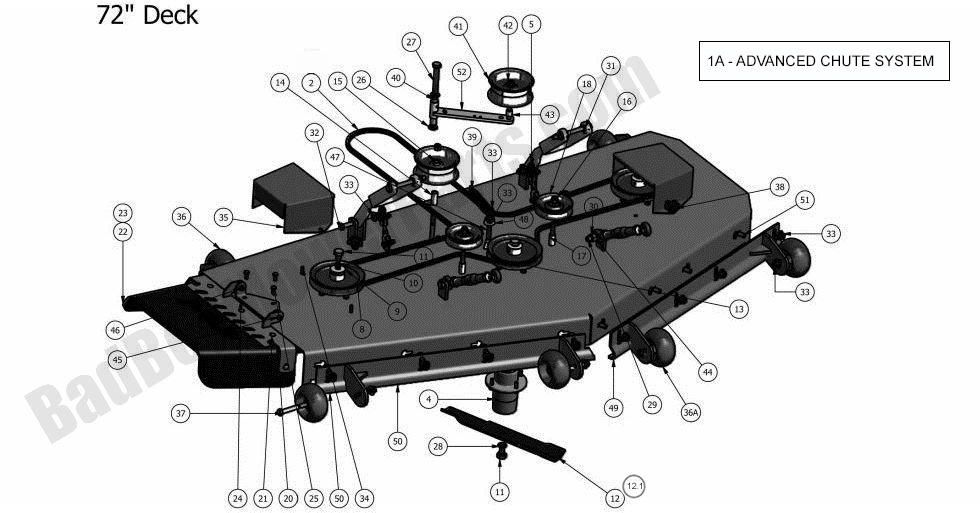

2011 Outlaw & Outlaw Extreme - 72" Deck Assembly

2011 Outlaw & Outlaw Extreme - 72" Deck Assembly

For larger lawns or more demanding tasks, the 2011 Outlaw & Outlaw Extreme 72" Deck Assembly provides the cutting power you need. At BadBoyMowerParts.com, we offer everything required to keep your 72" deck running like new, from replacement spindles to complete deck assemblies. Our detailed Bad Boy Mower Part diagrams make it easy to find the right parts for your mower. Whether you're working with Bad Boy Lawn Mower Parts or other components, we’ve got you covered. You can conveniently shop for all the parts you need through Bad Boy Parts Online, and enjoy Free Shipping On Orders Over $100 to save even more. For the best selection of replacement parts for your 2011 Outlaw & Outlaw Extreme 72" Deck Assembly, visit BadBoyMowerParts.com and ensure your mower’s deck is always in top working order.

Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-7230-00 060-7230-00 - 2010-2014 Outlaw/Outlaw XP 72" Deck Shell
$1461.53
2 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
4 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
5 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
9 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
10 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
11 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
12.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
12 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
15 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
21 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
22 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
23 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$132.68
24 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
25 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
28 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
29 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
30 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
31 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
32 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
34 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
35 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
36A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
36 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
38 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
39 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
40 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
43 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
44 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
45 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
46 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
47 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
48 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
49 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
50 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
51 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
52 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
