2012 Diesels - 72" Deck Assembly

2012 Diesels - 72" Deck Assembly

The 72" Deck Assembly is a crucial component of your 2012 Diesels Bad Boy mower, and when it needs replacement, you can rely on BadBoyMowerParts.com to provide everything you need. We offer a wide selection of Bad Boy Mower Parts to help keep your mower functioning at its highest level. Whether you need the full deck assembly or individual components, we make it easy to find the right parts. With detailed Bad Boy Mower Part diagrams available on the site, you can be sure you’re ordering the correct components. Shopping for Bad Boy Lawn Mower Parts online has never been easier, and you can complete your order quickly. Plus, take advantage of Free Shipping On Orders Over $100 for additional savings. If you're in need of a 2012 Diesels 72" deck or any other part, BadBoyMowerParts.com is the ideal place to get the parts you need quickly, efficiently, and affordably.

Bad Boy Mower Parts Lookup

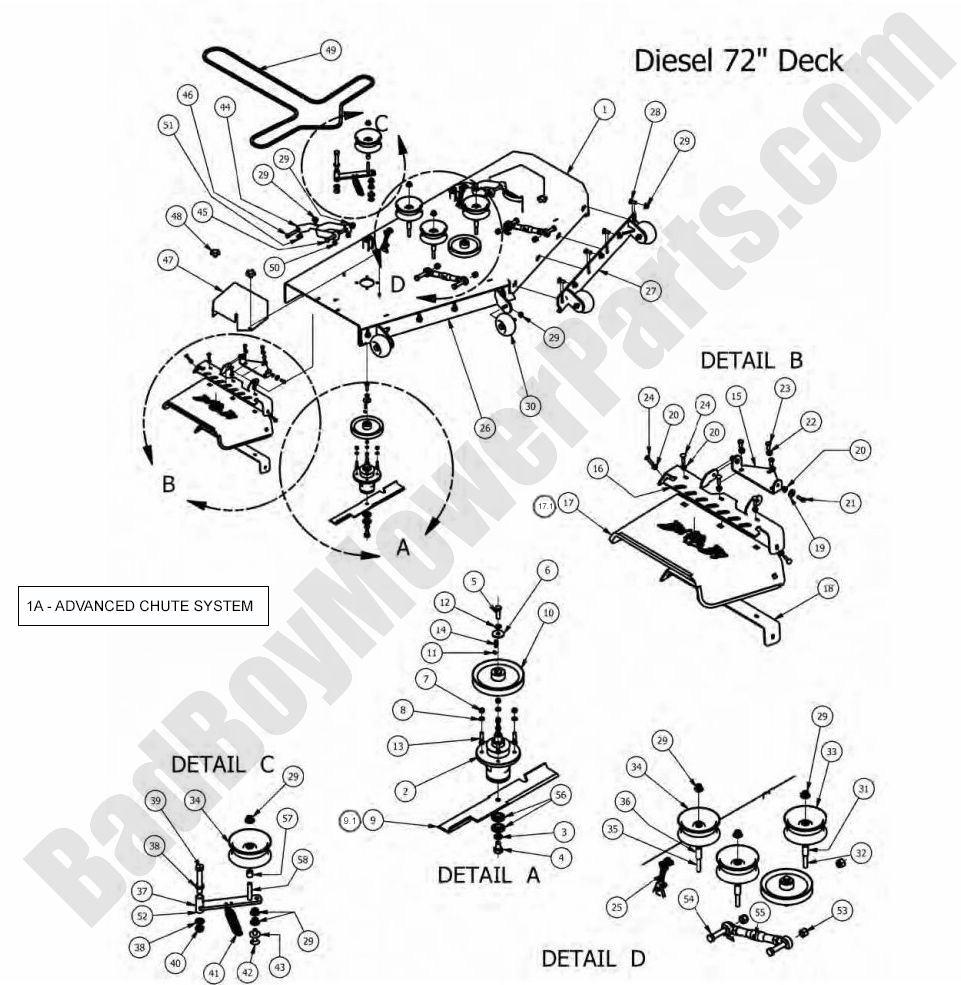

2012 Diesels - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1594.22
2 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
3 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
4 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
5 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
6 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
7 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
9 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
10 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
11 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
14 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
15 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
16 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
17.1 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$132.68
17 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
18 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
19 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
24 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
25 047-5000-00 047-5000-00 - 5 Link Adjustable Deck Hanger (See Models Used On For Details)
$28.39
26 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
27 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
28 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
29 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
33 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
34 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
35 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
38 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
40 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
41 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
42 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
43 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
44 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
45 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
46 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
47 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
48 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
49 041-2525-00 041-2525-00 - B252.50 Deck Belt for 72" AOS Diesel (35hp/1500cc)
$131.30
50 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
51 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
52 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
53 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
54 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
55 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
56 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
57 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
