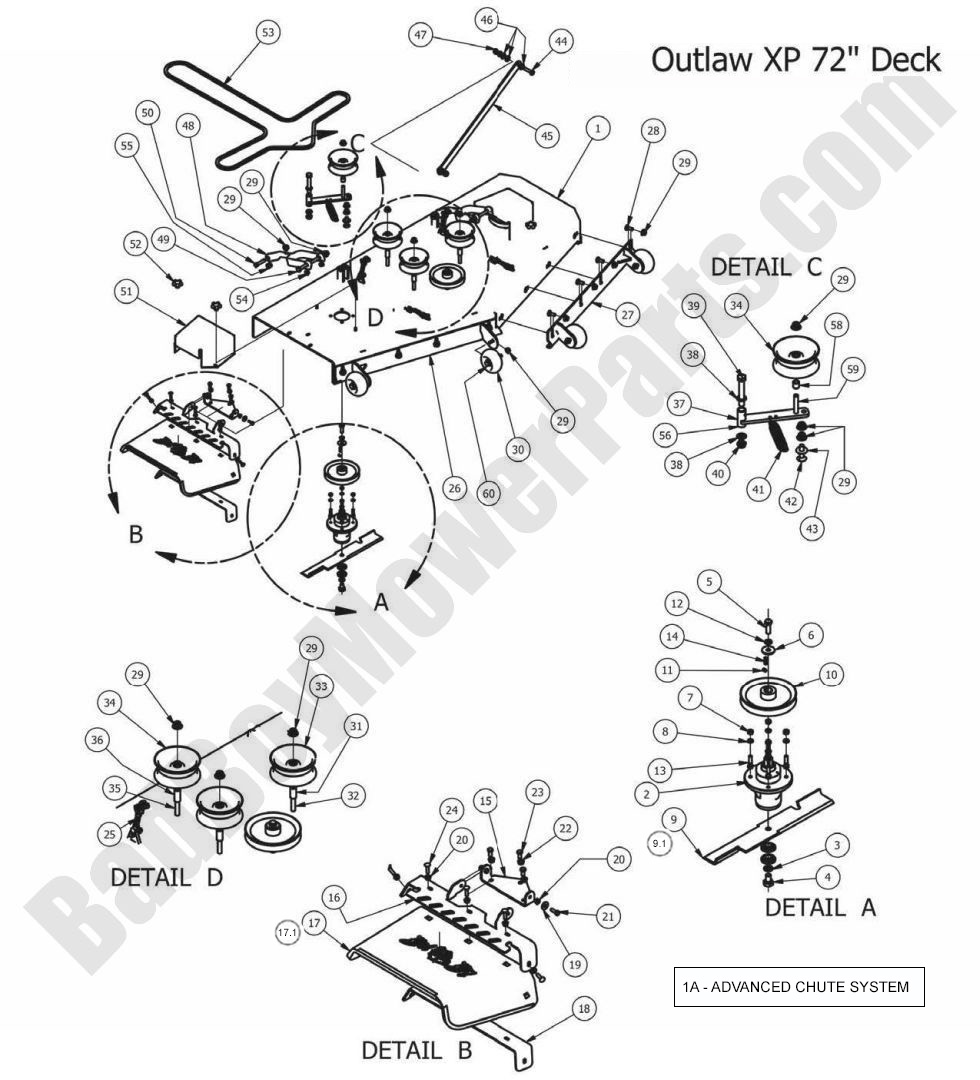

2013 Outlaw XP - 72" Deck Assembly

2013 Outlaw XP - 72" Deck Assembly

The 2013 Outlaw XP 72" Deck Assembly is perfect for those needing even more cutting width. With this deck, you can cover more ground in less time, making it ideal for large properties. Whether you need routine maintenance or major repairs, Bad Boy Mower Parts provides everything necessary to keep your deck functioning at its best. From spindles and blades to pulleys and belts, you’ll find all the Bad Boy Lawn Mower Parts required for your 72" deck. BadBoyMowerParts.com offers a convenient platform to shop Bad Boy Parts Online, with easy ordering and fast delivery. Take advantage of Free Shipping On Orders Over $100 for additional savings. To make installation and repair even easier, refer to the Bad Boy Mower Part diagrams to ensure each component is correctly installed. Keep your 2013 Outlaw XP 72" Deck Assembly in top shape for the best mowing experience.

Bad Boy Mower Parts Lookup

2013 Outlaw XP - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-7230-00 060-7230-00 - 2010-2014 Outlaw/Outlaw XP 72" Deck Shell
$1461.53
2 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$291.91
3 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
4 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
5 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
6 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
7 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
9.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
9 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
10 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
11 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
14 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
15 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
16 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
17.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
17 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
18 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
19 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
24 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
25 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
26 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
27 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
28 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
29 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
32 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
33 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
34 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
35 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
36 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
37 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
38 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
40 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
41 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
42 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
43 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
44 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
45 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
46 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
47 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
48 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
49 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
50 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
51 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
52 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
53 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
54 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
55 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
56 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
58 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
59 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
60 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
