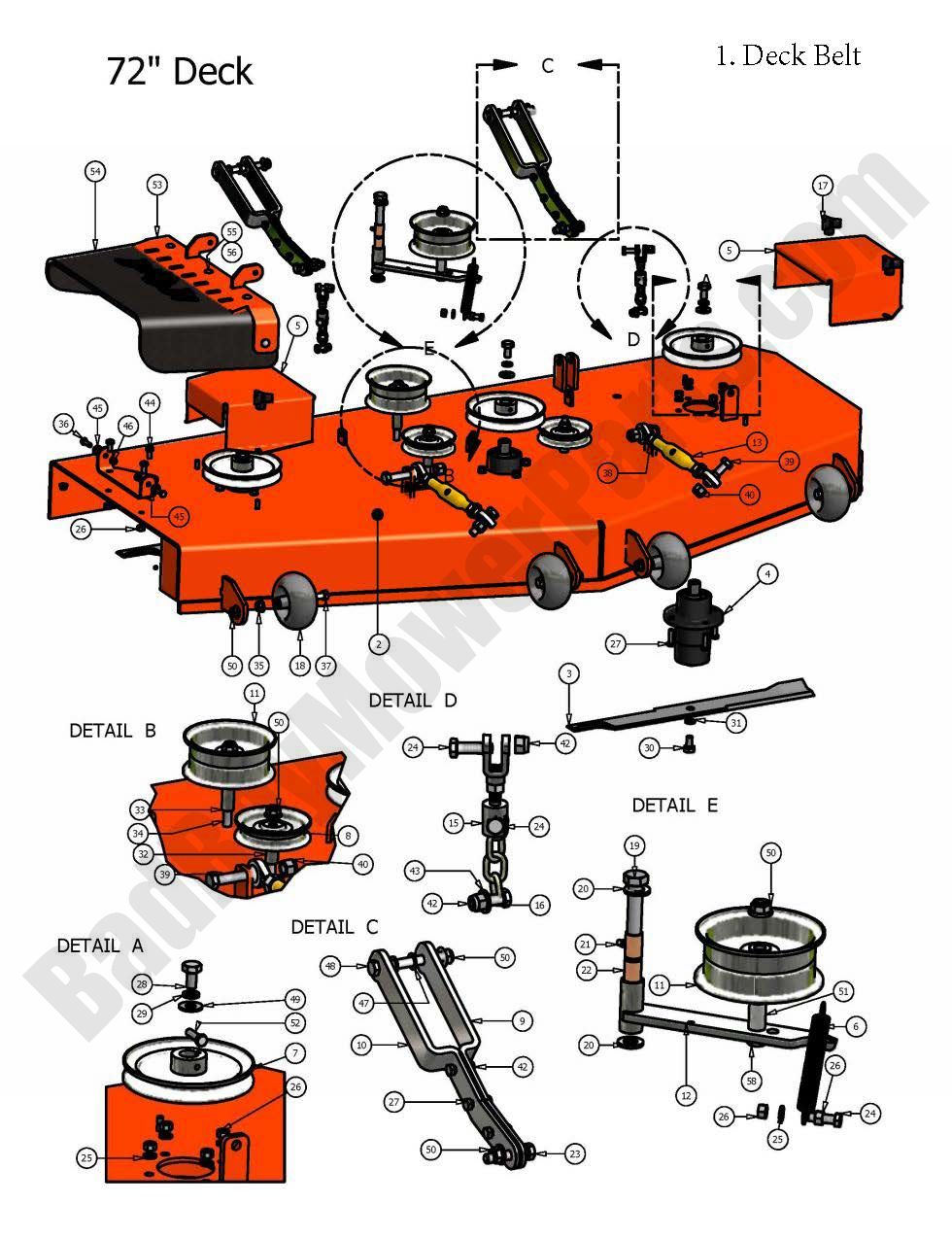

2008 Pup and Lightning - 72" Deck Assembly

2008 Pup and Lightning - 72" Deck Assembly

When it comes to the 2008 Pup and Lightning 72" Deck Assembly, BadBoyMowerParts.com offers a comprehensive selection of replacement parts designed to keep your mower running smoothly. Our high-quality Bad Boy Mower Parts are perfect for restoring the performance of your mower, from blades and pulleys to bearings and spindles. With Bad Boy Lawn Mower Parts, you can maintain a precise and even cut every time. Use our Bad Boy Mower Part diagrams to easily find the right components for your 2008 Pup and Lightning 72" deck. Shopping Bad Boy Parts Online is convenient, and our site ensures you’ll find exactly what you need. Plus, we offer Free Shipping On Orders Over $100, so you can save on delivery costs. Upgrade your mower’s deck assembly and enjoy a higher level of efficiency with quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2008 Pup and Lightning - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 041-1890-00 041-1890-00 - B188.90 Deck Belt for 72" Pup/Lightning
$88.80
2 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1594.22
3 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
4 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99
5 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
6 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
7 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$132.68
10 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$132.68
11 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
12 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
15 046-6048-00 046-6048-00 - Male Yoke
$15.60
16 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
17 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
18 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
19 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
25 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
28 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
29 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
30 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
31 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
36 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
37 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
38 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
39 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
40 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
42 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
43 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
47 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
48 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
49 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
51 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
52 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
53 039-4880-00 039-4880-00 - 72 Upper Discharge Chute Brack fits 72" models before 2012
$32.09
54A 210-6006-00 210-6006-00 - Discharge Chute Assembly For 72" Decks 2012 & Older (See Models Used On For Detail)
$132.68
54 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
55 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
56 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
