2009 Diesel - 72" Deck Assembly

2009 Diesel - 72" Deck Assembly

For those with a 2009 Diesel 72" Deck Assembly, BadBoyMowerParts.com is your go-to source for top-quality replacement parts and accessories. Whether you're dealing with deck wear or need an entire assembly, we provide a wide selection of Bad Boy Mower Parts to suit your needs. Our comprehensive Bad Boy Mower Part Diagrams make it easy to find the exact components that will fit your mower perfectly. From blades to pulleys and spindles, our Bad Boy Lawn Mower Parts are designed to keep your mower in optimal working condition. Shopping for Bad Boy Parts Online is simple and convenient on our website, where you can find everything you need quickly. Plus, we offer Free Shipping On Orders Over $100, so you can save on delivery costs while getting high-quality parts shipped directly to your door. Don’t let deck problems slow you down—order today and keep your 2009 Diesel mower in top shape.

Bad Boy Mower Parts Lookup

2009 Diesel - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 041-0254-00 041-0254-00 - B254 Deck Belt, Obsolete Use 041-2525-00 (obsolete)
use part #041-2525-00
$131.30

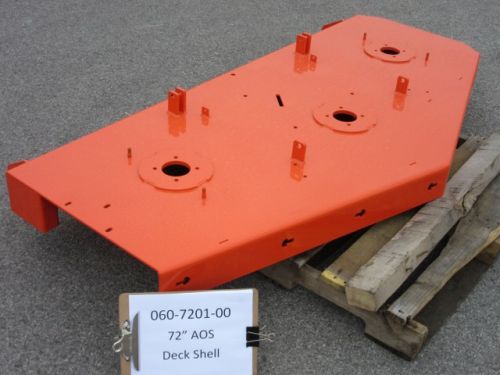

2 060-7201-00 060-7201-00 - 72" Deck Shell W/O Front Gates (See Models Used On For Detail)
$1594.22
3.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
3 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
4 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$199.99

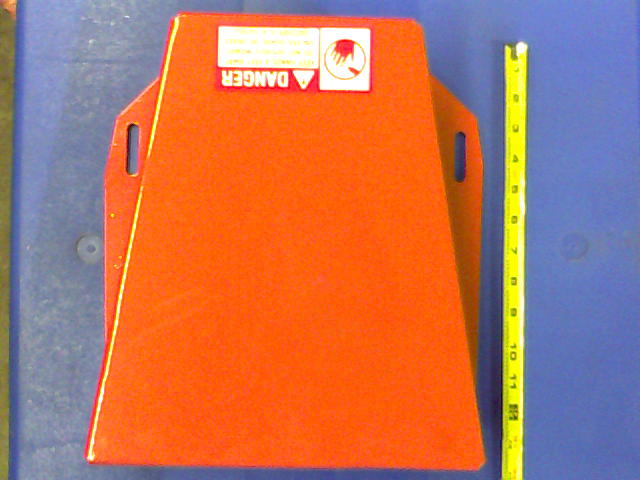

5 014-7204-00 014-7204-00 - 72" Spindle Cover (See Models Used On For Details)
$42.58
6 034-9035-00 034-9035-00 - Deck Idler Spring
$17.11
7 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 031-6028-00 031-6028-00 - OBSOLETE use 031-6020-00 Deck Arm (Right) (obsolete)
use part #031-6020-00
$132.68
10 031-6027-00 031-6027-00 - OBSOLETE use 031-6020-00 Deck Arm (left) (obsolete)
use part #031-6020-00
$132.68
11 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley (See Description for Details)
$56.77
12 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
13 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
15 046-6048-00 046-6048-00 - Male Yoke
$15.60
16 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
17 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
18A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
19 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
22 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
24 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
24 046-6044-00 046-6044-00 - Female Yoke (See Models Used On For Details)
$10.77
25 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
26 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
27 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
28 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
29 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
30 018-6021-00 018-6021-00 - OBSOLETE - Use Part 018-6020-00 (obsolete)
use part #018-6020-00
$2.99
31 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
32 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
33 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
34 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
35 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
36 018-5015-00 018-5015-00 - 5/16-18 X 1 Button Head Bolt
$2.99
38 013-6058-00 013-6058-00 - 3/4-10 Left Hand Hex Nut
$3.52
39 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
39 039-4880-00 039-4880-00 - 72 Upper Discharge Chute Brack fits 72" models before 2012
$32.09
40 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
44 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
45 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
46 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
47 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
48 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
49 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
51 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
52 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
54 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
55 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
56 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
58 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
