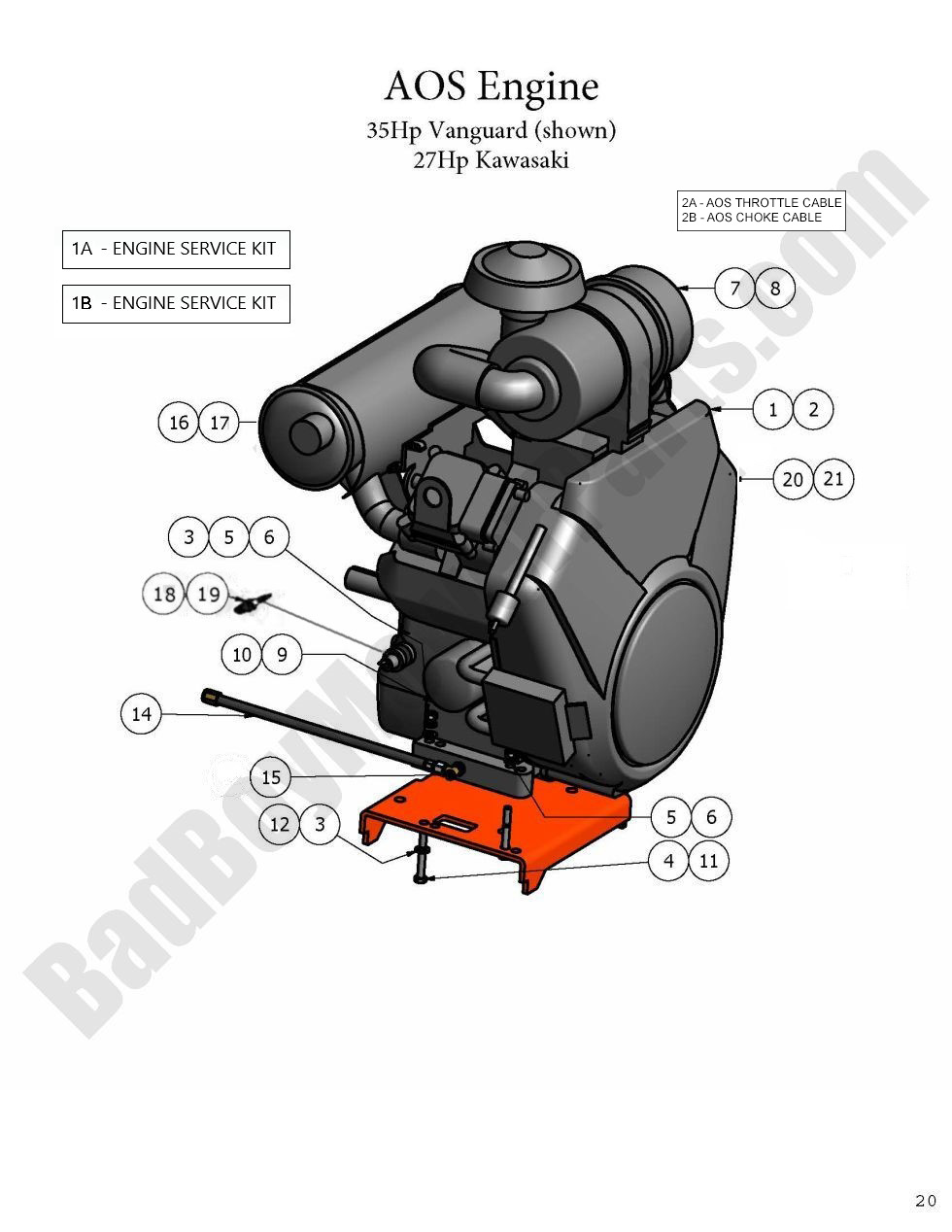

2009 AOS - Engine

2009 AOS - Engine

The 2009 AOS Engine is the heart of your mower, and keeping it in top shape requires high-quality Bad Boy Mower Parts. At BadBoyMowerParts.com, we provide durable engine components, from air filters to fuel pumps, ensuring your mower runs smoothly. Our Bad Boy Mower Part diagrams help you locate the exact Bad Boy Lawn Mower Parts you need for repairs and maintenance. A properly maintained engine extends your mower’s lifespan, preventing costly breakdowns. Shopping for Bad Boy Parts Online allows you to quickly find and order genuine replacements, avoiding unnecessary delays. Plus, we offer Free Shipping On Orders Over $100, making routine maintenance more affordable. Whether you need spark plugs, carburetors, or full engine rebuild kits, we have everything necessary to restore peak performance. Trust BadBoyMowerParts.com for expert guidance, top-quality parts, and fast shipping to keep your 2009 AOS mower running at its best for years to come.

Bad Boy Mower Parts Lookup

2009 AOS - Engine
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1B 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
1C 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1D 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
1 015-5405-00 015-5405-00 - 35hp Vanguard Engine
$3895.00
2A 055-8017-00 055-8017-00 - Throttle Cable (See Models Used On For Details)
$45.29
2 015-0003-00 015-0003-00 - 27hp Kawasaki Engine with Donaldson Filter
$3595.00
3 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
4 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
5 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
8 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
9 063-8018-00 063-8018-00 - Oil Filter
$21.39
10 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
11 018-5028-00 018-5028-00 - M10 X 1.5 X 60MM
$2.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
14 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
15 036-5400-00 036-5400-00 - Adaptor for 35/31hp Briggs Oil Drain
$33.16
16 015-0016-00 015-0016-00 - 27 Kawasaki Muffler (See Models Used On For Details)
$549.99
17 015-5406-00 015-5406-00 - Exhaust 35hp Vanguard (See Models Used On For Details)
$366.00
18 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
19 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
20 086-2004-00 086-2004-00 - Wiring Harness - 27hp Kawasaki
$419.99
