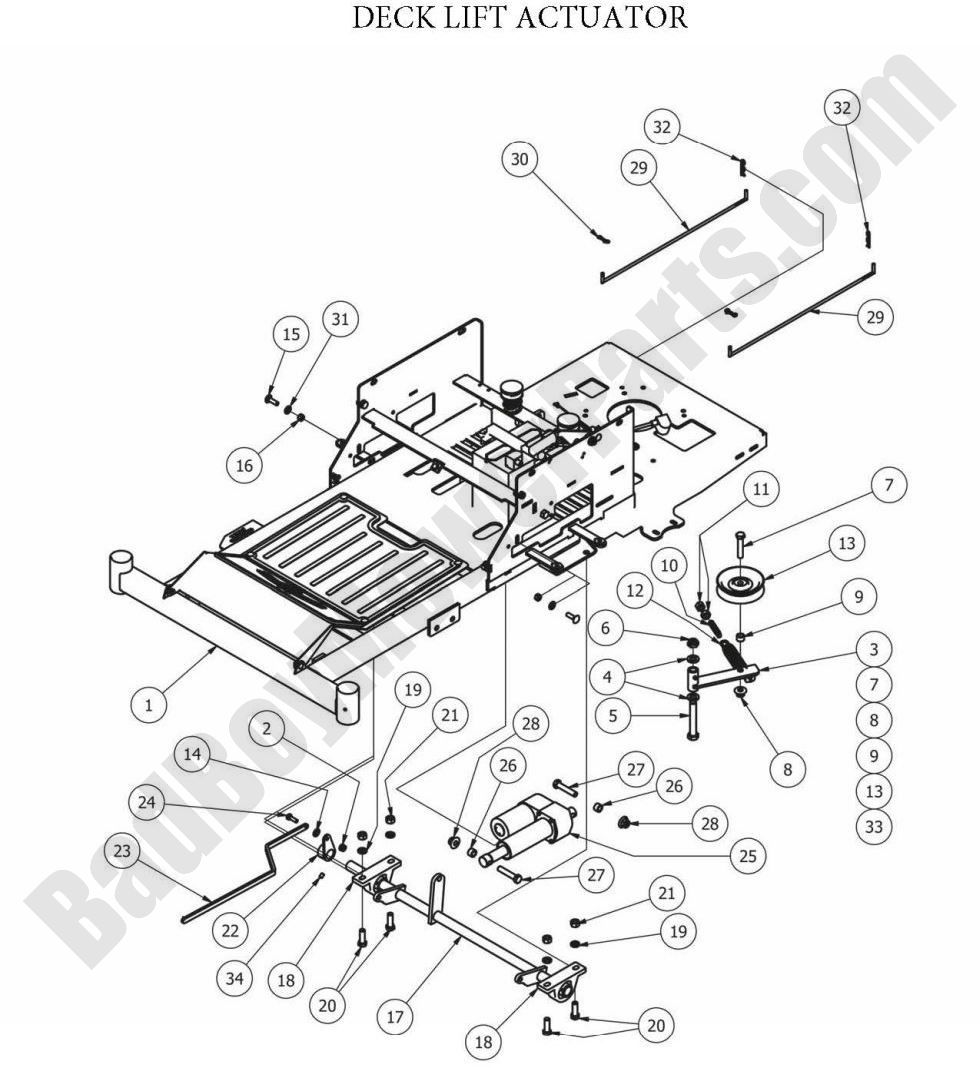

2013 CZT - Actuator

2013 CZT - Actuator

The 2013 CZT Actuator is a critical component for controlling various mower functions, ensuring smooth operation and precision adjustments. If your actuator needs replacement, BadBoyMowerParts.com offers a full selection of Bad Boy Mower Parts to restore your mower’s efficiency. Our Bad Boy Mower Part diagrams help you locate the exact actuator model and related components for a hassle-free repair. Investing in genuine Bad Boy Lawn Mower Parts guarantees long-lasting durability and peak performance. Finding Bad Boy Parts Online has never been more convenient, with our well-organized catalog allowing quick and easy ordering. Plus, take advantage of Free Shipping On Orders Over $100, making it cost-effective to replace and maintain essential parts. Don’t let a faulty actuator slow you down—shop with us today and get your 2013 CZT Actuator working like new in no time.

Bad Boy Mower Parts Lookup

2013 CZT - Actuator
  Position Number SKU Product Title Price
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
4 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
18 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 035-7033-00 035-7033-00 - Actuator
$408.75
29 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
30 044-2004-00 044-2004-00 - Bow Pin
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
33 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
