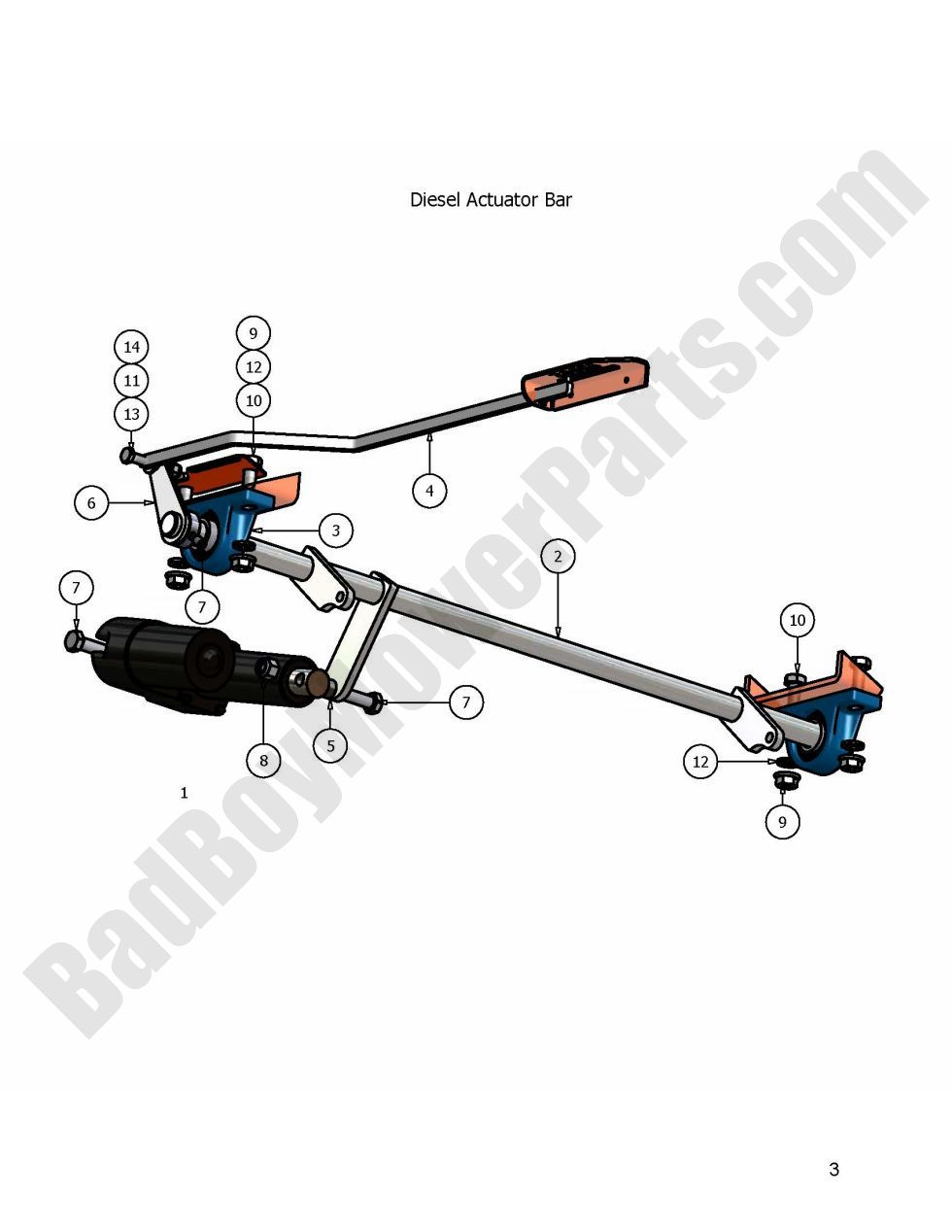

2007 Diesel - Actuator Bar

2007 Diesel - Actuator Bar

When it comes to replacing or upgrading the Actuator Bar on your 2007 Diesel, look no further than BadBoyMowerParts.com. We offer a full range of Bad Boy Mower Parts to ensure that your mower continues to operate at its peak performance. Our detailed Bad Boy Mower Part diagrams make it easy to locate and select the correct Bad Boy Lawn Mower Parts for your model, including this essential actuator bar. Whether you're doing a repair or routine maintenance, our online store offers a convenient shopping experience with access to all the parts you need. Plus, enjoy the benefit of Free Shipping On Orders Over $100 on every purchase. For all your Bad Boy Parts Online, visit us today and keep your 2007 Diesel mower working like a dream. We’re committed to providing the highest-quality parts with fast, reliable service.

Bad Boy Mower Parts Lookup

2007 Diesel - Actuator Bar
  Position Number SKU Product Title Price
1 035-7033-00 035-7033-00 - Actuator
$408.75
3 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
4 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
6 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
9 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
14 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
