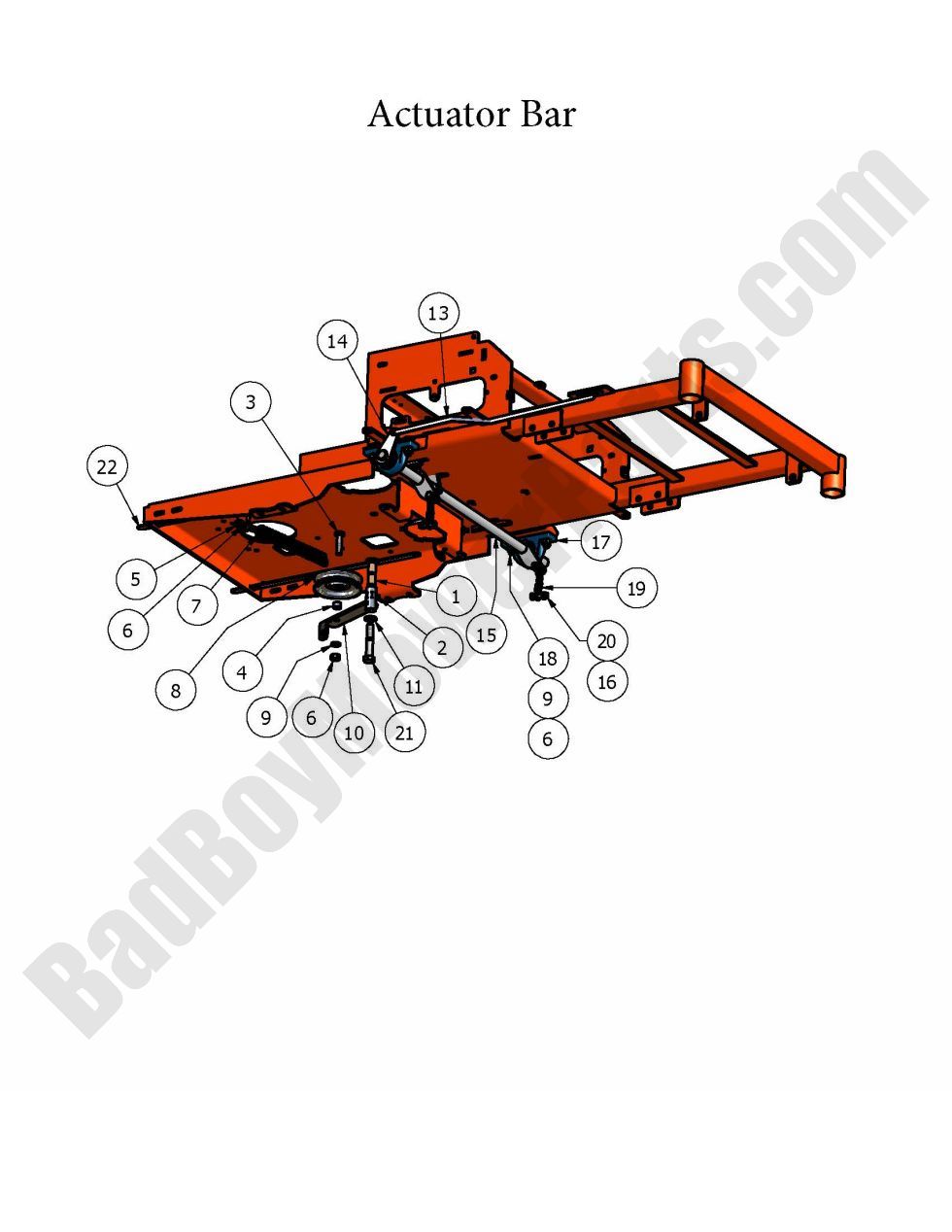

2007 ZT - Actuator Bar

2007 ZT - Actuator Bar

The 2007 ZT Actuator Bar plays a key role in the functioning of your mower's transmission. BadBoyMowerParts.com offers a variety of Bad Boy Mower Parts, including the actuator bar, to keep your mower running smoothly. The website features detailed Bad Boy Mower Part diagrams to assist you in locating the exact parts needed for your mower. Whether you're experiencing issues with your actuator bar or simply performing regular maintenance, you'll find all the necessary Bad Boy Lawn Mower Parts to get the job done. With the convenience of shopping Bad Boy Parts Online, you can quickly order the part you need. Additionally, you can enjoy Free Shipping On Orders Over $100, making it easier to keep your 2007 ZT in top working condition.

Bad Boy Mower Parts Lookup

2007 ZT - Actuator Bar
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
2 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
3 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
4 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
5 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
6 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
7 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
8 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
9 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
10 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
15 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
18 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
19 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
20 031-0052-00 031-0052-00 - 2007-2011 ZT/CZT Transaxle Neutral Lever
$11.34
21 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
