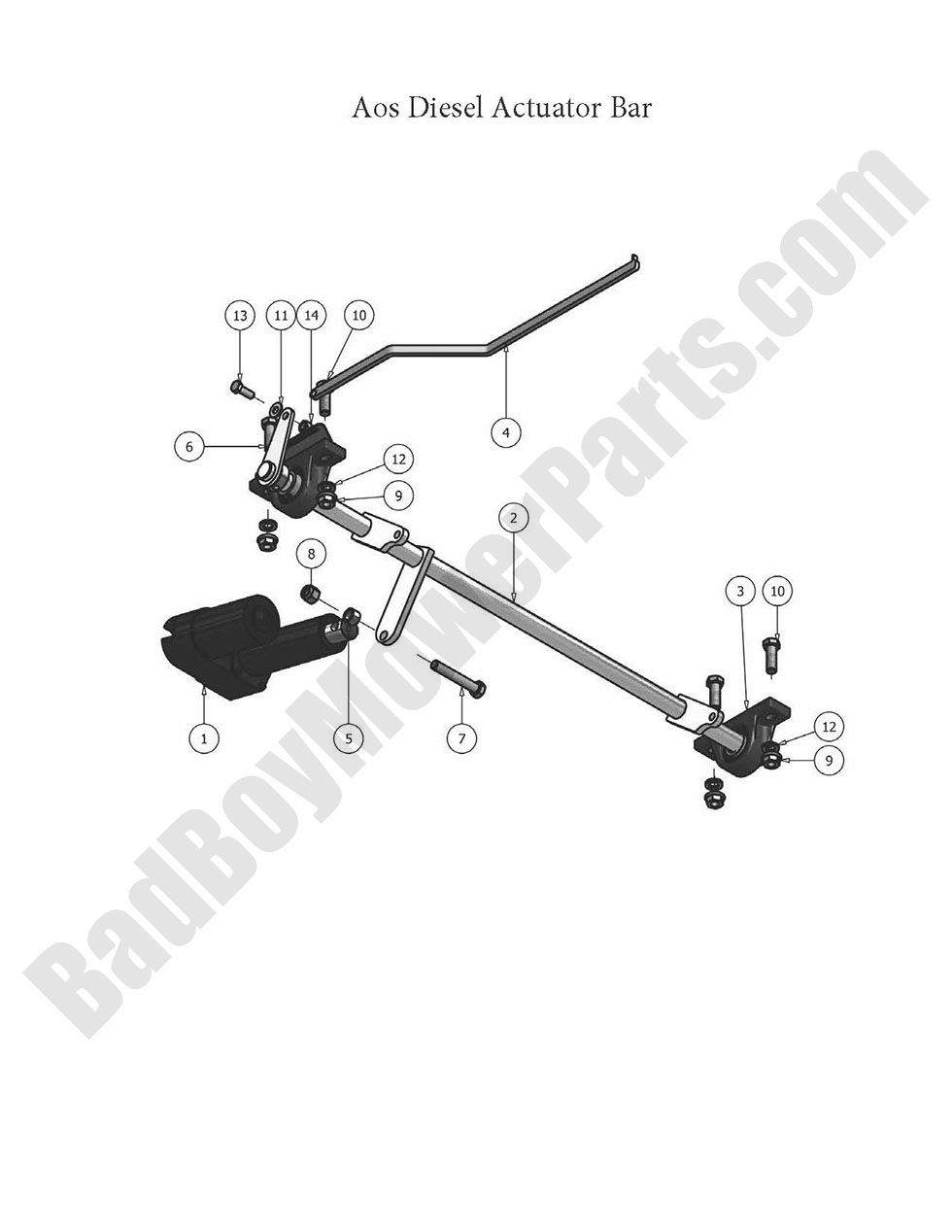

Click Image to Change Diagram
The 2010 Compact Diesel Actuator Bar plays a crucial role in the mower's deck height adjustment, ensuring precise and efficient cutting. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including actuator bars, control rods, brackets, and mounting hardware for durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements built to last. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct actuator bar components for seamless installation. Routine maintenance prevents mechanical failures, enhances cutting accuracy, and extends the lifespan of your mower. We also stock Bad Boy Parts Online, making ordering actuator bar components easy and efficient. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Compact Diesel Actuator Bar is now more cost-effective. Order today to ensure smooth deck height adjustments, precision mowing, and long-term durability for your mower, keeping it performing at its best.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 035-7033-00 | 035-7033-00 - Actuator |
$408.75
|
||
3 | 017-7008-00 | 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details) |
$21.29
|
||
4 | 028-5203-00 | 028-5203-00 - Height Indicator (See Models Used On For Detail) |
$28.39
|
||
5 | 019-5702-00 | 019-5702-00 - 1/2 SAE Flat Washer GR 8 |
$2.99
|
||
6 | 031-7000-00 | 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details) |
$11.29
|
||
7 | 018-6036-00 | 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc |
$2.99
|
||
8 | 013-6037-00 | 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc |
$2.99
|
||
9 | 013-5300-00 | 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations |
$2.99
|
||
10 | 018-5006-00 | 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details) |
$2.99
|
||
11 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
12 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
13 | 018-6049-00 | 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc |
$2.99
|
||
14 | 013-5041-00 | 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc |
$2.99
|
