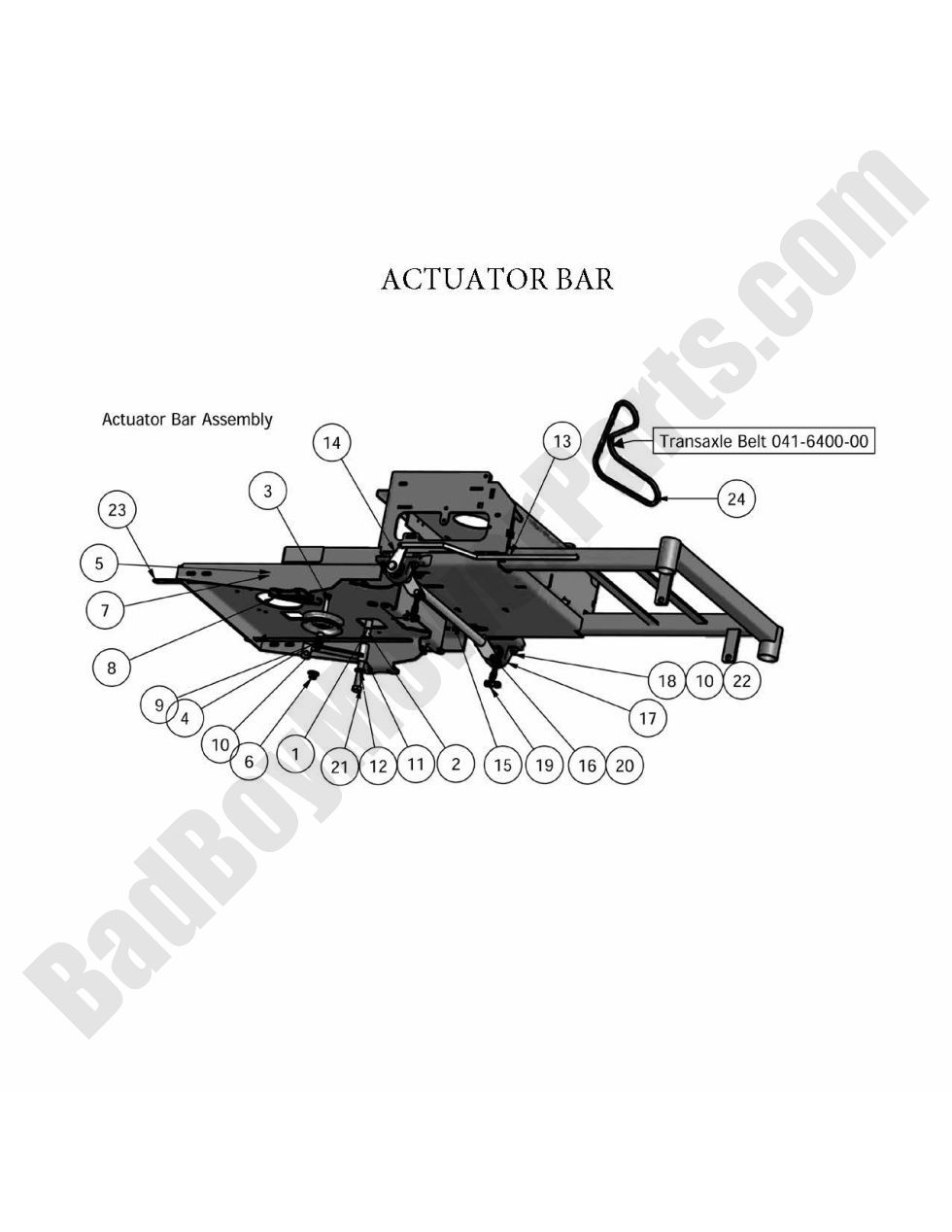

2010 CZT - Actuator Bar

2010 CZT - Actuator Bar

The 2010 CZT Actuator Bar plays a crucial role in deck height adjustments, providing ease of use and precise cutting control. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including actuator bars, linkages, mounting brackets, and height control mechanisms for durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed to optimize deck functionality. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct actuator bar components for seamless installation. Routine maintenance prevents wear, ensures accurate deck positioning, and extends mower lifespan. We also stock Bad Boy Parts Online, making it simple to order actuator bar components when needed. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 CZT Actuator Bar is now more cost-effective. Order today to ensure smooth deck height adjustments, precision mowing, and improved overall efficiency in all mowing conditions.

Bad Boy Mower Parts Lookup

2010 CZT - Actuator Bar
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
2 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
3 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
4 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
5 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
10 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
11 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
15 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
18 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
19 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
21 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
22 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
23 031-0052-00 031-0052-00 - 2007-2011 ZT/CZT Transaxle Neutral Lever
$11.34
24 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
