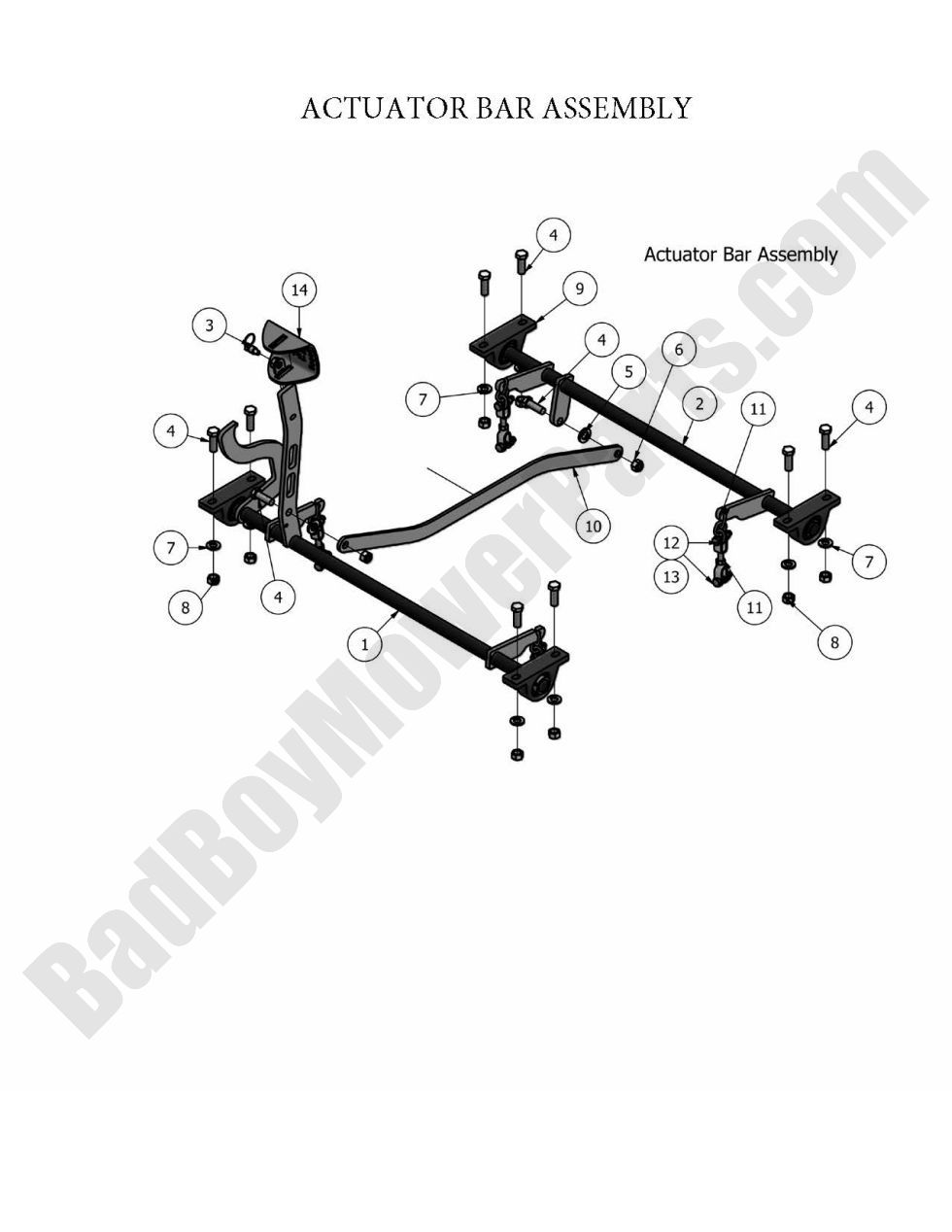

2010 Outlaw & Outlaw Extreme - Actuator Bar

2010 Outlaw & Outlaw Extreme - Actuator Bar

The 2010 Outlaw & Outlaw Extreme Actuator Bar is essential for smooth and precise deck height adjustments, ensuring even mowing on all types of terrain. At BadBoyMowerParts.com, we offer top-quality Bad Boy Mower Parts, including actuator bars, adjustment levers, mounting brackets, and hardware for maximum durability. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements designed for reliability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the exact actuator bar components for seamless installation. Regular maintenance prevents misalignment, ensures smooth operation, and extends the lifespan of the actuator system. With access to Bad Boy Parts Online, ordering actuator bar components is quick and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 Outlaw & Outlaw Extreme Actuator Bar is now more budget-friendly. Order today to keep your mower’s deck adjustment system functioning effortlessly for a perfectly even cut.

Bad Boy Mower Parts Lookup

2010 Outlaw & Outlaw Extreme - Actuator Bar
  Position Number SKU Product Title Price
2 028-6020-00 028-6020-00 - Rear Actuator Bar Assy (See Models Used On For Detail)
$106.48
3 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
4 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
6 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
9 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
10 028-6050-00 028-6050-00 - Outlaw Deck Linkage Rod
$28.39
11 047-6047-00 047-6047-00 - 3 Chain (See Models Used On For Details)
$2.99
11 047-2000-00 047-2000-00 - 2 - Link Adjustable Deck Hanger - Outlaw Models (obsolete)
use part #046-6048-98
$32.09
12 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
13 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
14 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
