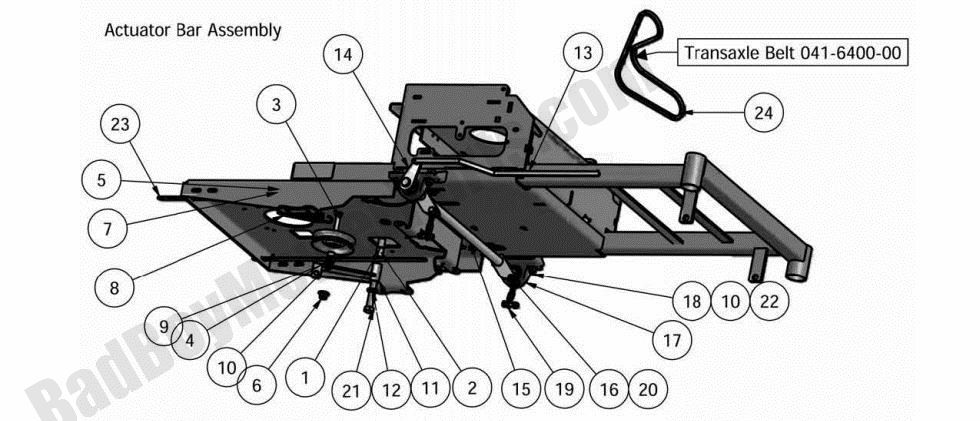

2011 ZT - Actuator Bar

2011 ZT - Actuator Bar

The 2011 ZT Actuator Bar plays a crucial role in your mower’s deck lift system, ensuring smooth and precise adjustments. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your mower operating flawlessly. Our detailed Bad Boy Mower Part diagrams help you quickly identify the correct actuator bar and related components for easy installation. Using genuine Bad Boy Lawn Mower Parts ensures long-lasting durability and reliable performance. Whether you need a replacement actuator bar, mounting hardware, or other essential deck lift components, you can find all the Bad Boy Parts Online with us. Shopping online simplifies the process, eliminating the hassle of searching multiple stores for the right part. Plus, with Free Shipping On Orders Over $100, maintaining your ZT actuator system is more affordable than ever. Choose BadBoyMowerParts.com for the best selection of actuator bars and other mower essentials, ensuring your machine operates at peak efficiency with every use.

Bad Boy Mower Parts Lookup

2011 ZT - Actuator Bar
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
2 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
3 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
4 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
5 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
9 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
10 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
11 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
15 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
17 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
18 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
19 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
21 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
22 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
23 031-0052-00 031-0052-00 - 2007-2011 ZT/CZT Transaxle Neutral Lever
$11.34
24 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
