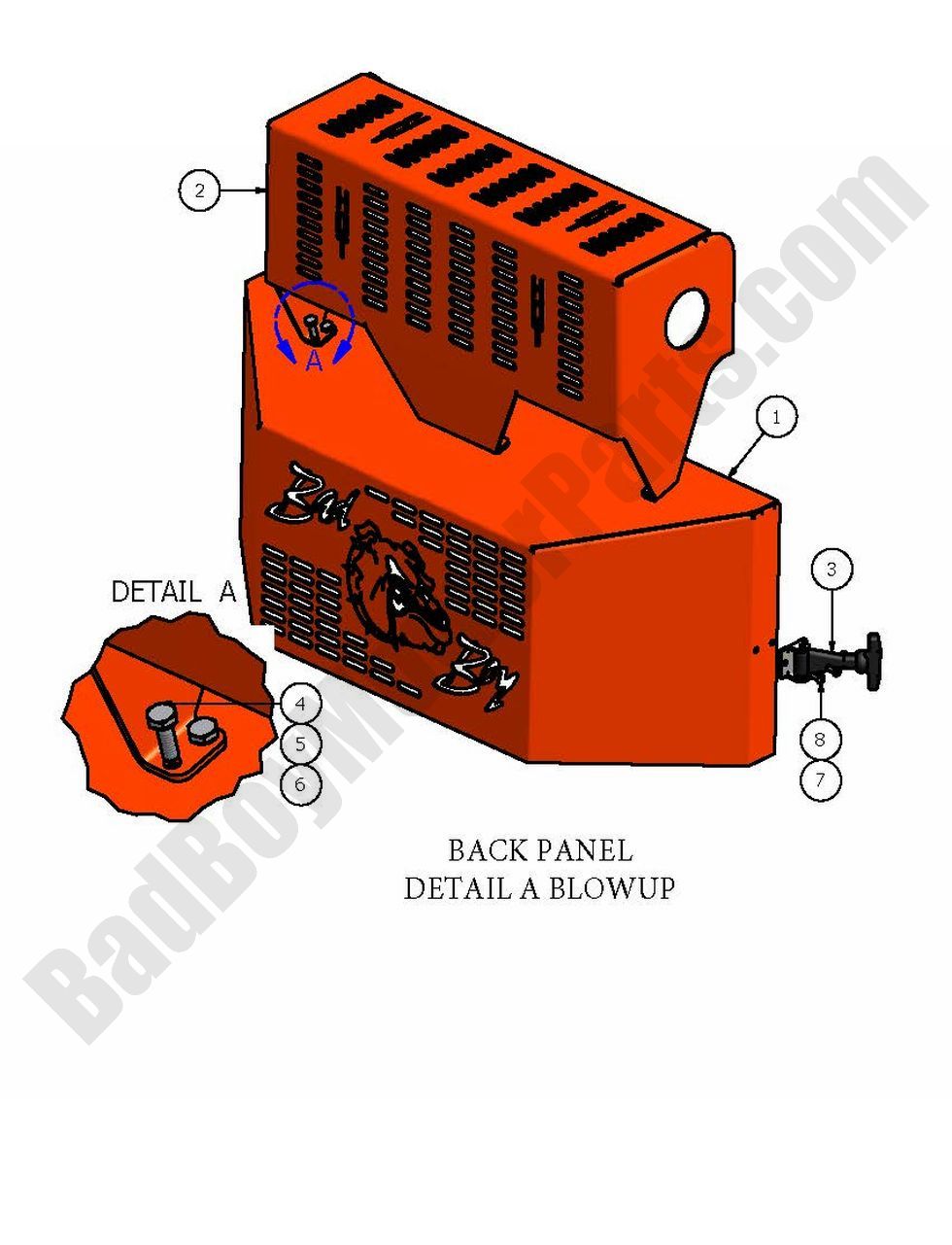

2007 AOS - Back Panel Detail A

2007 AOS - Back Panel Detail A

For a more detailed approach to repairs, the 2007 AOS Back Panel Detail A offers a breakdown of this vital component. BadBoyMowerParts.com provides comprehensive Bad Boy Mower Part diagrams, allowing you to understand the specific parts and functions of the 2007 AOS Back Panel Detail A. This ensures you order the correct Bad Boy Lawn Mower Parts for precise repairs. Whether it’s bolts, fasteners, or any other accessory for the back panel, we have everything you need. By shopping Bad Boy Parts Online, you can easily find and order parts directly from our website. Plus, enjoy Free Shipping On Orders Over $100 for even greater savings. For superior service and top-notch parts, BadBoyMowerParts.com is your one-stop shop for the 2007 AOS Back Panel Detail A, keeping your mower in top condition for years of reliable use.

Bad Boy Mower Parts Lookup

2007 AOS - Back Panel Detail A
  Position Number SKU Product Title Price

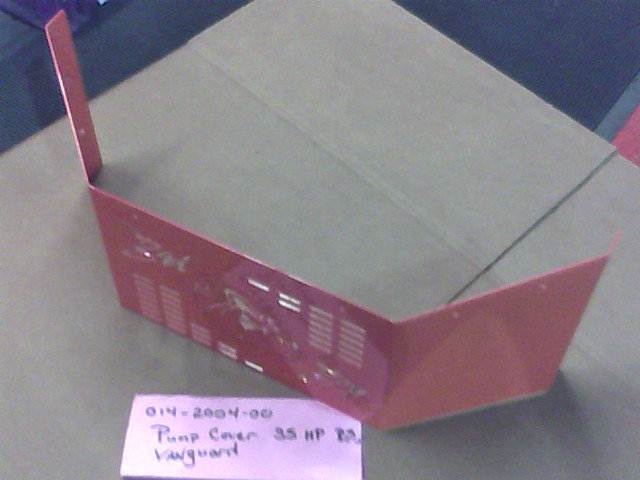

1 014-2004-00 014-2004-00 - Pump cover 35hp-Vanguard
$139.99

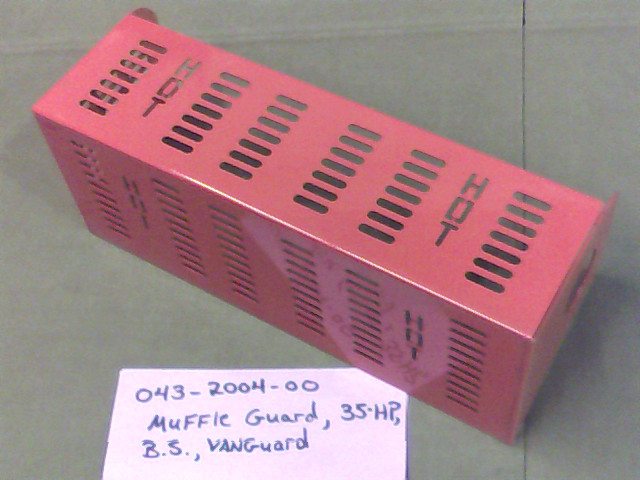

2 043-2004-00 043-2004-00 - 2007-2010 Muffler Guard (35)
$33.81

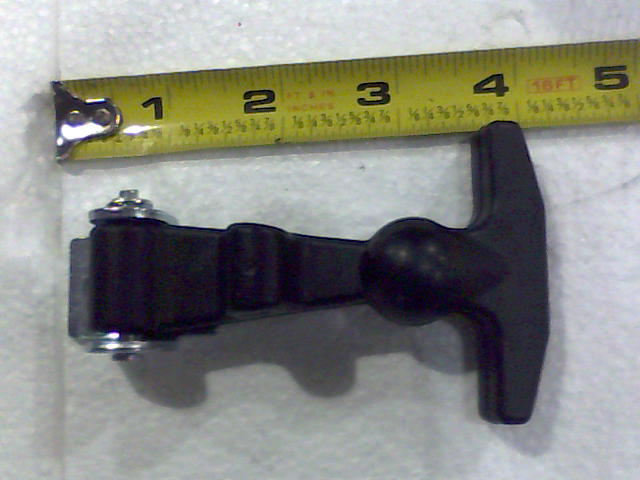

3 052-5020-00 052-5020-00 - Rubber Pump Cover Latch 2011 and below-Diesel and AOS
$17.11
4 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
5 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
6 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
8 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
