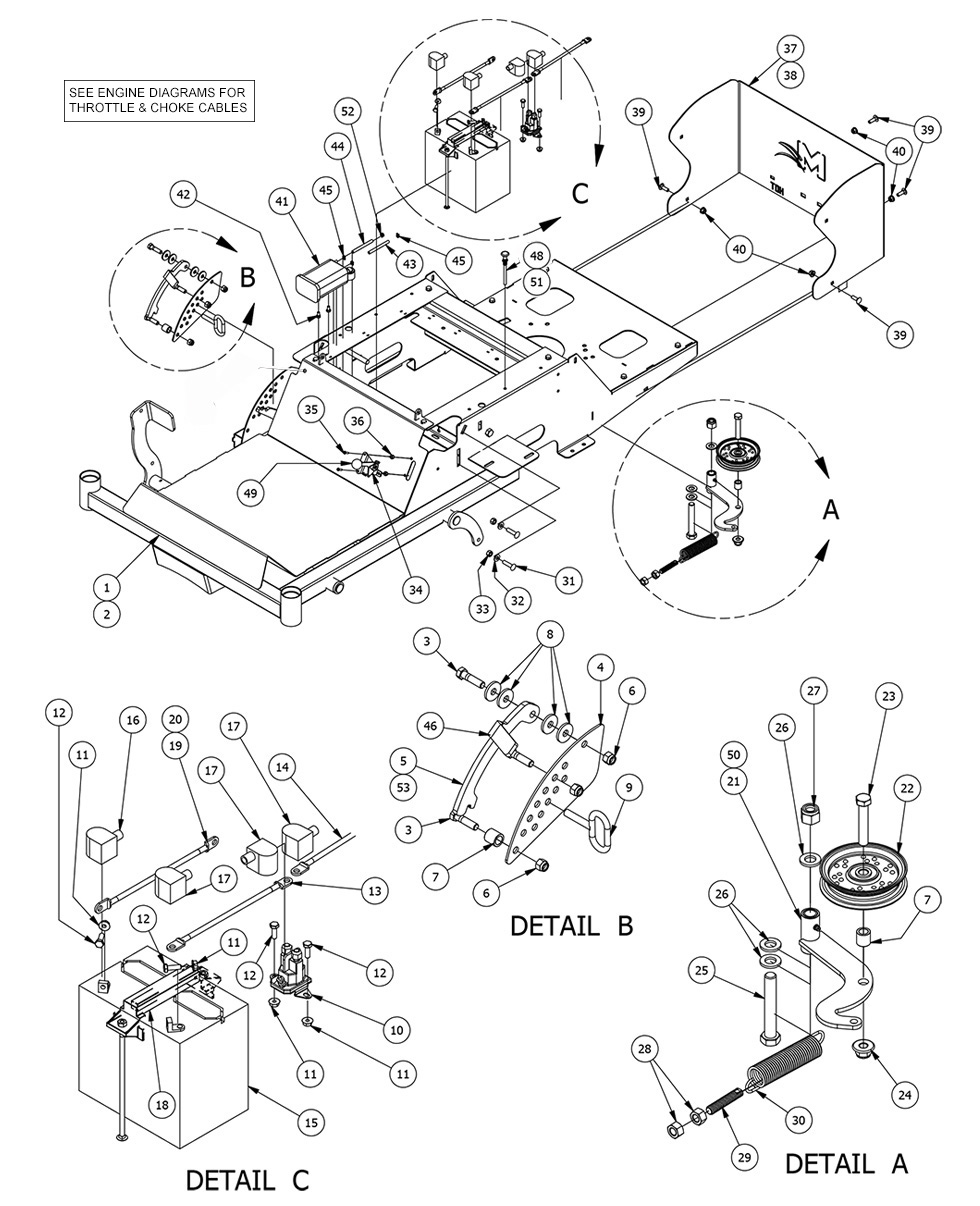

2016 MZ Magnum - Frame Assembly

2016 MZ Magnum - Frame Assembly

The 2016 MZ Magnum Frame Assembly is a foundational structure designed to provide stability for your mower. Constructed with high-strength materials and precision welding, this assembly offers a secure platform supporting all components. Its robust design ensures the machine withstands regular stresses while delivering consistent performance. Engineered for easy assembly and lasting reliability, the frame maintains mower alignment and safety. Every element is tested to meet industry standards and assure peace of mind for professionals and homeowners. Customers can access further assembly guides and technical schematics by reviewing Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 on our website. For comprehensive product information and expert installation advice, visit BadBoyMowerParts.com. Invest in the Magnum Frame Assembly to ensure a solid, dependable foundation for your mowing operations. Strengthen your mowing setup by choosing this frame for unparalleled stability and enduring performance in every task today.

Bad Boy Mower Parts Lookup

2016 MZ Magnum - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84

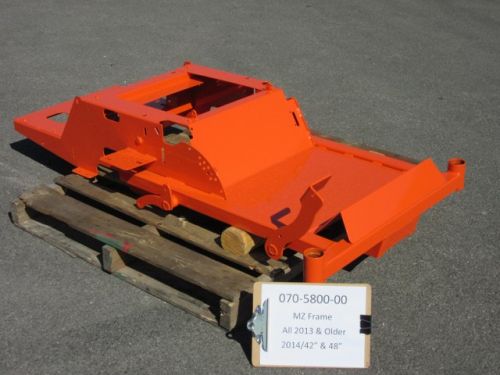

1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1461.53

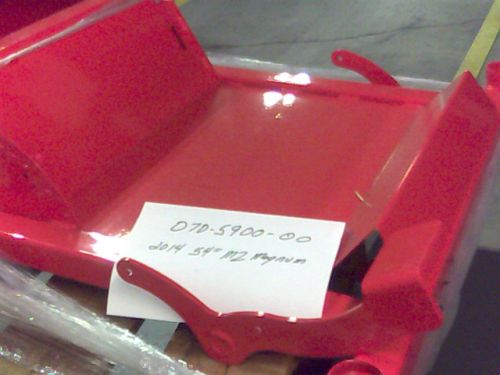

2 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1461.53
3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
4 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
7 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
8 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
9 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
10 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
11 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 064-0025-00 064-0025-00 - 10" Red Battery Cable
$13.90
14 064-0050-00 064-0050-00 - 62" Red Battery Cable
$21.39
16 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
17 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
18 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
19 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
20 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
21 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
22 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
24 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
28 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
29A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
29 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
30 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
31 018-0001-00 018-0001-00 - 3/8-16 X 1-1/2 Short Neck Carriage Bolt
$2.99
32 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
33 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
35 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
36 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
37 026-0110-00 026-0110-00 - MZ Rear Plate (27BS/26KA/22KA)
$88.99
39 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99

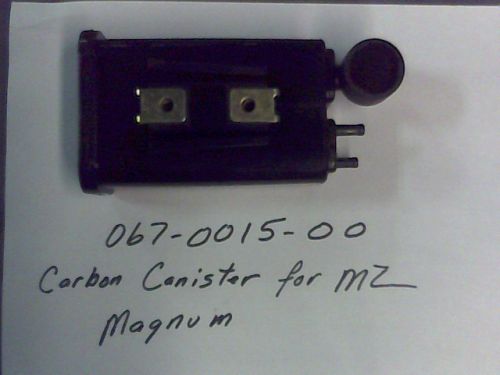

41 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78

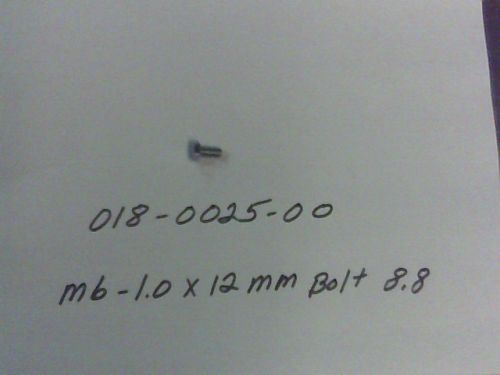

42 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
43 051-2025-00 051-2025-00 - 2015-2016 MZ/MZ Magnum 3/16" EPA Air Line 61"
$14.19

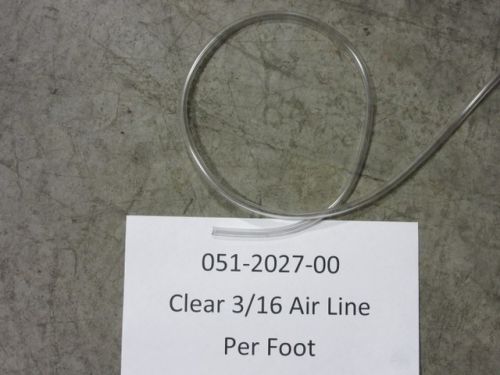

44 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
45 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
46 014-2051-00 014-2051-00 - Deck Height Handle Grip MZ
$2.99
49 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
50 039-7000-98 039-7000-98 - MZ Pump Idler Assembly (obsolete)
use part #039-7000-00
$38.32
52 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29

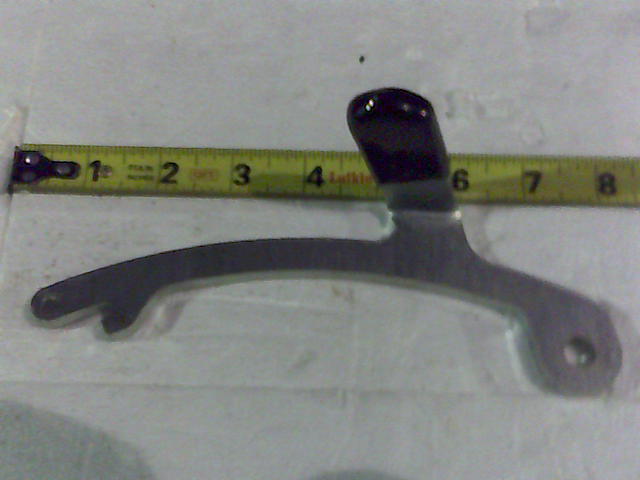

53 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
