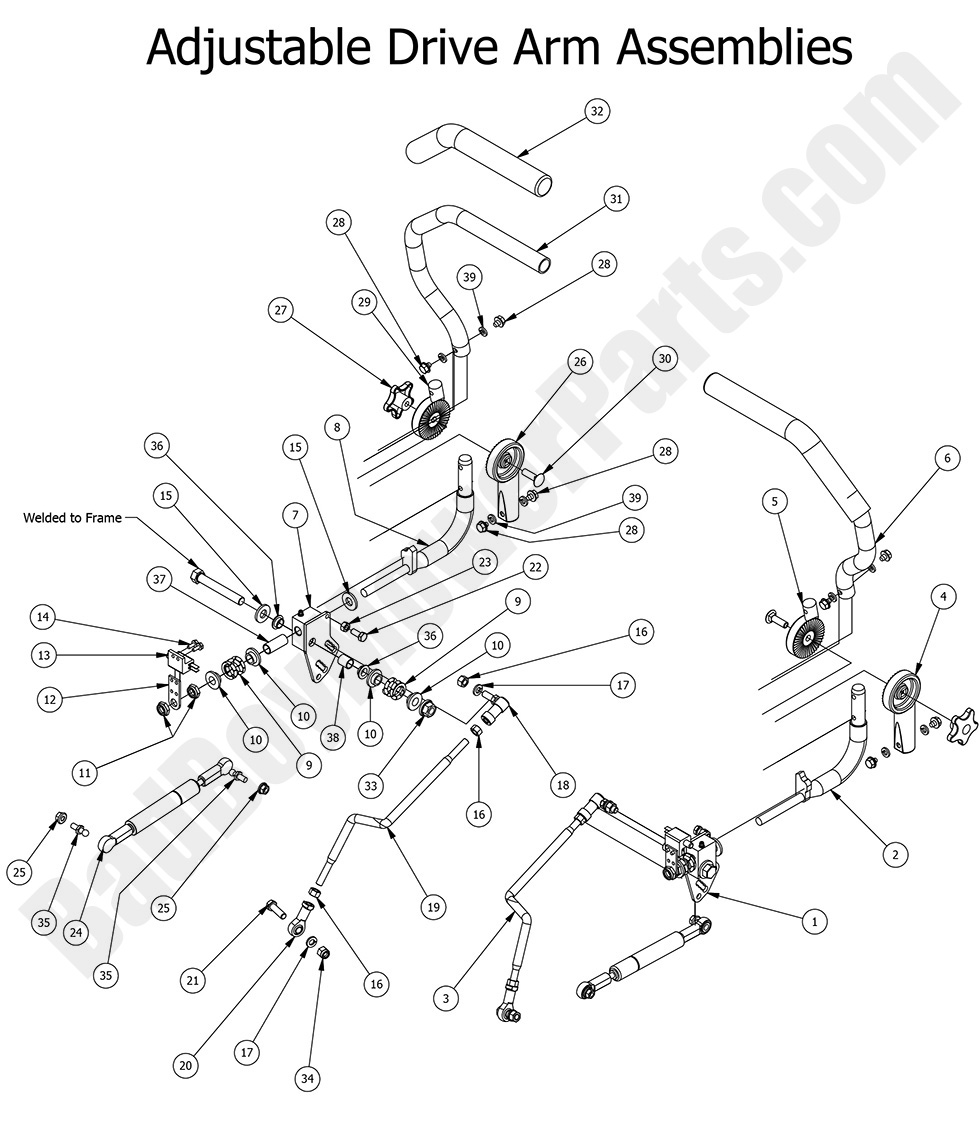

2016 Compact Outlaw - Adjustable Drive Arms

2016 Compact Outlaw - Adjustable Drive Arms

Upgrade the steering of your 2016 Compact Outlaw with Adjustable Drive Arms designed for precise control and enhanced maneuverability. Constructed from robust materials, these arms feature adjustability to suit various operating conditions and terrain challenges. Their design ensures optimal power transfer between the engine and deck while reducing wear and improving performance. Ideal for replacing worn components, these drive arms provide a customizable solution that boosts safety and efficiency. With simple installation and durable build, they offer reliable means to fine-tune your mower’s drive system and steering response. Enjoy improved control and a smoother ride by integrating these high-quality drive arms into your machine. Visit BadBoyMowerParts.com to explore our selection of genuine parts and expert support. Enhance your mower’s performance with Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 for complete technical assistance and reliable components. Upgrade your drive system for superior precision.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw - Adjustable Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
2 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
3 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
4 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
5 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
6 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
7 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
8 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
9 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
10 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
11 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
12 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
13 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
14 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
15 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
16 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
18 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
19 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
20 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
21 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
22 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
23 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
24 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
25 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
27 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
28 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
29 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
30 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
32 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
33 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
34 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
35 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
36 032-5000-00 032-5000-00 - 1/2" Oil Impregnated Bushing
$3.78
37 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
38 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
39 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
