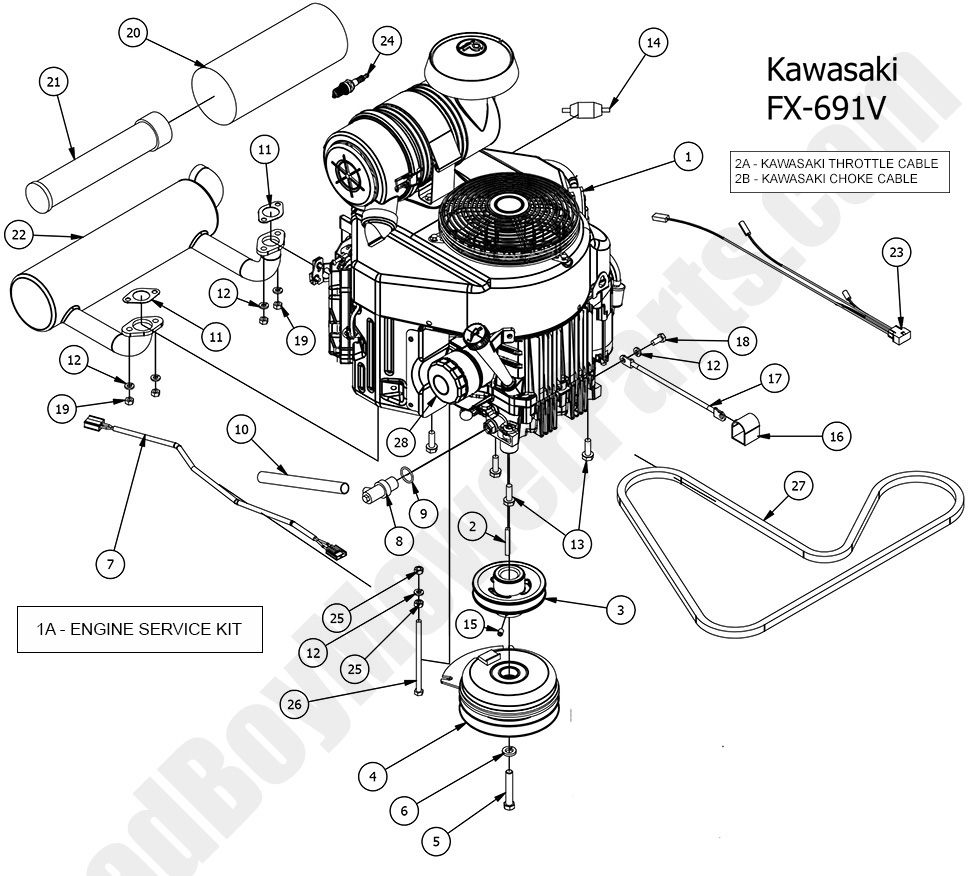

2016 Compact Outlaw - Engine - Kawasaki FX691

2016 Compact Outlaw - Engine - Kawasaki FX691

Experience robust performance with the 2016 Compact Outlaw Engine - Kawasaki FX691, a motor engineered for consistent power and efficiency. This engine is designed to provide smooth acceleration and reliable operation, making it ideal for residential and light commercial mowing. Built with advanced technology and quality materials, the FX691 delivers excellent fuel economy and low maintenance. Its design ensures optimal combustion and steady power output, enabling your mower to tackle challenging terrain with ease. The engine’s compact form and refined construction contribute to a quieter, efficient operation. Every component is tested to meet strict quality standards, ensuring long-lasting performance and dependable service. Visit BadBoyMowerParts.com for replacement parts and expert support. Enhance your mower’s engine performance with Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 for complete technical assistance and genuine components. Upgrade your engine for efficiency and power today immediately.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw - Engine - Kawasaki FX691
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
8 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$42.58
9 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasaki
$7.28
10 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
17 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
18 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
19 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
21 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
22 015-0012-00 015-0012-00 - Exhaust-Kawasaki FS/FR (See Models Used On For Details)
$209.99
23 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
24 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
25 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
26 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
27 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
28 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
