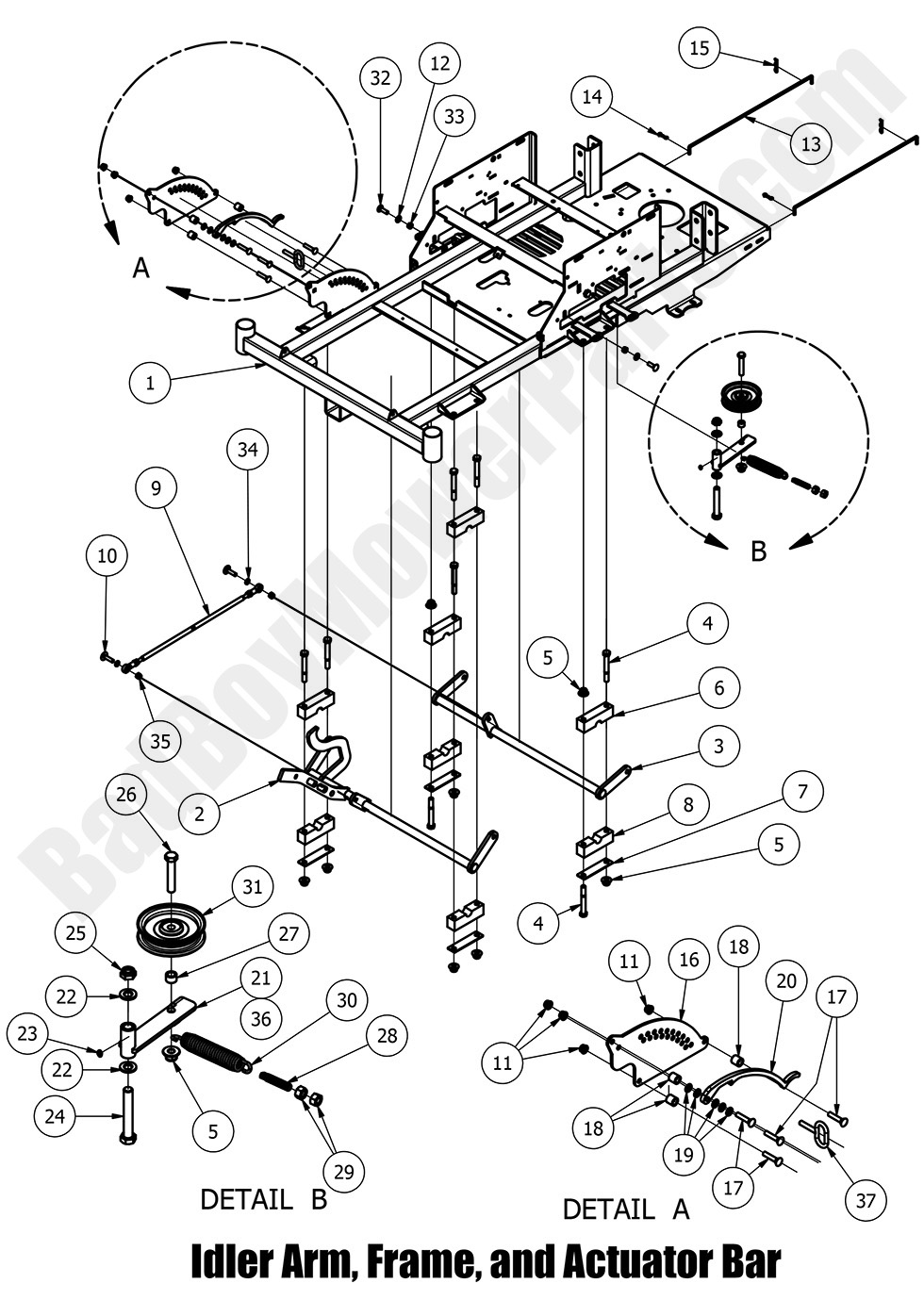

2016 Compact Outlaw - Idler Arm, Frame & Actuator

2016 Compact Outlaw - Idler Arm, Frame & Actuator

Optimize the performance of your 2016 Compact Outlaw with the Idler Arm, Frame & Actuator assembly, engineered for reliable deck control and durability. This assembly maintains proper alignment and smooth deck operation, ensuring consistent blade engagement and efficient material flow. Made from high-quality materials, the idler arm, frame, and actuator work together to reduce wear and vibration, extending your mower’s service life. Ideal for replacing worn parts or upgrading your system, this assembly offers precise adjustment and robust support under demanding conditions. Its innovative design enhances safety and overall performance during mowing. Every component is crafted and tested to meet strict quality standards for long-lasting reliability. Visit BadBoyMowerParts.com for authentic replacement parts and expert support. Enhance your mower’s functionality with Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 for full technical assistance and quality components. Upgrade your assembly for deck control now.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw - Idler Arm, Frame & Actuator
  Position Number SKU Product Title Price
1 070-5500-00 070-5500-00 - 2016 Compact Outlaw Frame
$1049.99
2 028-0005-00 028-0005-00 - Actuator Bar Front (See Models Used On For Detail)
$88.80
3 028-0006-00 028-0006-00 - Actuator Bar Rear-Compact Outlaw
$72.75
4 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
7 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
8A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
8 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
9 028-7000-00 028-7000-00 - 2016-2017 Actuator Bar Linkage Assy Compact Outlaw
$21.39
10 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
13 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
14 044-2004-00 044-2004-00 - Bow Pin
$2.99
15 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
16 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
17 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
20 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
21 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
24 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
25 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
26 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
27 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
28 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
29 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
30 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
31 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
33 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
35 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
36 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
37 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
