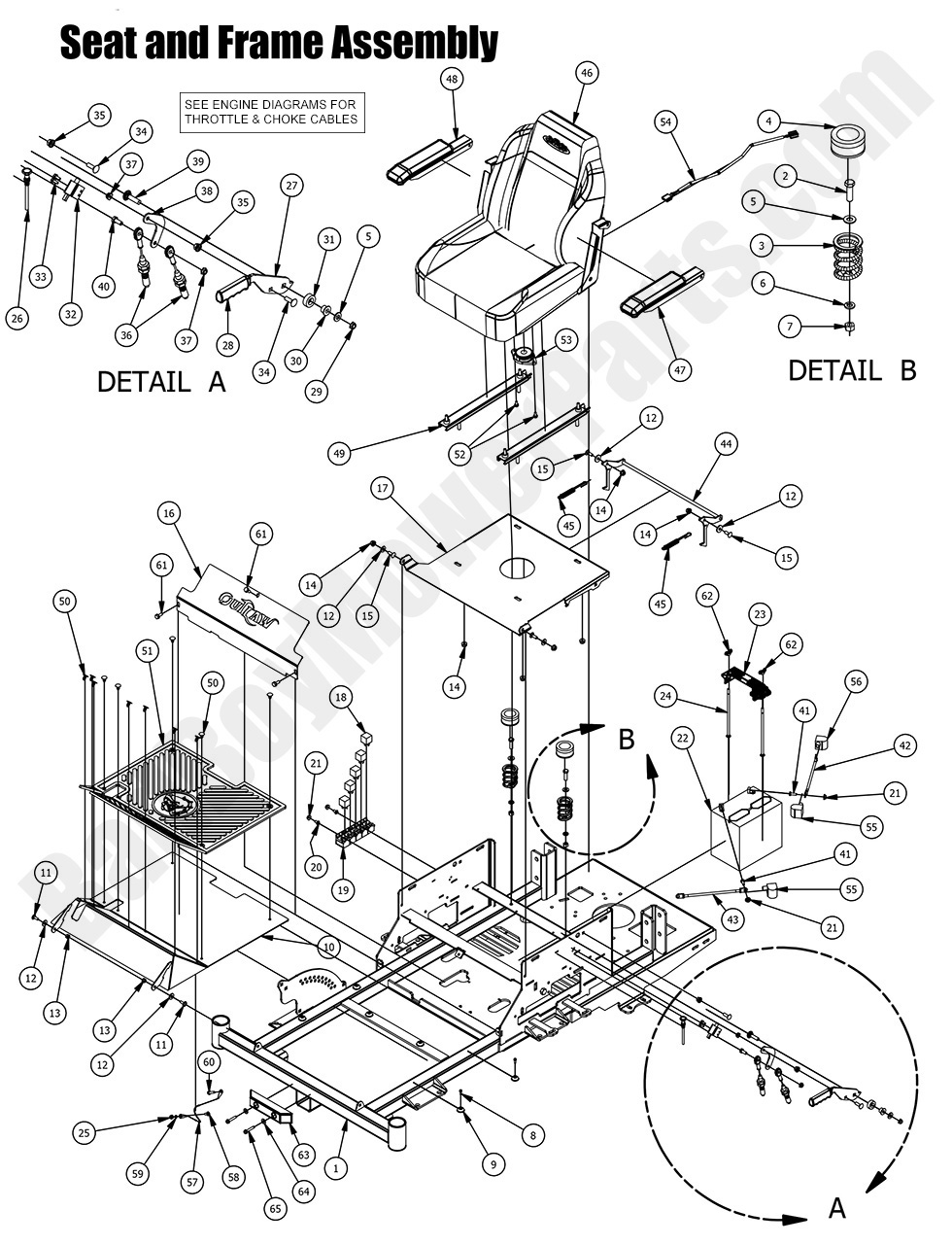

2016 Compact Outlaw - Seat & Frame Assembly

2016 Compact Outlaw - Seat & Frame Assembly

Improve operator comfort and safety with the 2016 Compact Outlaw Seat & Frame Assembly, designed for secure seating and robust support. This assembly combines a quality seat with a durable frame, engineered to provide stability and ergonomic support during long mowing sessions. Its design ensures a comfortable ride while withstanding regular use, reducing fatigue and enhancing control. Ideal for replacing worn parts or upgrading your setup, the assembly offers balanced strength and comfort. Every element is crafted and tested to meet strict quality standards for long-lasting performance and maintenance. Its seamless integration with the mower’s design contributes to safety and a better riding experience. Visit BadBoyMowerParts.com for replacement parts and expert support. Enhance your mower’s operator comfort with Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 for full technical assistance and quality components. Upgrade your seat and frame assembly now. Order yours today.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw - Seat & Frame Assembly
  Position Number SKU Product Title Price
1 070-5500-00 070-5500-00 - 2016 Compact Outlaw Frame
$1049.99
2 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
3 034-8045-00 034-8045-00 - Seat Spring
$20.49
4 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
5 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
8 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
9 029-4010-00 029-4010-00 - Button Bumper
$2.99

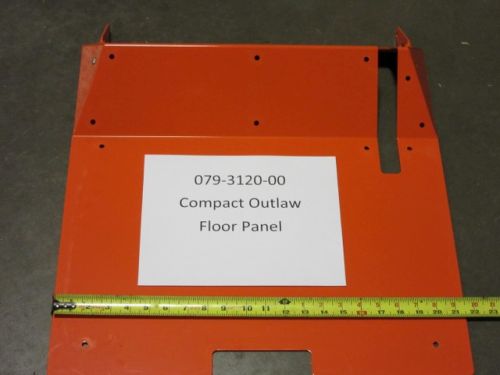

10 079-3120-00 079-3120-00 - 2016-2017 Compact Outlaw Floor Panel Assembly
$106.99
11 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
12 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
13 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
14 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99

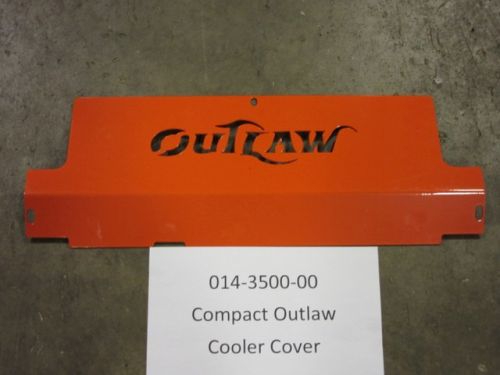

16 014-3500-00 014-3500-00 - Compact Outlaw Cooler Cover
$64.19
17 026-1016-00 026-1016-00 - Seat Plate
$102.11
18 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
19 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
20 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
23 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
24 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
25 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
27 069-1000-00 069-1000-00 - Brake Handle Cam Lever
$7.28
28 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
29 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
30 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
31 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
32 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
33 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
34 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
35 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
36 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
37 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
38 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket (See Models Used On For Details)
$18.72
39 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
40 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
41 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
42 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
43 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
44 028-0085-00 028-0085-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$26.70
45 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
46 071-5055-00 071-5055-00 - 2016-2018 Compact Outlaw Seat
$499.99

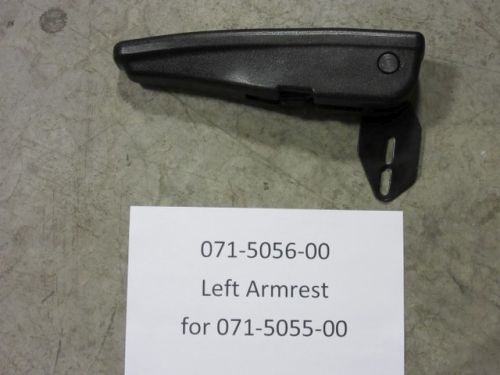

47 071-5056-00 071-5056-00 - Left Armrest w/Pad-071-5055-00
$70.97

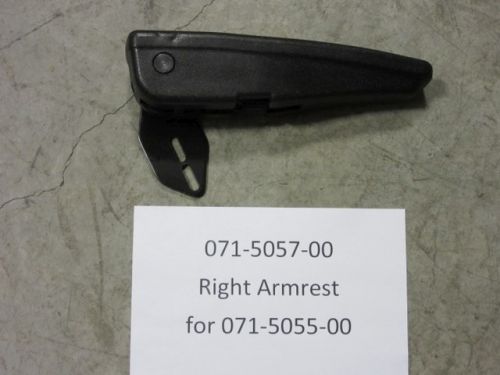

48 071-5057-00 071-5057-00 - Right Armrest w/Pad For 071-5055-00
$110.99
49 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$112.99
50 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99

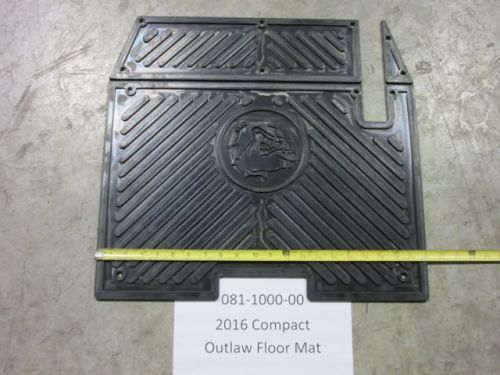

51 081-1000-00 081-1000-00 - 2016-2017 Compact Outlaw Floor Mat
$53.49
52 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
53 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
54 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
55 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
56 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
57 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
58 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
59 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
60 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
61 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
62 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
63 029-7038-00 029-7038-00 - 8 Bumper
$28.32
64 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
65 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
