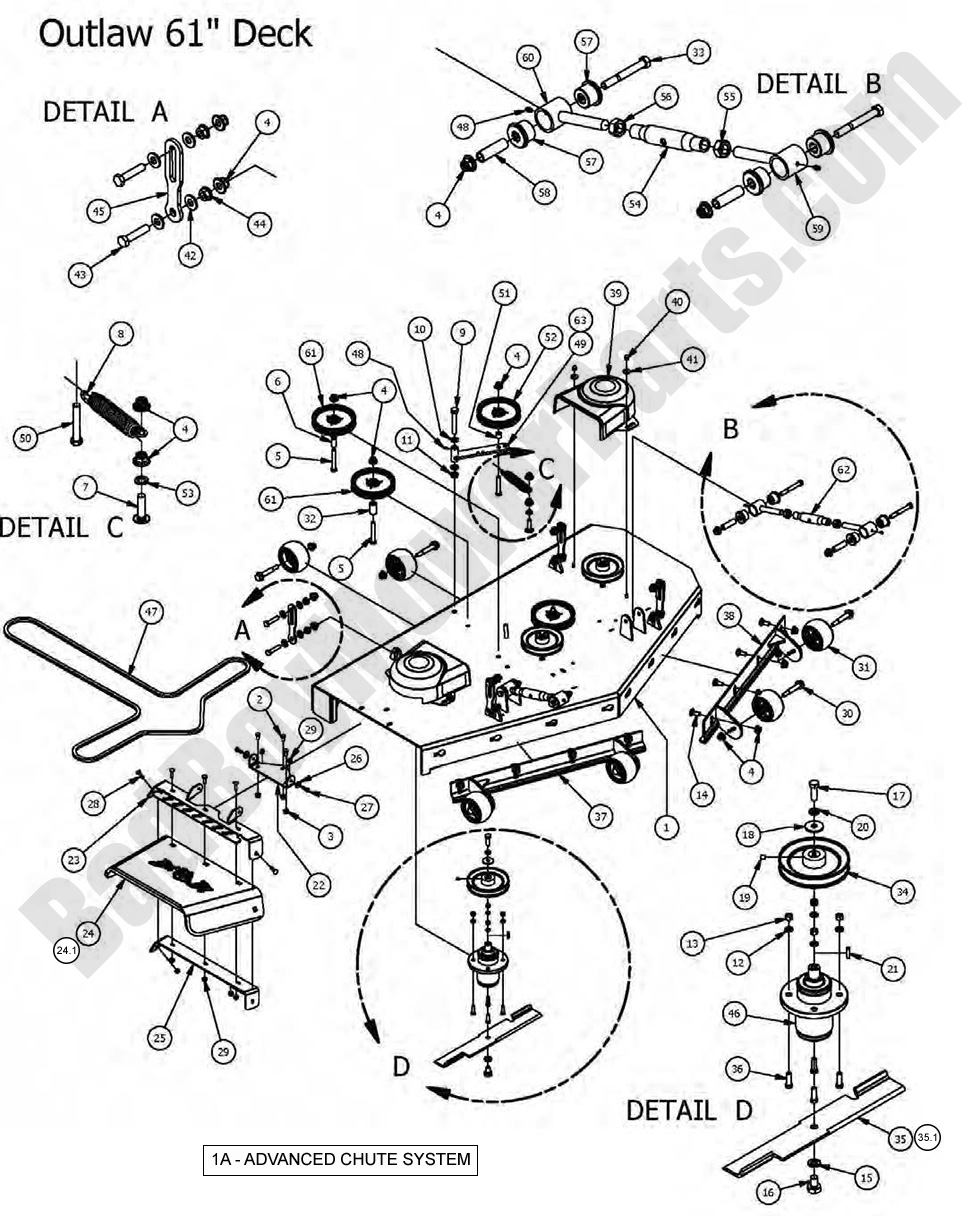

2016 Diesel 1100cc - 61" Deck Assembly

2016 Diesel 1100cc - 61" Deck Assembly

Introducing the 2016 Diesel 1100cc 61-inch Deck Assembly, a precision-engineered component designed to deliver superior cutting performance and consistent durability for heavy-duty mowing applications. This deck assembly is constructed using premium materials and advanced manufacturing techniques, ensuring uniform blade engagement and optimal cutting height across various terrains. Its robust design minimizes vibration and wear, resulting in smooth operation and extended component life. Ideal for replacing worn-out decks or upgrading your current system, this assembly enhances the overall efficiency and reliability of your diesel mower. The precise engineering guarantees a secure fit and easy integration with existing equipment, making maintenance straightforward. For complete technical support and access to authentic parts, visit our website and consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your deck assembly today to achieve flawless cutting performance and improved durability for exceptional results now indeed truly beyond expectations.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6150-00 060-6150-00 - 2015-2018 Outlaw/XP and Diesel/Compact Diesel (28hp/1100CC) 61" Deck Shell
$1199.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
22 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
23 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
24.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
34 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
35.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
35 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
36 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
37 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
38 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
39 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
40 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
41 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
44 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
45 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
46 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
47 041-0226-00 041-0226-00 - B226 Deck Belt for 61" 28hp/1100cc Diesel (Not for AOS Diesel 35hp/1500cc)
$109.99
48 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
49 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
50 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
51 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
52 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
53 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
62 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
63 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
