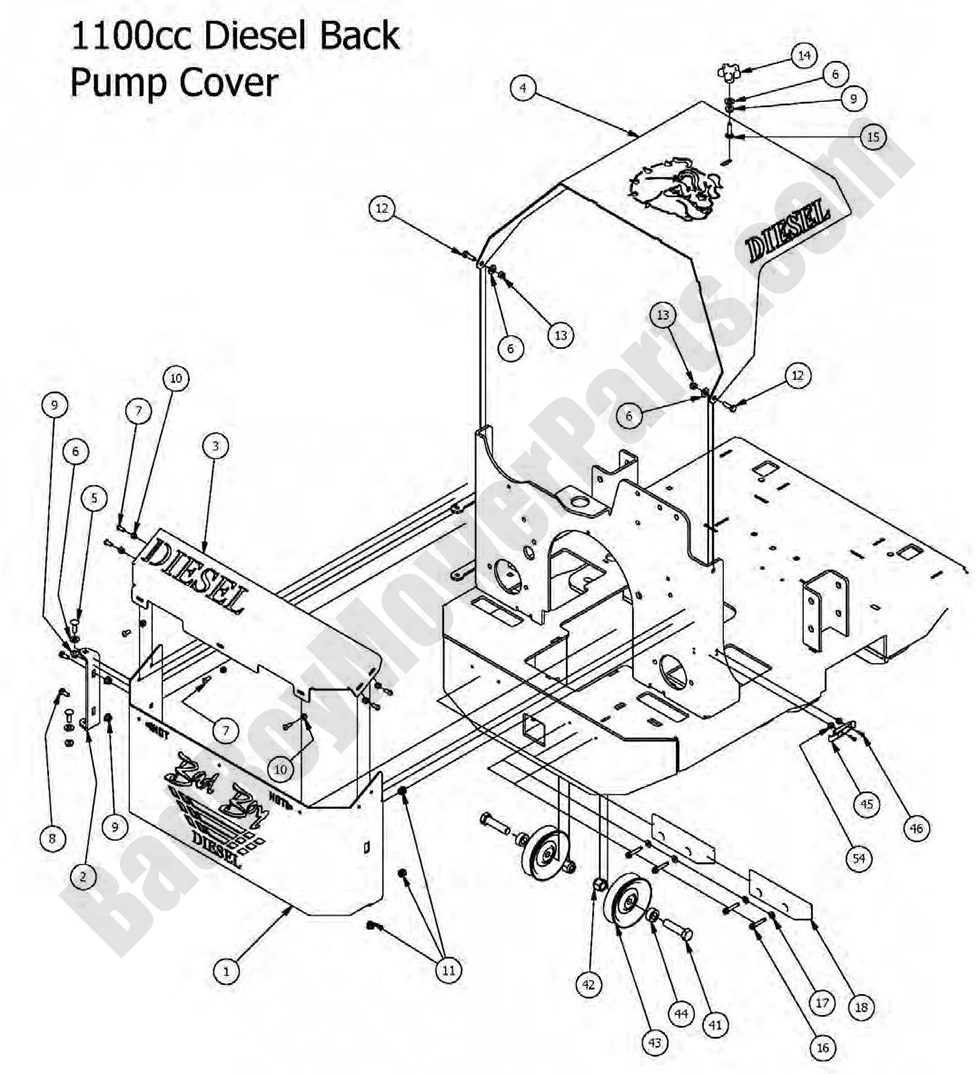

2016 Diesel 1100cc - Back Pump Cover Assembly

2016 Diesel 1100cc - Back Pump Cover Assembly

Introducing the 2016 Diesel 1100cc Back Pump Cover Assembly, a specially engineered component designed to protect and enhance the performance of your mower’s hydraulic system. This assembly is constructed with high-grade materials and precision engineering to provide a secure, durable cover that shields critical pump components from debris, moisture, and wear. Its robust design ensures that the back pump operates efficiently while maintaining optimal pressure and performance even under demanding conditions. Ideal for both routine maintenance and system upgrades, the back pump cover assembly offers easy installation and long-lasting reliability. Every part is thoroughly tested to meet rigorous industry standards, ensuring dependable protection and improved system longevity. For complete technical support and access to authentic replacement parts, visit our website and consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your hydraulic system with this essential assembly today for exceptional performance now

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - Back Pump Cover Assembly
  Position Number SKU Product Title Price
1 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79
2 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
3 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
4 059-8020-00 059-8020-00 - 2008-2017 Diesel Hood 3 Cyl
$159.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
8 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
15 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
16 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
41 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
42 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
43 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
44 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
45 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
46 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
54 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
