2016 Diesel 1100cc - Drive Arm Assembly

2016 Diesel 1100cc - Drive Arm Assembly

Introducing the 2016 Diesel 1100cc Drive Arm Assembly, a robust component engineered to provide precise control and efficient power transmission between the engine and the cutting deck. This drive arm assembly is constructed with high-quality materials and precision manufacturing techniques to ensure durability, stability, and a perfect fit. Its innovative design minimizes vibration and reduces wear on connected components, thereby enhancing overall mower performance and extending service life. Ideal for replacing worn parts or upgrading existing systems, this assembly delivers improved maneuverability and consistent power distribution across various operating conditions. Every element is rigorously tested to meet stringent quality standards, ensuring reliable operation in demanding environments. For detailed technical specifications and genuine replacement parts, visit our website and refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your drive arm assembly today for enhanced performance and long-lasting reliability, achieving exceptional results.

Bad Boy Mower Parts Lookup

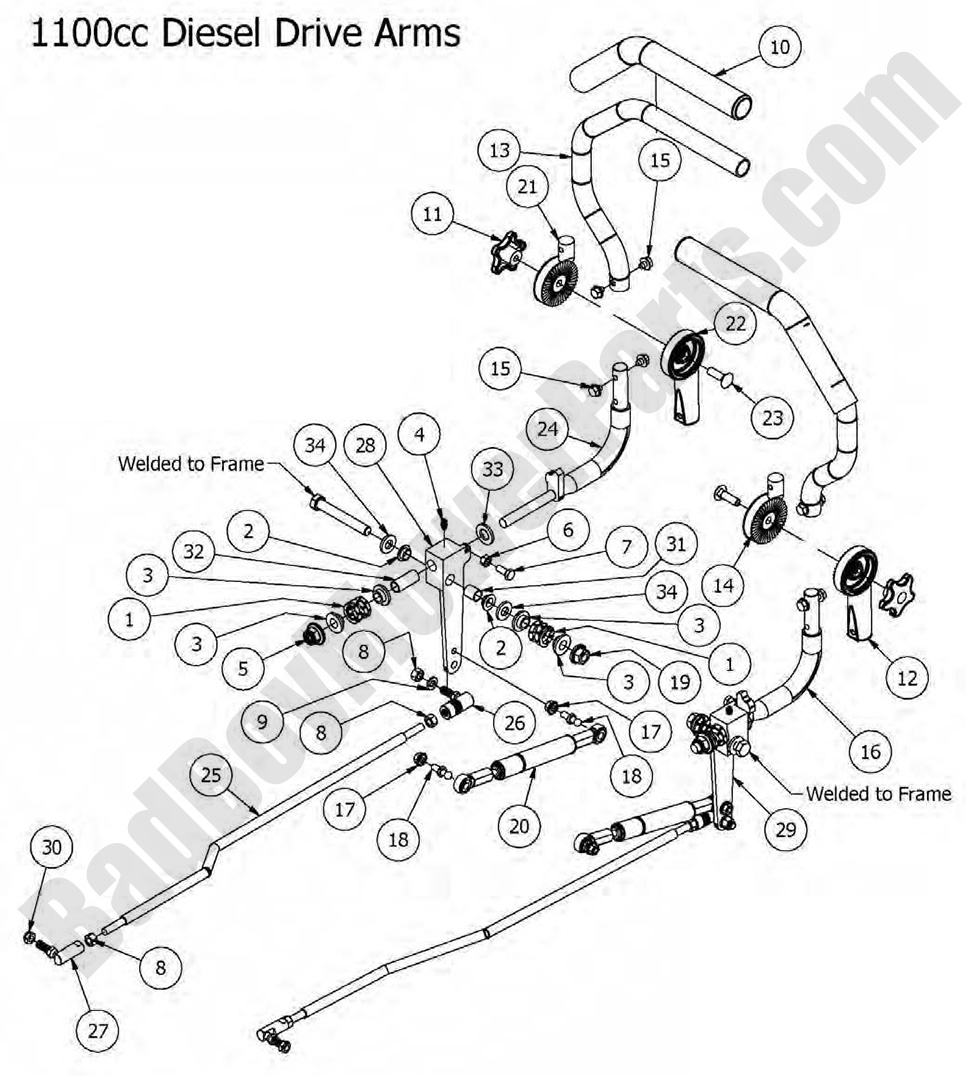

2016 Diesel 1100cc - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
12 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
15 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
16 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
21 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
22 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
24 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
25 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
29 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
30 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
31 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
32 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
