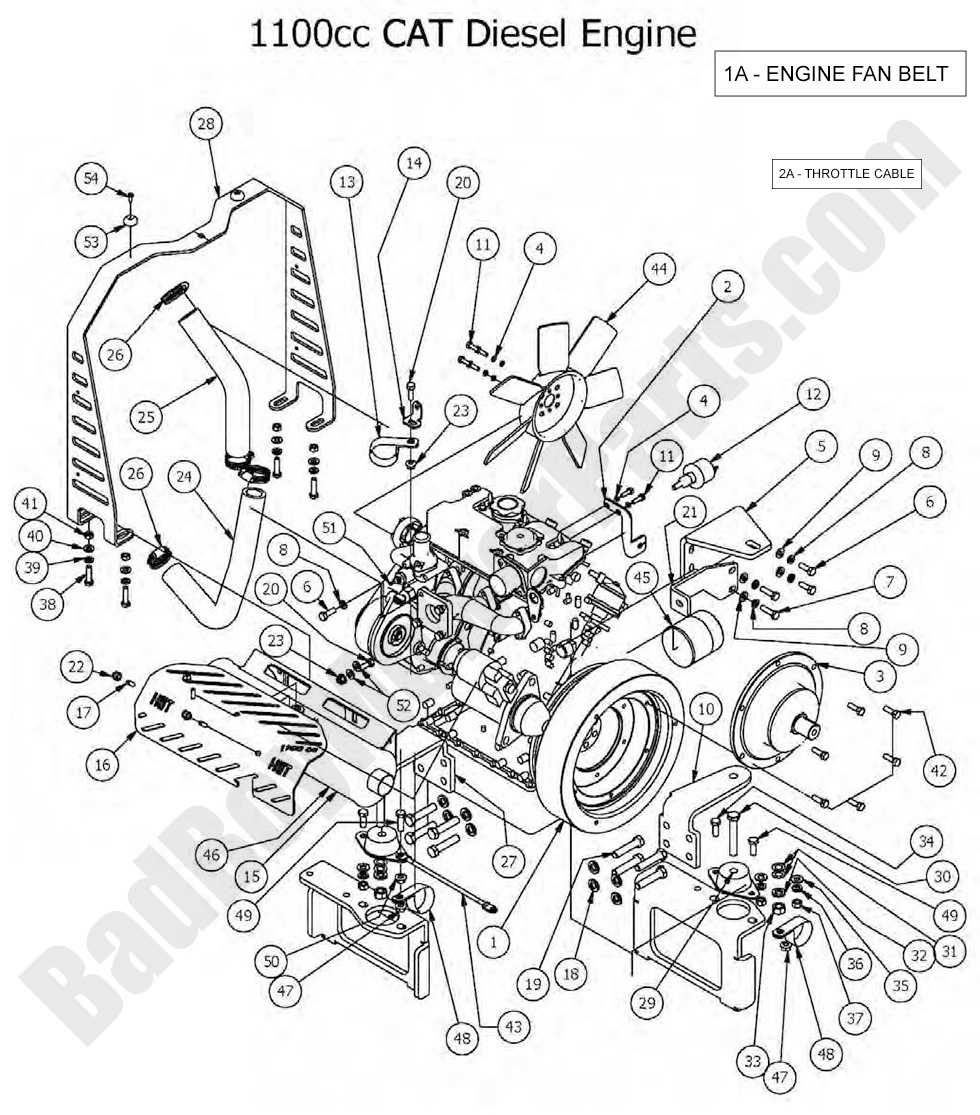

2016 Diesel 1100cc - Engine - CAT Diesel Engine Assembly

2016 Diesel 1100cc - Engine - CAT Diesel Engine Assembly

Introducing the 2016 Diesel 1100cc Engine - CAT Diesel Engine Assembly, a high-performance power unit engineered for robust operation and exceptional fuel efficiency. This assembly is built with advanced CAT technology and high-quality components to deliver consistent power output and reliable performance under strenuous conditions. Designed for both new installations and replacements, the engine assembly features precise manufacturing and rigorous testing to ensure durability, reduced maintenance, and optimal combustion. Its innovative design maximizes torque and efficiency while minimizing emissions, making it ideal for both commercial and residential mowing applications. Each element of the assembly is crafted to meet strict industry standards and provide long-lasting service, even in the toughest environments. For detailed technical support and genuine replacement parts, visit our website and refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your engine system today for superior performance and energy efficiency.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - Engine - CAT Diesel Engine Assembly
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
2 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
3 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
6 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
7 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
11 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
12 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
13 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
14 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
15 015-0010-00 015-0010-00 - 28/35hp Caterpillar Engine Muffler
$225.56
16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (See Models Used On For Details)
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
21 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
24 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
25 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
26 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
27 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left (See Models Used On For Details)
$31.22
28 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
29 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
30 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
31 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
33 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
34 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
37 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
41 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
42 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
43 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
44 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
45 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
47 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
49 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
50 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
51 086-7003-00 086-7003-00 - Temperature Sender- 2012 Gauge
$31.17
52 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
53 029-4010-00 029-4010-00 - Button Bumper
$2.99
54 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
