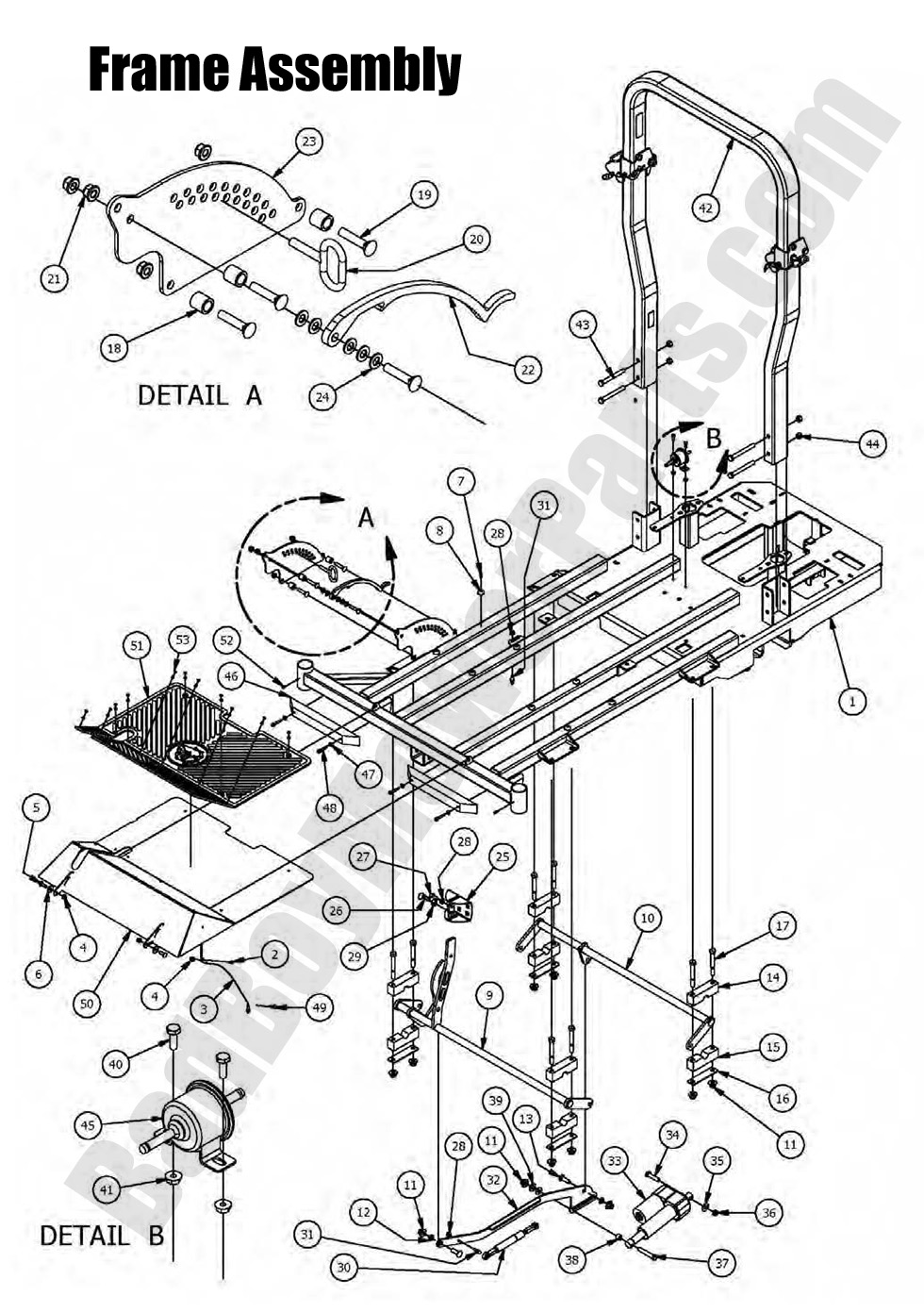

2016 Diesel 1100cc - Frame Assembly

2016 Diesel 1100cc - Frame Assembly

Introducing the 2016 Diesel 1100cc Frame Assembly, a robust structural component engineered to provide a durable foundation for your mower. Constructed from high-quality materials and precision-welded for maximum strength, this frame assembly ensures stability and resilience under harsh operating conditions. It is designed to support all critical components, from the engine to the cutting deck, while absorbing vibrations and minimizing structural wear. Ideal for both new builds and replacement applications, this assembly delivers superior performance and extends the overall service life of your equipment. Its innovative design allows for easy integration and straightforward maintenance, ensuring that repairs are efficient and reliable. For comprehensive technical support and genuine replacement parts, visit our website and consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your frame assembly today for unmatched stability and longevity, achieving exceptional results now indeed for peak performance every single day.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5580-00 070-5580-00 - 2015-2018 Compact Outlaw Diesel
$1399.99
2 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
3 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
8 029-4010-00 029-4010-00 - Button Bumper
$2.99
9 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$189.99
10 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$175.99
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
13 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
14 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
15 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
16A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$38.51
16 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
17 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
20 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
21 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
22 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
23 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83
24 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
25 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
26 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
27 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
28 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
29 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
30 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
31 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
31 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
32 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
33 035-7033-00 035-7033-00 - Actuator
$408.75
34 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
35 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
36 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
37 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
38 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
39 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
40 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
41 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
42 089-0003-00 089-0003-00 - 2016-2020 Diesel 2x3 Folding ROPS
$765.00
43 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
44 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
45 015-4000-00 015-4000-00 - Fuel Pump for 1100cc Diesel
$331.72
46 029-7037-00 029-7037-00 - 14" Bumper
$42.79
47 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
48 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
49 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
50 079-3130-00 079-3130-00 - Outlaw Floor Panel
$119.99
51 081-2050-00 081-2050-00 - 2016-2018 Outlaw/Outlaw XP Floor Mat
$47.03
52 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
53 040-6090-00 040-6090-00 - Ratchet Fastener - Floorboard (obsolete)
use part #040-6080-00
$2.99
