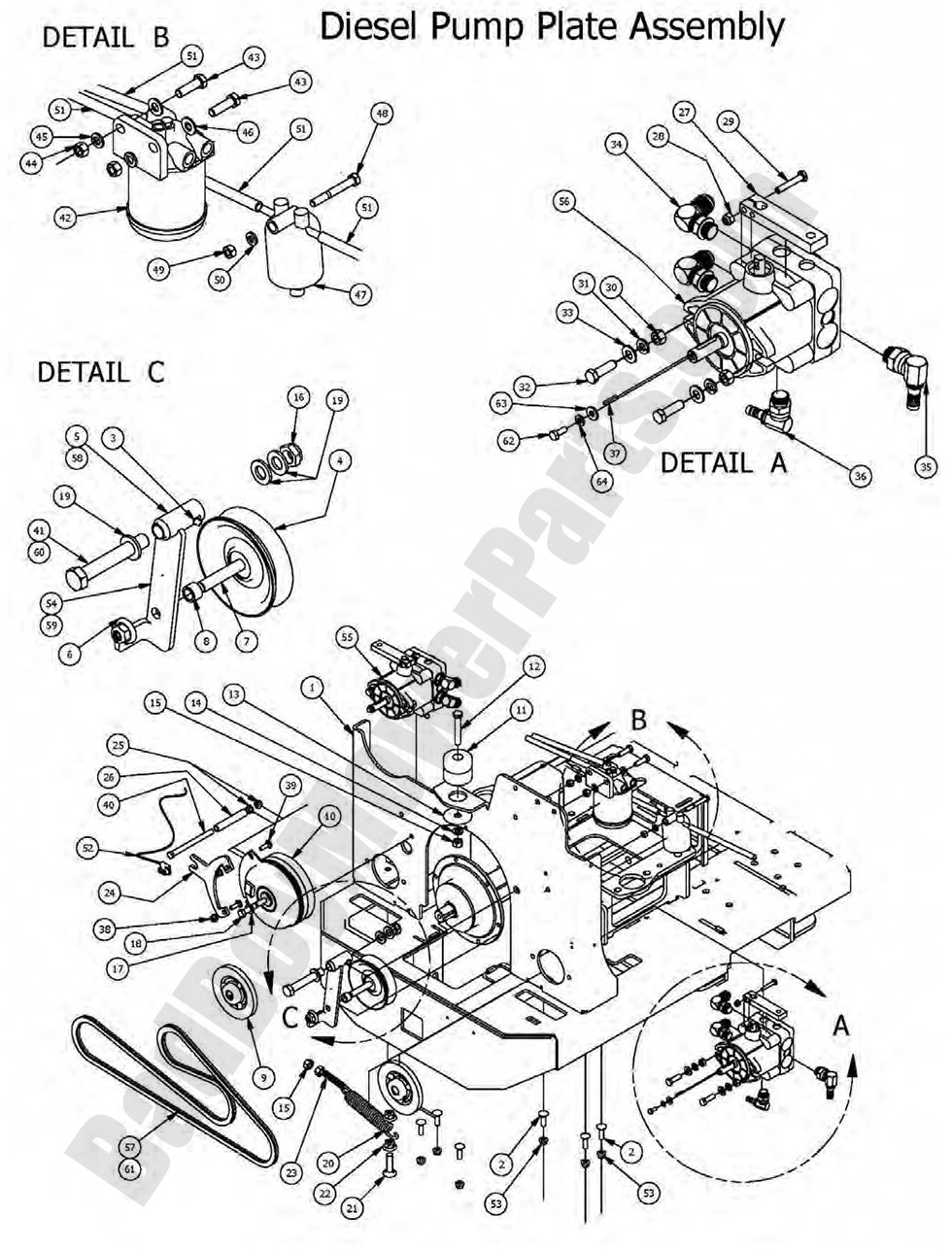

2016 Diesel 1100cc - Pump Plate Assembly

2016 Diesel 1100cc - Pump Plate Assembly

Introducing the 2016 Diesel 1100cc Pump Plate Assembly, a vital component engineered to ensure efficient fuel pump operation and consistent engine performance. This assembly is constructed from premium materials and designed with precision to provide a secure, leak-free seal that optimizes fuel delivery and maintains steady pressure throughout the system. Its robust design minimizes wear and extends the lifespan of your fuel pump, contributing to reduced maintenance costs and improved overall efficiency. Ideal for both replacement and system upgrades, the pump plate assembly integrates seamlessly with your diesel engine configuration. Every component is rigorously tested to meet strict quality standards, ensuring reliable operation under demanding conditions. For detailed technical information and access to genuine replacement parts, visit our website and consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your pump plate assembly today for superior performance and longevity, achieving exceptional results.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
10 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
11 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
13 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
14 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
16 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
21 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
23 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
24 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
25 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
26 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
27 031-5923-00 031-5923-00 - Pump Arm
$30.07
28 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
29 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
30 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
31 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
32 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
33 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
34 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
35 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
36 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
37 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
38 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
39 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
40 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
41 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
42 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
43 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
47 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
48 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
49 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
50 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
51 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
52 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
53 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
54 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
55 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
56 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
57 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
58 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
59 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
60 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
61 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
62 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
63 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
64 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
