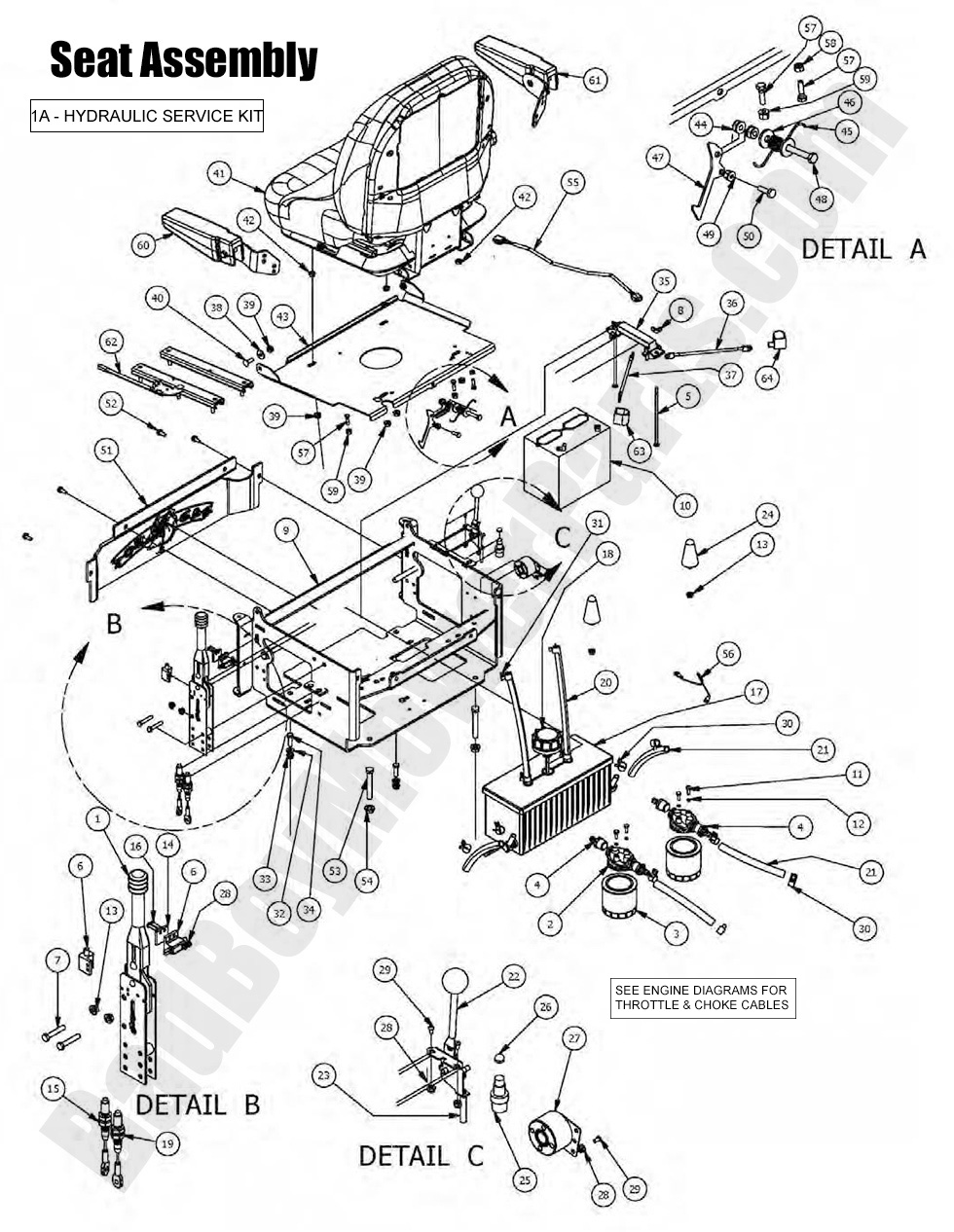

2016 Diesel 1100cc - Seat Assembly

2016 Diesel 1100cc - Seat Assembly

Introducing the 2016 Diesel 1100cc Seat Assembly, a meticulously engineered component designed to provide maximum comfort and support for operators during long mowing sessions. This seat assembly is crafted from durable, high-quality materials and features an ergonomic design that reduces fatigue and enhances control. Its robust construction ensures stability and longevity, even under the stress of continuous operation, while its sleek design seamlessly integrates with the overall aesthetics of your diesel mower. Ideal for both new installations and replacements, the seat assembly offers easy adjustment and secure mounting, ensuring a smooth and comfortable ride. Every element is rigorously tested to meet strict quality standards, guaranteeing reliability and improved operator experience. For detailed installation instructions and access to genuine parts, visit our website and refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your seat assembly today for enhanced comfort and performance.

Bad Boy Mower Parts Lookup

2016 Diesel 1100cc - Seat Assembly
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
9 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
14 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
15 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
16 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
18 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
19 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
20 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
21 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
23 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
24 034-1000-00 034-1000-00 - Spring Cushion (See Models Used On For Detail)
$28.39
25 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
26 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
27 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
29 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
30 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
31 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
32 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
35 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
36 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
37 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
38 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
39 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
40 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
41 071-4055-00 071-4055-00 - Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-4055-17
$959.99
43 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
45 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
47 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
48 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
49 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
50 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
51 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
52 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
53 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
54 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
55 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
56 064-8081-00 064-8081-00 - Seat Cable
$15.60
57 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
58 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
60 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
61 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29
62 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46
63 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
64 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
