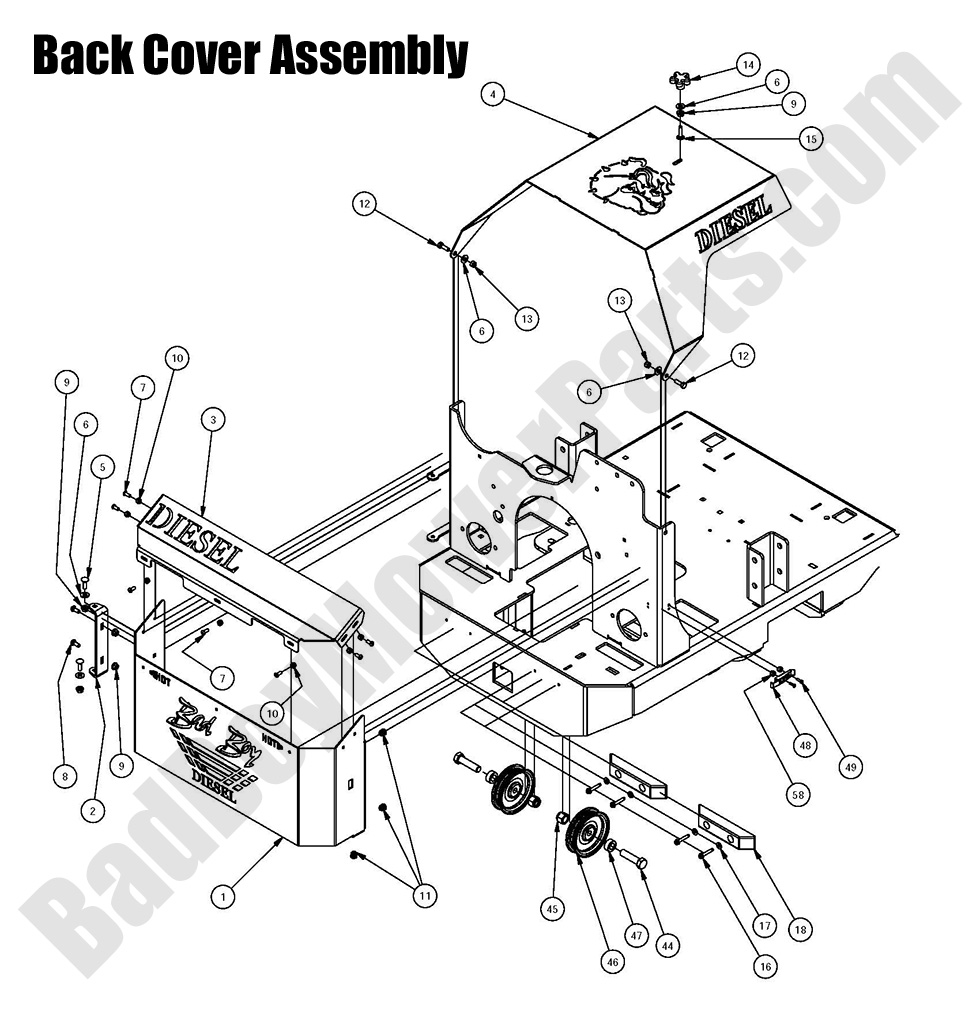

2016 Diesel 1500cc - Back Cover Plate Assembly

2016 Diesel 1500cc - Back Cover Plate Assembly

2016 Diesel 1500cc Back Cover Plate Assembly is a critical component that protects vital engine parts and enhances overall machine integrity. This assembly is precision-engineered using durable materials to provide a secure enclosure that shields internal components from debris, moisture, and damage. Its robust design ensures that the back cover remains firmly in place even under demanding operational conditions, contributing to reliable performance and safety. Ideal for replacing worn or damaged covers, this assembly supports proper airflow and efficient engine cooling. The construction is optimized for easy installation and long-lasting durability, reducing maintenance downtime. Every unit is tested rigorously to meet strict quality standards, ensuring consistent performance over time. For comprehensive technical support and access to certified replacement parts, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your back cover plate assembly to protect your engine and sustain performance.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc - Back Cover Plate Assembly
  Position Number SKU Product Title Price
1 014-5920-00 014-5920-00 - Diesel Back Pump Cover 2008
$42.79
2 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
3 014-5921-00 014-5921-00 - Diesel Back Pump Cover - Top
$26.75
4 059-8010-00 059-8010-00 - 2008-2020 Diesel Hood 4cyl
$159.99
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
7 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
8 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
11 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
12 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
13 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
14 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
15 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
16 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
17 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
18 029-7038-00 029-7038-00 - 8 Bumper
$28.32
44 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
45 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
46 033-7025-00 033-7025-00 - 5 V Idler Pulley - BCVI-81 Frame Mounted AOS/Diesel
$28.39
47 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
48 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
49 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
58 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
