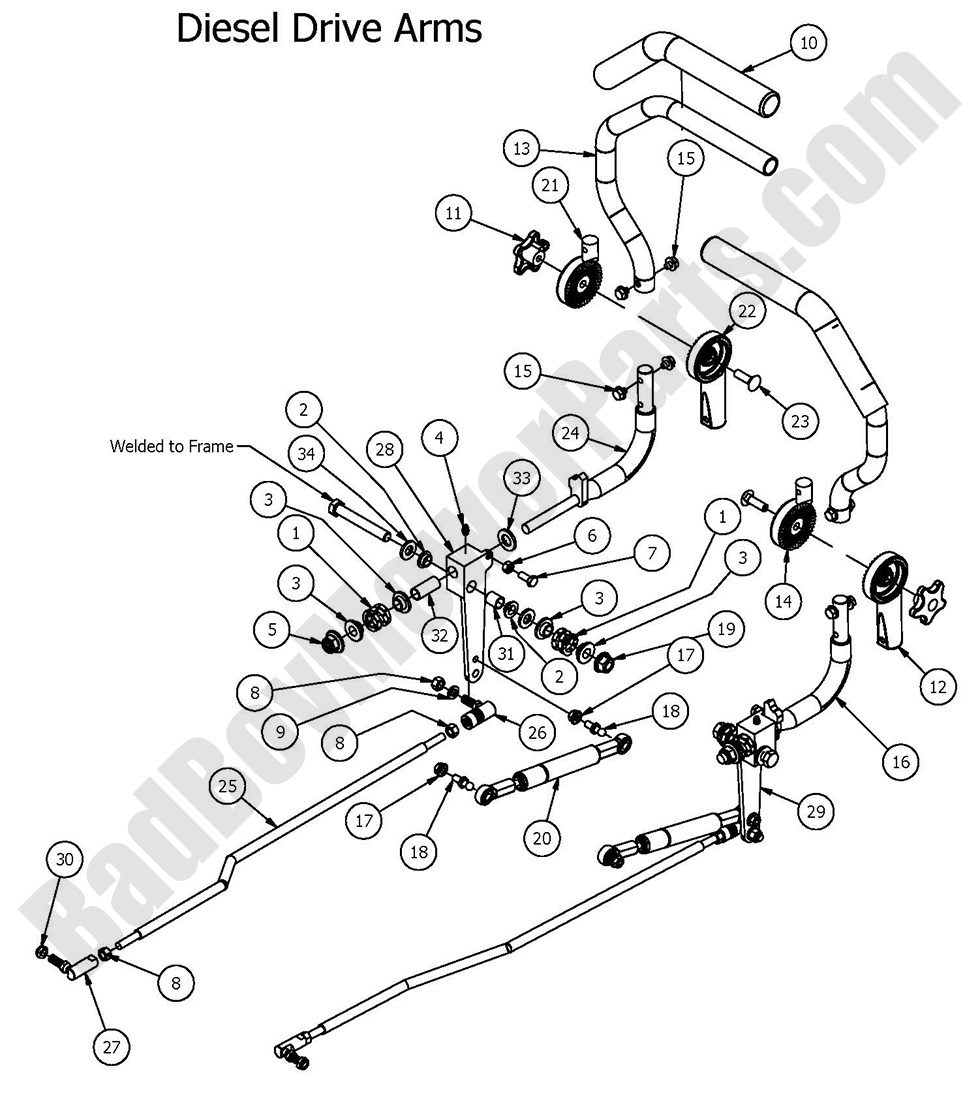

2016 Diesel 1500cc - Drive Arm Assembly

2016 Diesel 1500cc - Drive Arm Assembly

2016 Diesel 1500cc Drive Arm Assembly is engineered to ensure efficient power transfer and precise control in your diesel mower. This assembly is constructed from high-quality materials and designed with precision to provide a secure connection between the engine and cutting deck. Its robust design minimizes vibration and wear on critical components while maintaining consistent performance during heavy-duty operation. Ideal for replacing worn-out drive arms, this assembly enhances overall machine stability and responsiveness. The design facilitates easy installation and integration with existing systems, reducing maintenance downtime and improving operational efficiency. Every unit is rigorously tested to meet strict quality standards, ensuring long-term durability and reliable performance in challenging environments. For detailed technical support and access to certified replacement parts, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your drive arm assembly to experience smoother operation and control in mowing conditions.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
8 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
12 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
15 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
16 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
19 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
20 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
21 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
22 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
23 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
24 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
25 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
29 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
30 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
31 032-1010-00 032-1010-00 - Drive Arm Block Sleeve Short -
$5.82
32 032-1020-00 032-1020-00 - Drive Arm Block Sleeve - Long (See Models Used On For Details)
$6.56
33 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
34 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
