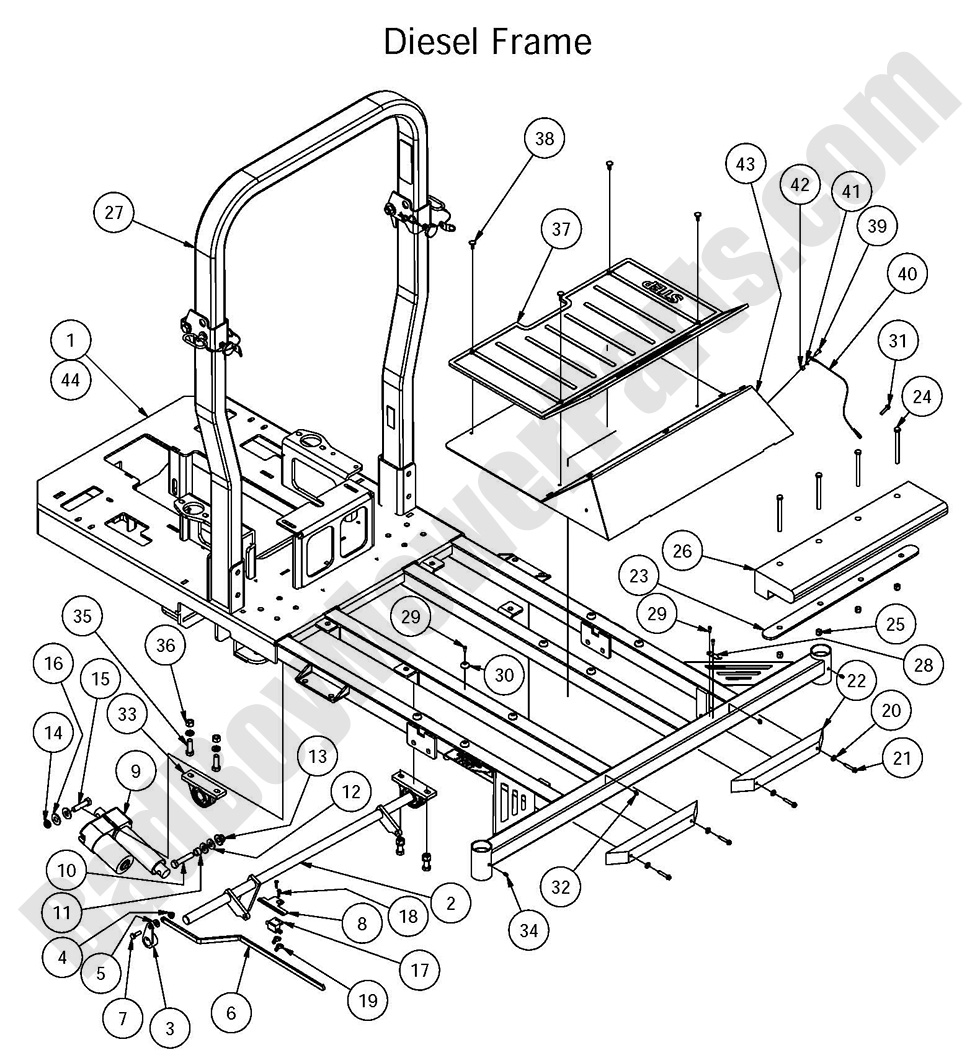

2016 Diesel 1500cc - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5550-00 070-5550-00 - 2012-2020 Diesel 4 cyl 72 inch Frame
$1399.99
2 028-7920-00 028-7920-00 - Actuator Bar (See Models Used On For Detail)
$116.99
3 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
8 039-2008-00 039-2008-00 - Deck Stop Bracket 2008
$11.34
9 035-7033-00 035-7033-00 - Actuator
$408.75
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
14 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
15 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
16 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
17 077-5300-00 077-5300-00 - Deck Stop Switch
$9.89
18 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
19 013-2000-00 013-2000-00 - 10-24 Wing Nut
$2.99
20 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
21 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
22 029-7037-00 029-7037-00 - 14" Bumper
$42.79
23 028-1000-00 028-1000-00 - Diesel Weight Bar Bracket (See Models Used On For Details)
$14.97
24 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
25 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
26 088-2000-00 088-2000-00 - 58 lb Diesel Weight
$229.99
27 089-0003-00 089-0003-00 - 2016-2020 Diesel 2x3 Folding ROPS
$765.00
28 058-2000-00 058-2000-00 - 2006-Present Floor Panel Stop
$7.34
29 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
30 029-4010-00 029-4010-00 - Button Bumper
$2.99
31 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
32 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
33 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
34 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
35 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
36 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
37 081-2007-00 081-2007-00 - Floor Mat - Diesel Models (See Models Used On For Details)
$66.76
39 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
40 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
41 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
42 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
43 079-6000-00 079-6000-00 - 2007-2020 Floor Panel (See Models Used On For Details)
$145.95
44 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
