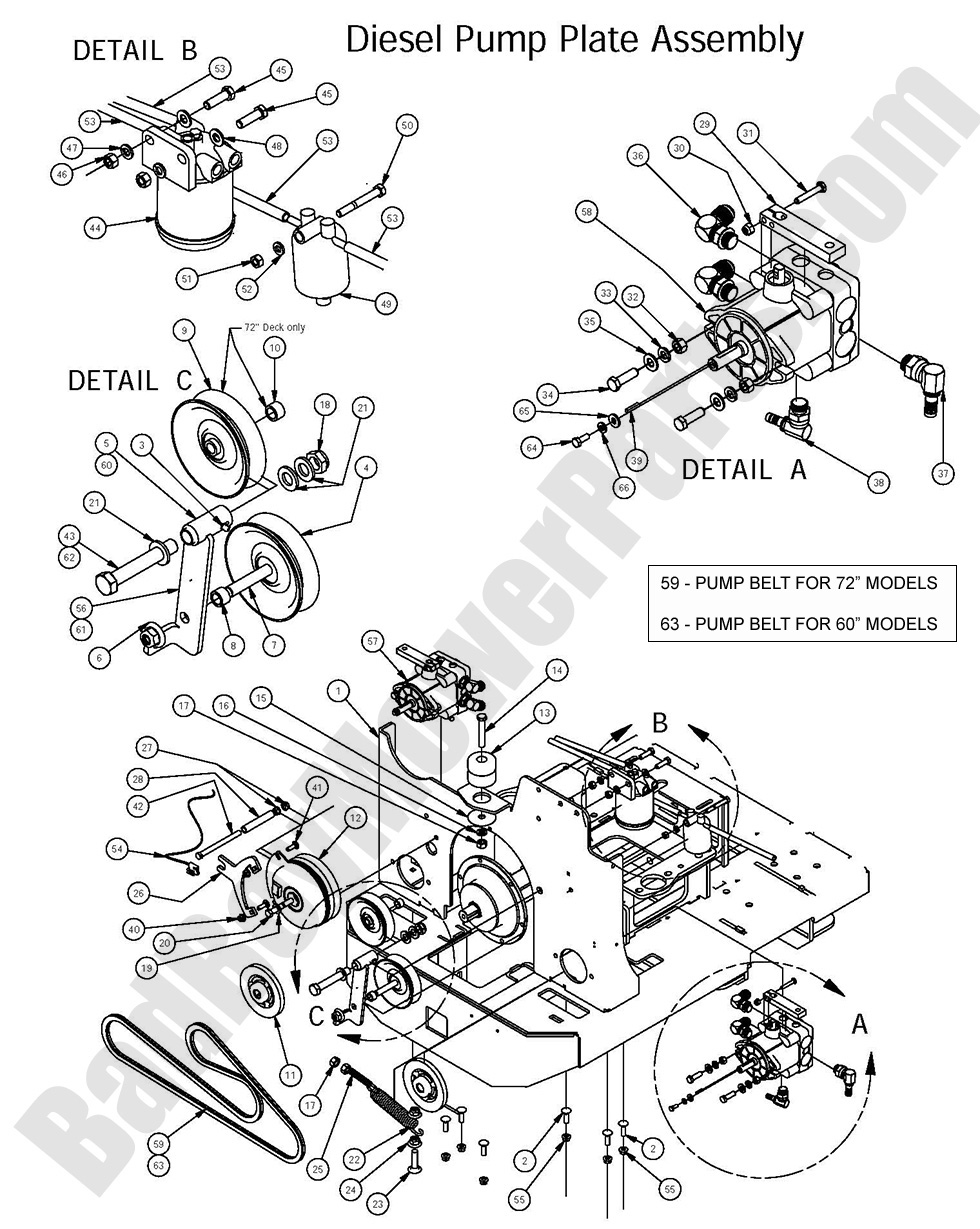

2016 Diesel 1500cc - Pump Plate Assembly

2016 Diesel 1500cc - Pump Plate Assembly

2016 Diesel 1500cc Pump Plate Assembly is engineered to ensure fuel pump operation and maintain engine performance. This assembly is crafted from durable materials and designed for a secure, leak-free seal that optimizes fuel delivery throughout the system. Its robust construction minimizes wear and tear on the pump, contributing to improved fuel efficiency and reduced maintenance downtime. Ideal for replacing worn or damaged pump plates, this assembly integrates seamlessly with your diesel engine to support consistent power output. The design facilitates straightforward installation and reliable performance under continuous use, even in demanding conditions. Every unit is rigorously tested to meet strict industry standards for quality and durability. For detailed technical guidance and to obtain certified replacement components, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your pump plate assembly to achieve fuel delivery and enhance overall engine efficiency during operation.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc - Pump Plate Assembly
  Position Number SKU Product Title Price
1 026-8030-00 026-8030-00 - Pump Plate Diesel (See Models Used On For Details)
$109.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 039-5950-00 039-5950-00 - Pump Idler Bracket 60 Diesel
$32.65
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
8 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
9 033-4050-00 033-4050-00 - 5" V Idler 35hp Diesel
$37.79
10 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
11 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
12 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
13 032-4000-00 032-4000-00 - Rubber for Rear Diesel Motor Mount
$76.53
15 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
16 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
20 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
21 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
22 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
23 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
25 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
26 057-5910-10 057-5910-10 - 2010-2020 Diesel PTO Engager Holder
$22.71
27 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
28 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
29 031-5923-00 031-5923-00 - Pump Arm
$30.07
30 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
31 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 Hex Bolt
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
34 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
35 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
36 024-2080-00 024-2080-00 - 90 Degree Adaptor-Diesel Models (See Models Used On For Details)
$9.67
37 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
38 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
39 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
40 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
43 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
44 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
45 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
49 015-0007-00 015-0007-00 - Caterpillar Fuel Bowl Kit
$150.99
50 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
51 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
52 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
53 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
54 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
55 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
56 039-5946-98 039-5946-98 - Pump Idler Bracket Assy Diesel
$56.77
57 050-5308-00 050-5308-00 - Left Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
58 050-5407-00 050-5407-00 - Right Pump 16cc - AOS/Diesel (See Models Used On For Details)
$899.99
59 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
60 039-5945-00 039-5945-00 - Diesel Pump Idler 72 (35HP)
$32.65
61 039-5945-98 039-5945-98 - Pump Idler 72" (35HP) Assy (See Models Used On For Details)
$56.77
62 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
63 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
64 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
65 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
66 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
