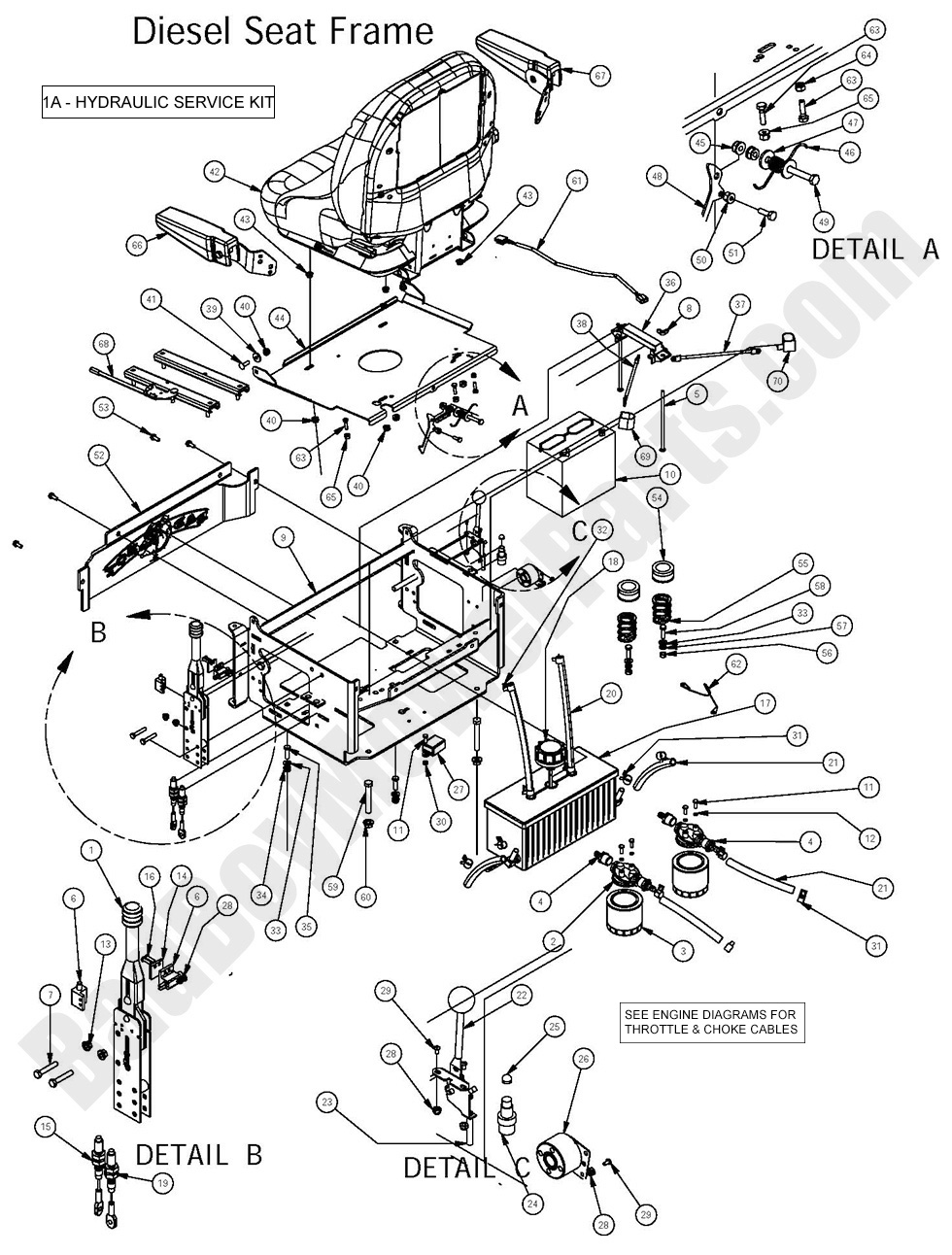

2016 Diesel 1500cc - Seat Assembly

2016 Diesel 1500cc - Seat Assembly

2016 Diesel 1500cc Seat Assembly is engineered to provide maximum operator comfort and safety during extended mowing sessions. This seat assembly features an ergonomic design constructed from durable materials that absorb shocks and reduce fatigue. Its secure mounting system ensures stability on uneven terrain while maintaining a sleek appearance that complements your diesel mower. Ideal for replacing worn seats or upgrading your equipment, this assembly enhances the overall riding experience and contributes to improved productivity. The design allows for easy adjustments and straightforward installation, ensuring a perfect fit and long-lasting performance. Every component is rigorously tested to meet strict quality standards, providing consistent comfort and reliability in demanding conditions. For detailed technical support and access to certified replacement parts, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100. Upgrade your seat assembly to enjoy superior comfort and safety on every mowing task.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc - Seat Assembly
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
6 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
9 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
13 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
14 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
15 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
16 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
18 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
19 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
20 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
21 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
23 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
24 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
25 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
26 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
27 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
28 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
29 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
30 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
31 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
32 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
33 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
34 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
35 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
36 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
37 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
38 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 071-4055-00 071-4055-00 - Grammer Seat w/Seatbelt Use w/seat with ROPS (obsolete)
use part #071-4055-17
$959.99
44 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
46 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
48 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
49 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
50 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
51 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99
52 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
53 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
54 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
55 034-8045-00 034-8045-00 - Seat Spring
$20.49
56 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
57 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
58 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
59 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
60 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
61 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
62 064-8081-00 064-8081-00 - Seat Cable
$15.60
63 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
64 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
66 071-4051-00 071-4051-00 - Left Armrest Kit-Grammer Seat
$116.70
67 071-4052-00 071-4052-00 - Right Armrest Kit-Grammer Seat
$96.29
68 071-4054-00 071-4054-00 - Seat Rails for Grammer Seat(2)
$109.46
69 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
70 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
