2016 MZ Engine - Briggs 540cc

Engine - Briggs 540cc

You have selected the Engine - Briggs 540cc diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Engine - Briggs 540cc . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

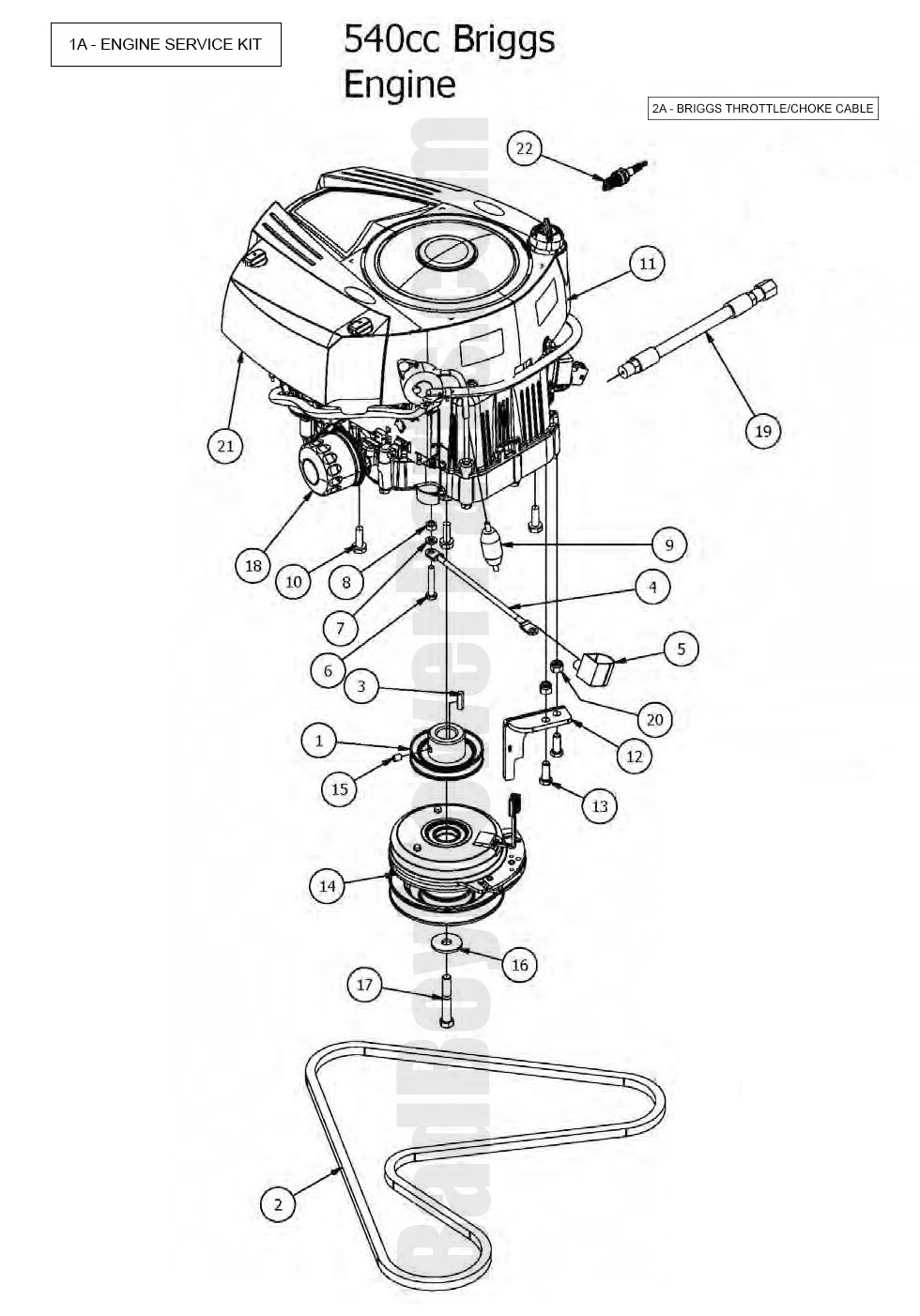

2016 MZ Engine - Briggs 540cc
  Position Number SKU Product Title Price
1A 063-2000-08 063-2000-08 - MZ Briggs Intek 21HP Engine Service Kit
$94.79
1 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
2A 055-3021-00 055-3021-00 - 25" Throttle Cable for Briggs Smart Choke Engines
$48.14
2 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
3 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
4 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
5 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
9 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 015-0021-00 015-0021-00 - 540cc Briggs Intek Engine-MZ
$1925.99
12 039-1220-00 039-1220-00 - Warner Clutch BracketFor MZ and Magnums
$12.63
13 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
14 070-0050-00 070-0050-00 - 2015 & 2016 Magnum/MZ PTO Clutch
$269.69
15 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
16 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
17 018-0029-00 018-0029-00 - 7/16-20x4" Hex Bolt Gr.8
$4.39
18 063-8018-00 063-8018-00 - Oil Filter
$21.39
19 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
20 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
21 063-4026-00 063-4026-00 - 21hp Briggs Air Filer and Pre-cleaner - MZ
$39.04
22 015-8000-00 015-8000-00 - Spark Plug-Kohler and Briggs
$10.99
