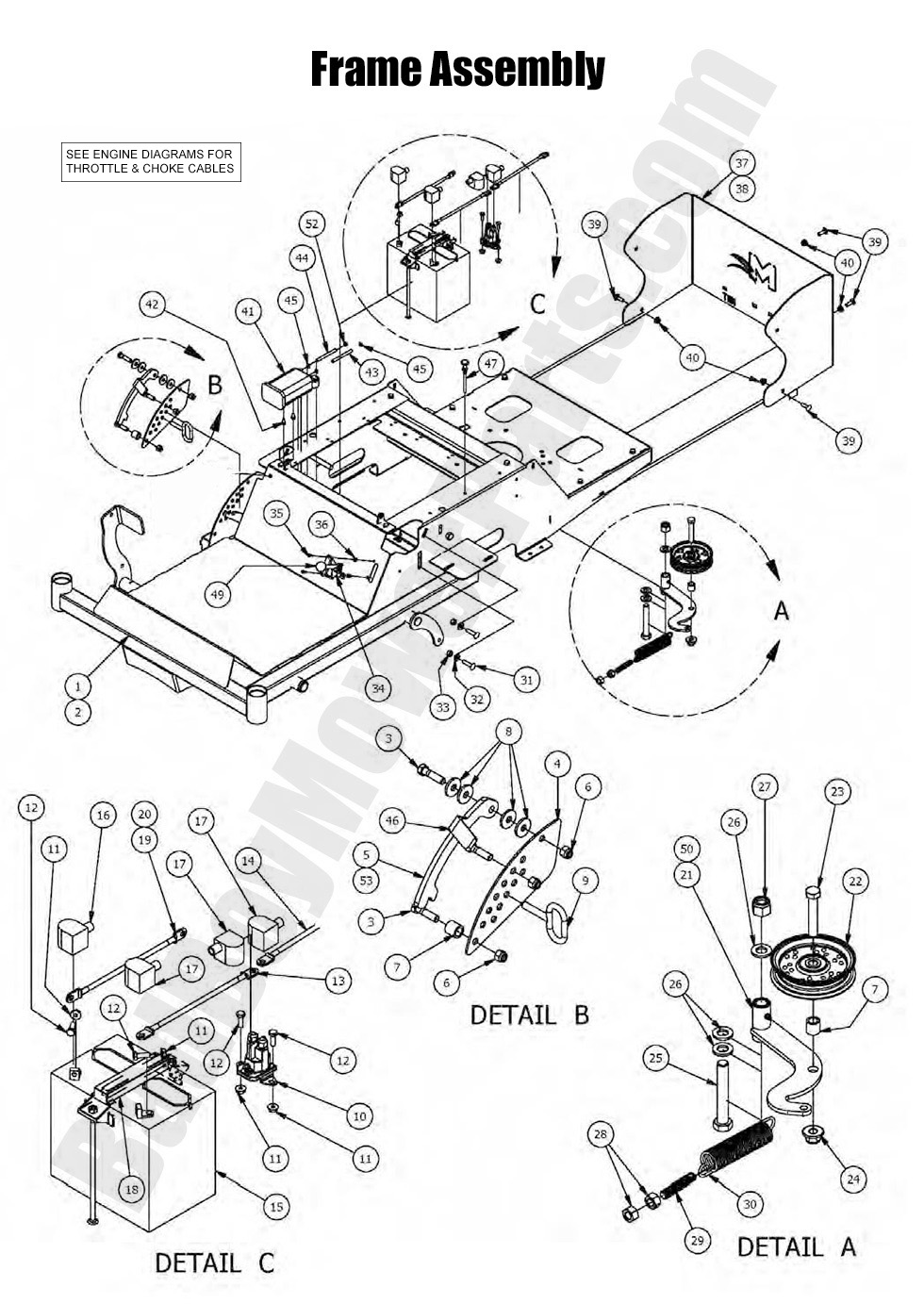

2016 MZ - Frame Assembly

2016 MZ - Frame Assembly

Introducing the 2016 MZ Frame Assembly, a structurally sound and meticulously engineered component that forms the backbone of your mower’s construction. This frame assembly is designed to offer exceptional strength, stability, and durability, ensuring that your mower can withstand daily wear and challenging terrains. Precision manufacturing techniques and high-grade materials combine to create a frame that not only supports the entire machine but also enhances overall performance and safety. Detailed assembly instructions and maintenance guidelines accompany the frame, providing you with the necessary information for secure installation and long-term reliability. For additional visual guidance and part identification, refer to Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. At BadBoyMowerParts.com, we are committed to quality and customer satisfaction, ensuring every frame assembly meets rigorous industry standards and delivers consistent performance across various applications. Experience enduring strength and unwavering support today.

Bad Boy Mower Parts Lookup

2016 MZ - Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1461.53
2 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1461.53
3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
4 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
6 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
7 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
8 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
9 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
10 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
11 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
13 064-0025-00 064-0025-00 - 10" Red Battery Cable
$13.90
14 064-0050-00 064-0050-00 - 62" Red Battery Cable
$21.39
16 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
17 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
18 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
19 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
20 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
21 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
22 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
23 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
24 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
28 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
29 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
30 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
31 018-0001-00 018-0001-00 - 3/8-16 X 1-1/2 Short Neck Carriage Bolt
$2.99
32 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
33 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
35 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
36 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
37 026-0110-00 026-0110-00 - MZ Rear Plate (27BS/26KA/22KA)
$88.99
39 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
42 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
43 051-2025-00 051-2025-00 - 2015-2016 MZ/MZ Magnum 3/16" EPA Air Line 61"
$14.19
44 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
45 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
46 014-2051-00 014-2051-00 - Deck Height Handle Grip MZ
$2.99
48A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
49 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
50 039-7000-98 039-7000-98 - MZ Pump Idler Assembly (obsolete)
use part #039-7000-00
$38.32
52 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
53 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
