2016 MZ Gas Tank & Control Panel

Gas Tank & Control Panel

You have selected the Gas Tank & Control Panel diagram for your 2016 Bad Boy MZ. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ models. Find all of your Bad Boy parts for your 2016 MZ parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Gas Tank & Control Panel . If you are not able to find the Bad Boy parts for your 2016 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

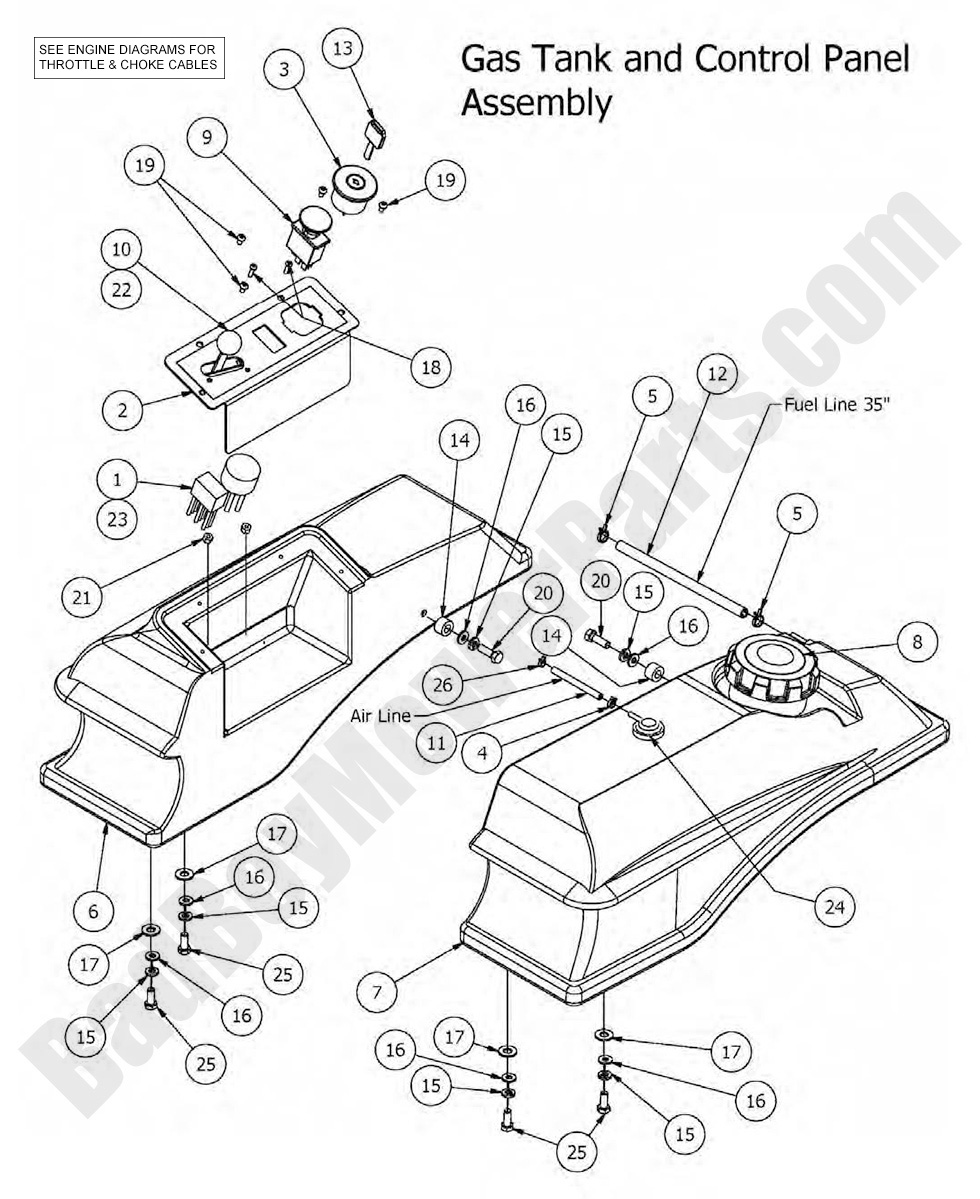

2016 MZ Gas Tank & Control Panel
  Position Number SKU Product Title Price
1 086-0075-00 086-0075-00 - 2010-2015 Wiring Harness - MZ Models
$283.89
2 079-0050-00 079-0050-00 - 2010-2016 MZ Control Panel
$28.39
3 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
4 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
5 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
6 067-2001-00 067-2001-00 - Fender Console
$224.99
7 067-2000-50 067-2000-50 - 2010-2016 MZ/ 3 Gallon Fuel Tank
$305.99
8 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
9 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
11 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
12 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
13 042-9000-00 042-9000-00 - Ignition Key
$4.06
14 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
15 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
17 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
18 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
19 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
20 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
21 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
23 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
24 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
25 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
26 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
