2016 MZ Magnum - Fuel Tank Assembly

2016 MZ Magnum - Fuel Tank Assembly

The 2016 MZ Magnum Fuel Tank Assembly is a precision-engineered component designed to deliver reliable fuel storage and efficient distribution for your mower. Constructed from high-quality, corrosion-resistant materials, this fuel tank assembly ensures safe and consistent fuel delivery even under the most demanding conditions. Its secure design minimizes the risk of leaks and optimizes fuel flow, contributing to overall engine performance and efficiency. The assembly is engineered for easy installation and seamless integration with the mower’s control systems, providing a hassle-free upgrade for enhanced operational reliability. Customers looking for authentic replacement parts and detailed installation diagrams are encouraged to consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. For comprehensive technical specifications, maintenance tips, and expert support, please visit BadBoyMowerParts.com. Invest in the Magnum Fuel Tank Assembly to ensure your mower operates with consistent power and improved fuel management.

Bad Boy Mower Parts Lookup

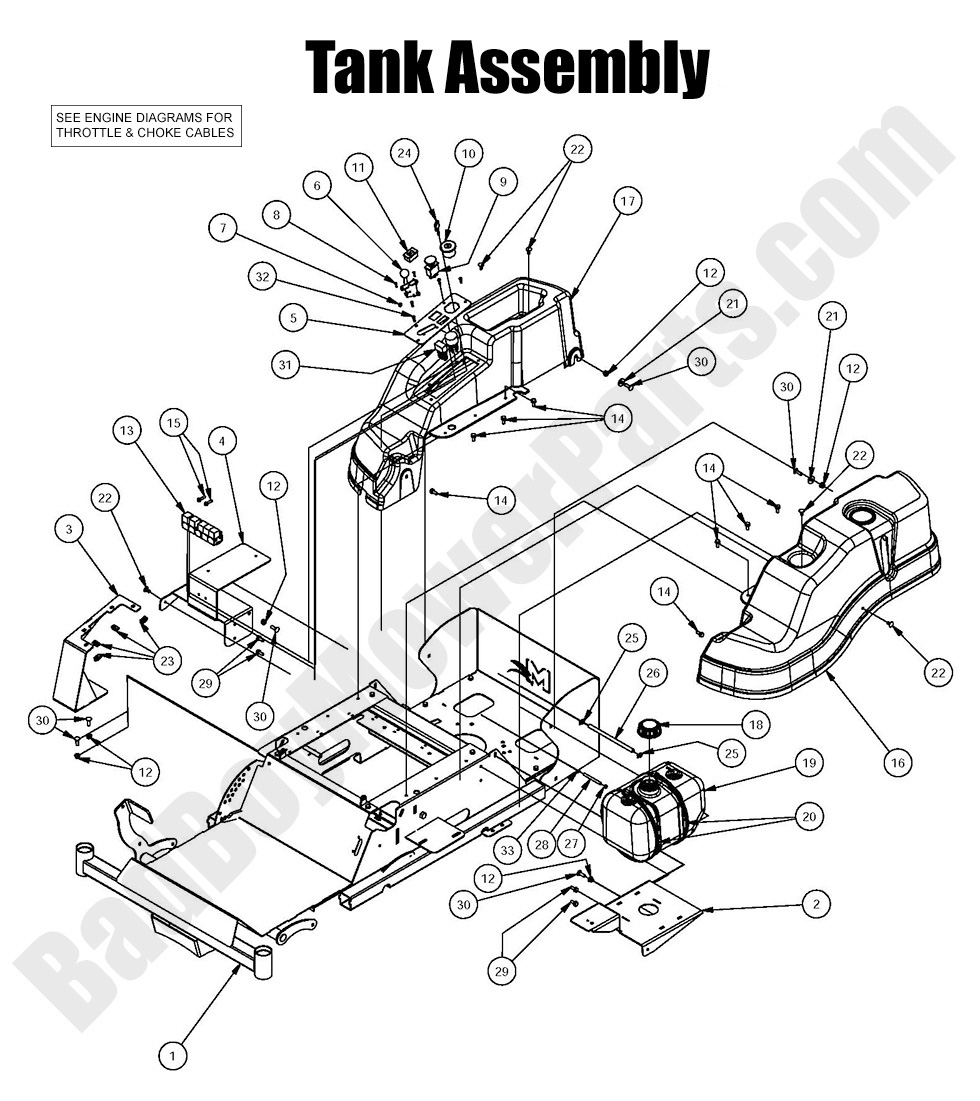

2016 MZ Magnum - Fuel Tank Assembly
  Position Number SKU Product Title Price

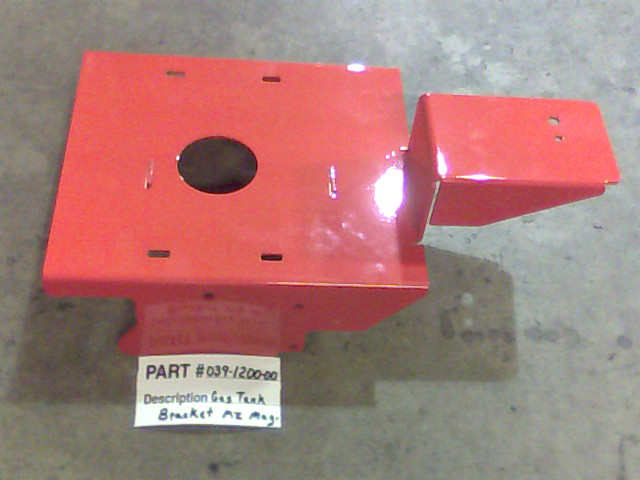

2 039-1200-00 039-1200-00 - MZ Magnum Gas Tank Bracket Assembly
$26.74

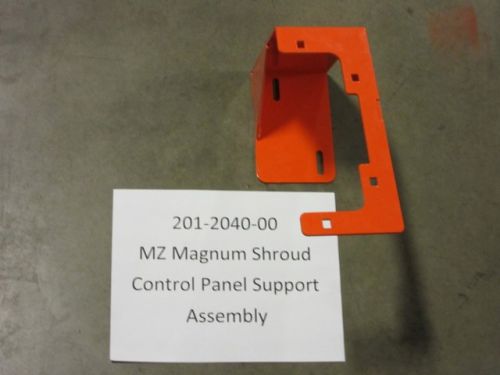

3 201-2040-00 201-2040-00 - MZ Magnum Shroud Control Panel Support Assembly
$26.74

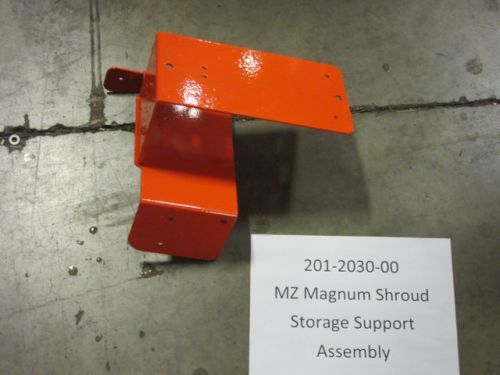

4 201-2030-00 201-2030-00 - MZ Magnum Shroud Storage Support Assembly
$37.44

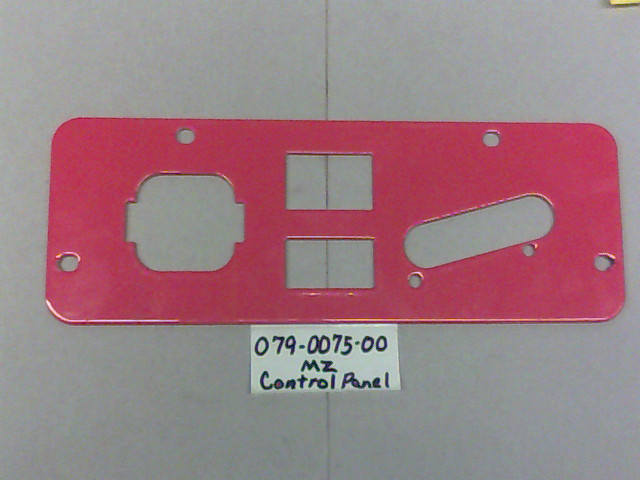

5 079-0075-00 079-0075-00 - 2013-2016 MZ Magnum Control Panel
$16.04
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
8 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
9 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
10 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
11 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97

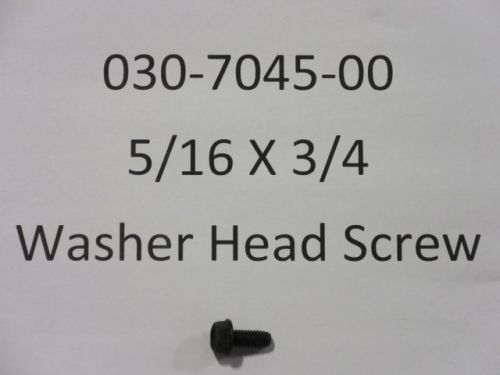

14 030-7045-00 030-7045-00 - 5/16-1 x 3/4 Hex Washer-Black
$2.99
15 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99

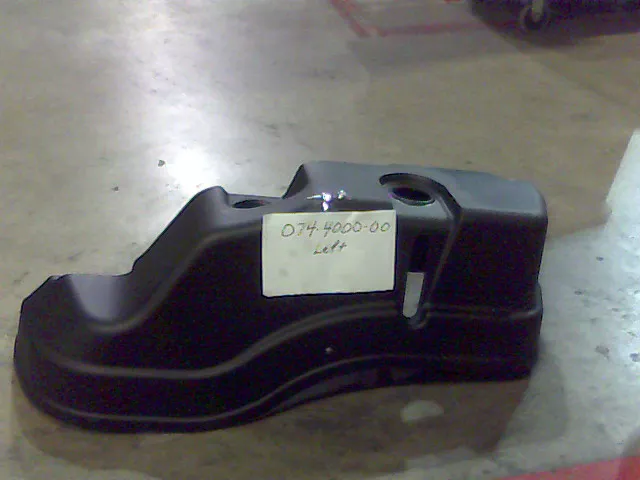

16 074-4000-00 074-4000-00 - MZ Magnum Left Fender Shroud
$162.99

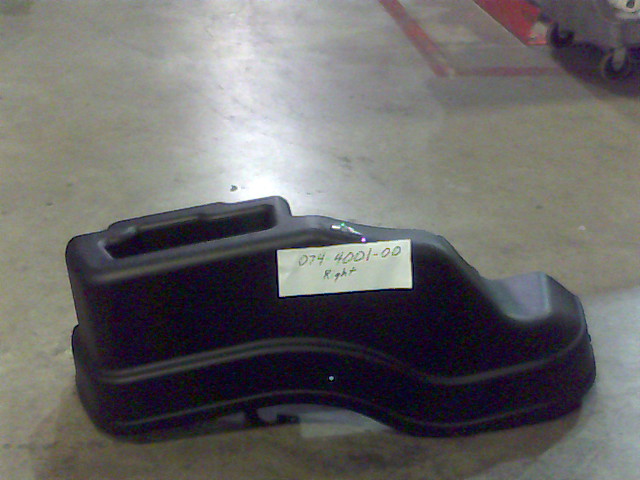

17 074-4001-00 074-4001-00 - MZ Magnum Right Fender Shroud
$162.99

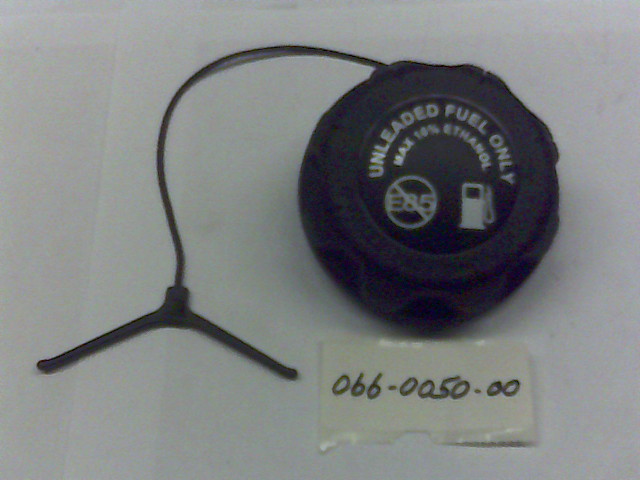

18 066-0050-00 066-0050-00 - Fuel Cap MZ Magnum (See Models Used On For Details)
$28.39

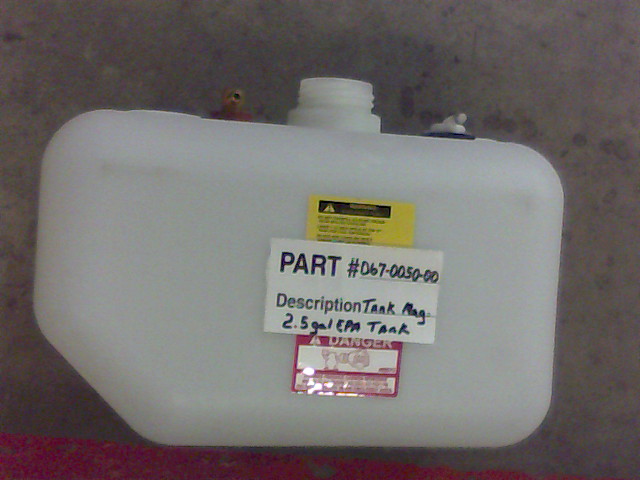

19 067-0050-00 067-0050-00 - 2013-2016 Magnum - Fuel Tank Assy
$155.99

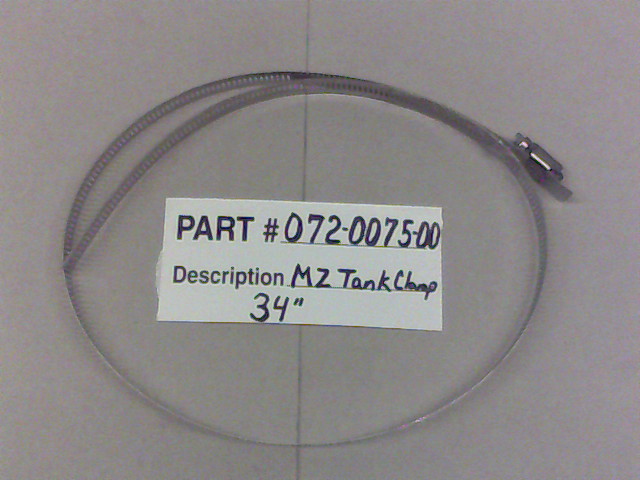

20 072-0075-00 072-0075-00 - MZ Magnum Tank Clamp-63164
$14.19
21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
22 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99

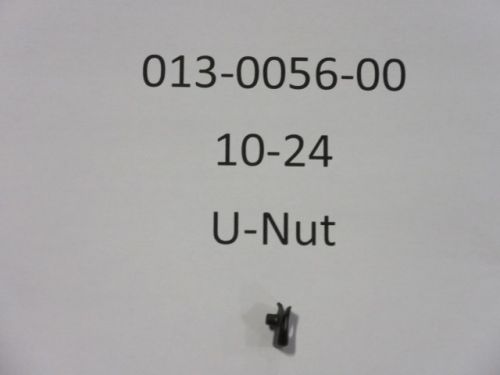

23 013-0056-00 013-0056-00 - 10-24 "U" Nut
$2.99
24 042-9000-00 042-9000-00 - Ignition Key
$4.06
25 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
26 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
27 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29

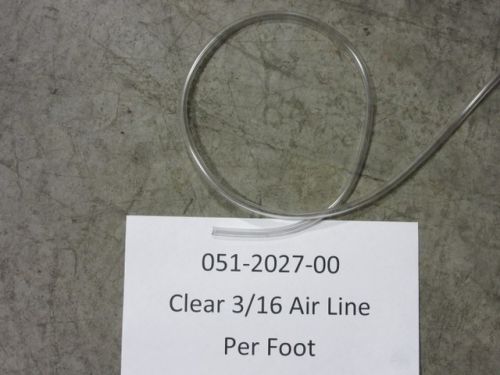

28 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
29 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99

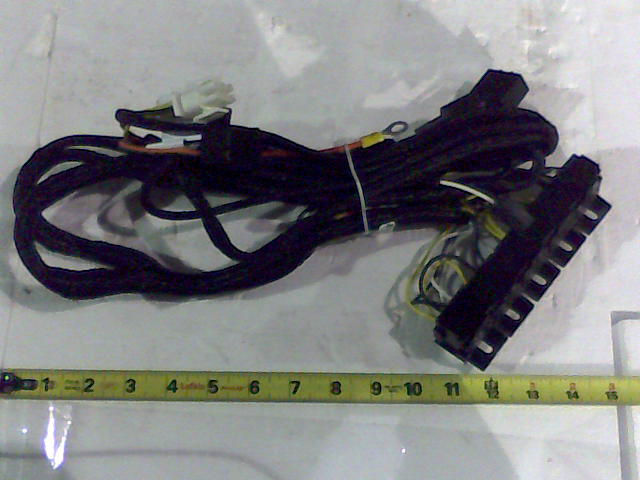

31 086-0075-00 086-0075-00 - 2010-2016 Wiring Harness - MZ Models
$389.00
32 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
33 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
