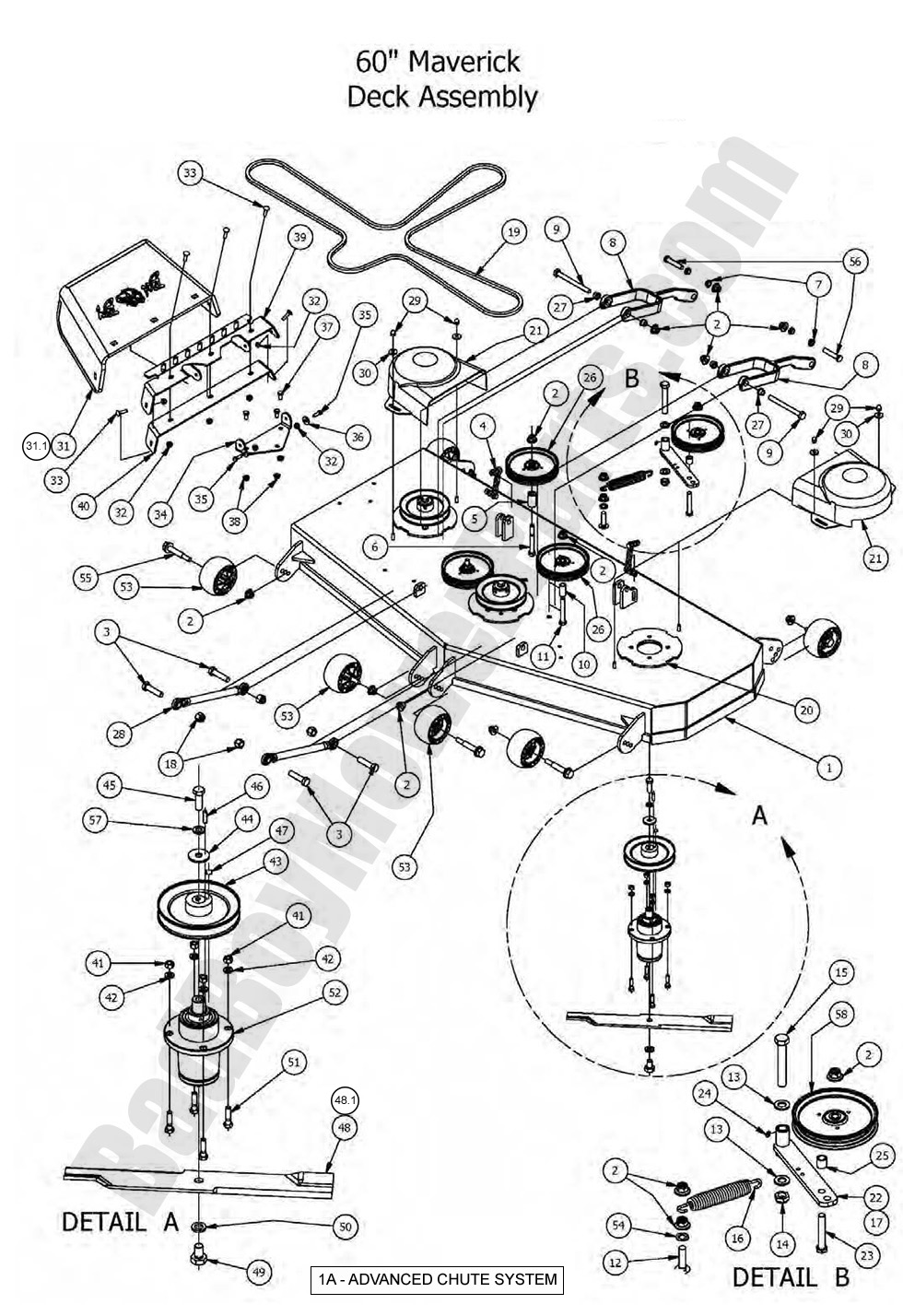

2016 Maverick - 60" Deck Assembly

2016 Maverick - 60" Deck Assembly

Maximize the cutting efficiency of your 2016 Maverick 60" Deck Assembly with high-quality replacement parts from BadBoyMowerParts.com. Our Bad Boy Mower Part diagrams make it easy to identify the exact components needed for repairs or upgrades. From deck belts and spindles to blades and pulleys, we offer a full range of Bad Boy Mower Parts to keep your machine in optimal condition. Maintaining your deck is crucial for performance, and our selection of Bad Boy Lawn Mower Parts ensures durability and precision. Ordering Bad Boy Parts Online is fast and simple, giving you access to everything required for deck maintenance. Our commitment to quality and customer satisfaction means you get the best parts at competitive prices. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to keep your deck operating at peak efficiency. Shop at BadBoyMowerParts.com for the best replacement parts for your 2016 Maverick 60" Deck Assembly and keep your mower in top shape.

Bad Boy Mower Parts Lookup

2016 Maverick - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6060-00 060-6060-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Mav 60" Deck Shell
$1328.83
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
4 047-8000-00 047-8000-00 - 2016-2017 Maverick Deck Hanger Chain
$8.74
5 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
6 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
7 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
8 031-6020-00 031-6020-00 - Deck Hanger-Black
$132.68
9 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
10 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
13 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
17 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
18 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
19 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
20 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
21 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
22 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
23 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
24 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
25 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
26 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
27 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
28 048-6060-00 048-6060-00 - CZT/ZT/Maverick/Stand-On Toplink/Turnbuckle (See Models Used On For Details)
$56.77
29 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
30 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
31.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
31 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
34 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
35 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
36 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
37 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
38 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
39 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
40 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
41 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
42 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
43 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
44 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
45 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
46 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
47 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
48.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
48 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
49 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
50 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
51 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
52 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
53A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
53 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
54 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
55 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
56 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
57 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
58 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
