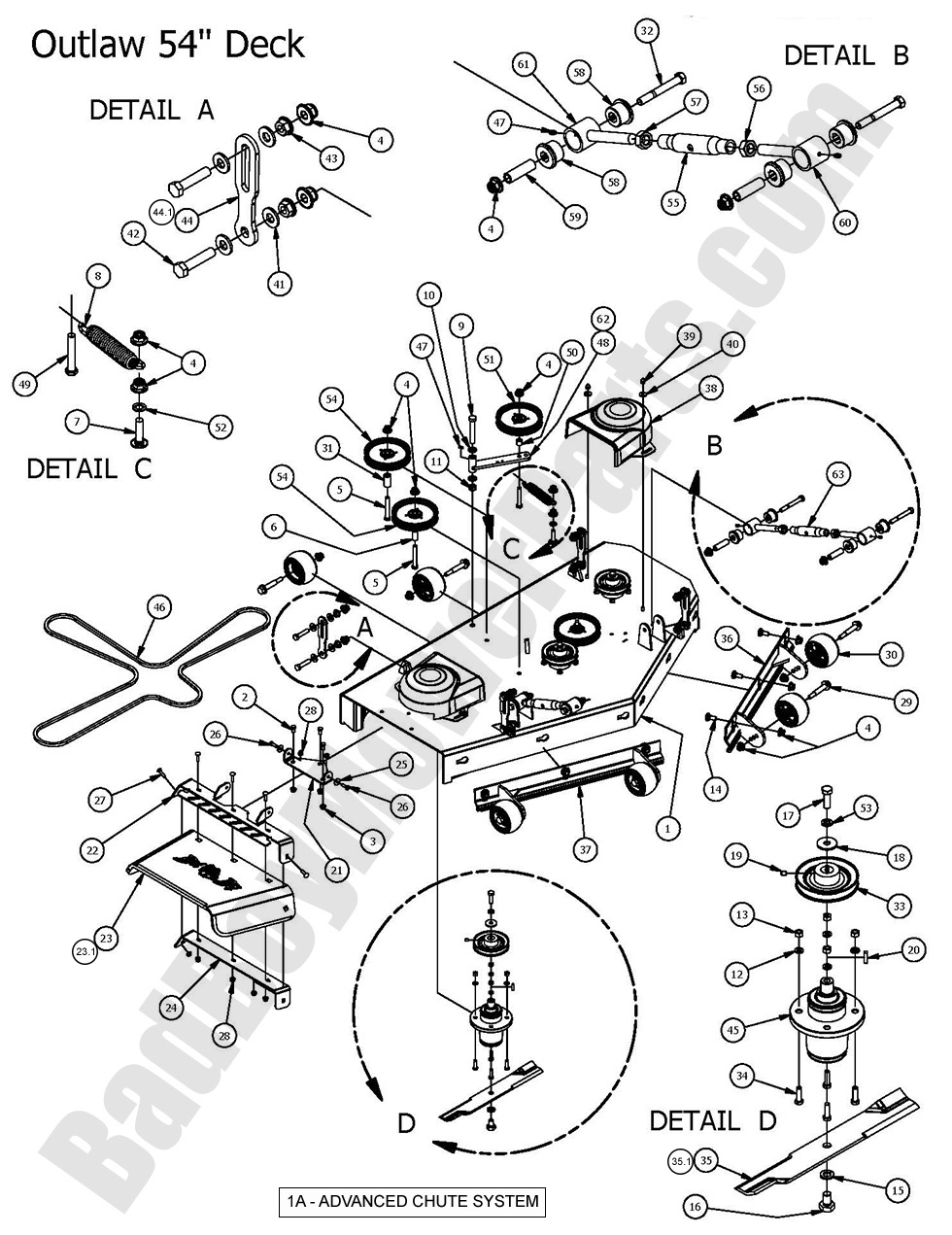

2016 Outlaw & Outlaw Extreme - 54" Deck Assembly

2016 Outlaw & Outlaw Extreme - 54" Deck Assembly

You have selected the 54in. Deck Assembly diagram for your 2016 Bad Boy Outlaw & Outlaw Extreme. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw & Outlaw Extreme models. Find all of your Bad Boy parts for your 2016 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw & Outlaw Extreme 54in. Deck Assembly . If you are not able to find the Bad Boy parts for your 2016 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6007-00 088-6007-00 - Advanced Chute System for 2010-2018 54" Outlaw Models
$266.99
1 060-5550-00 060-5550-00 - 2015-2018 54" Outlaw DeckShell/Hangs with Brackets
$1176.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
21 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
22 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
23.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
23 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
24 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
25 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
26 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
27 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
28 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
29 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
30A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
30 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
31 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
32 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
33 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
34 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
35.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
35 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
36 060-5520-00 060-5520-00 - 54 Outlaw & Stand On Adjustable Deck Front (Left Gate)
$85.99
37 060-5530-00 060-5530-00 - 54 Outlaw & Stand On Adjustable Deck Front (Right Gate)
$85.99
38 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
39 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
40 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
41 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
42 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
43 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
44.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
44 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
46 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
47 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
48 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
49 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
50 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
51 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
55 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
56 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
57 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
58 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
59 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
60 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
62 039-6945-01 039-6945-01 - Deck Idler Assembly (See Models Used On For Details)
$40.65
63 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
