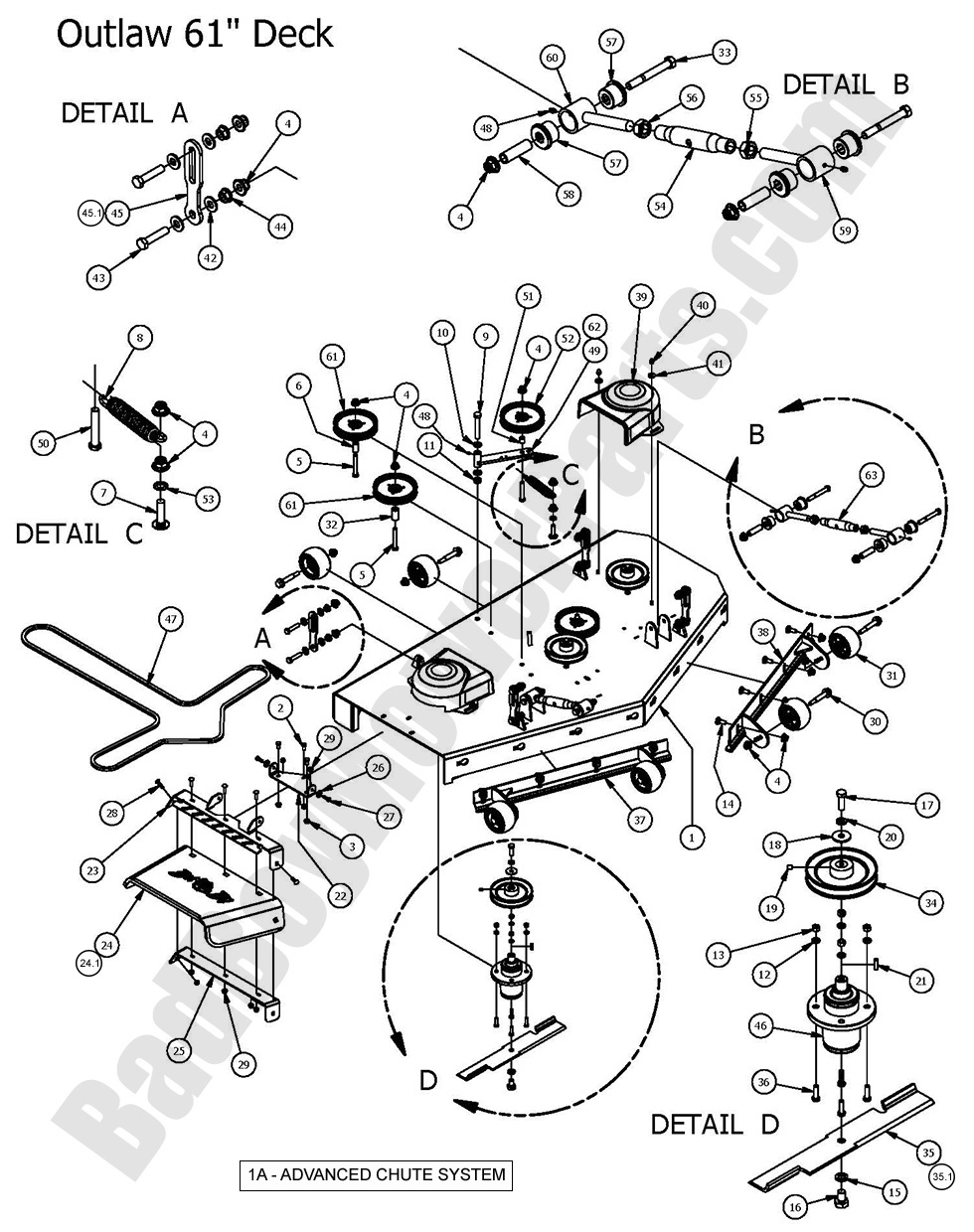

2016 Outlaw & Outlaw Extreme - 61" Deck Assembly

2016 Outlaw & Outlaw Extreme - 61" Deck Assembly

Upgrade your mowing system with the 2016 Outlaw & Outlaw Extreme 61" Deck Assembly, a superior component designed for expansive cutting efficiency and reliable performance. This deck assembly is crafted with durable materials and state‐of‐the‐art construction techniques to deliver consistent blade alignment and an immaculate cut. Its extended design ensures broader coverage, reducing mowing time while enhancing the overall aesthetic of your lawn. Built for both high‐demand commercial use and residential applications, it promises improved grass collection and reduced operational strain. Detailed assembly instructions and maintenance recommendations accompany this part, ensuring a secure installation and prolonged service life. For precise schematics, verified parts, and expert support, consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available from our reliable online resource. Visit BadBoyMowerParts.com for further insights and technical details that guarantee optimum performance with every mowing session. Enhance your mower’s control and stability with this superior assembly, delivering outstanding operational performance every time.

Bad Boy Mower Parts Lookup

2016 Outlaw & Outlaw Extreme - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6150-00 060-6150-00 - 2015-2018 Outlaw/XP and Diesel/Compact Diesel (28hp/1100CC) 61" Deck Shell
$1199.99
2 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
7 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
8 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
15 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
19 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
22 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
23 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
24.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
24 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
25 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
28 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
31A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
31 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
32 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
33 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
34 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
35.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
35 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
36 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
37 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
38 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
39 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
40 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
41 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
44 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
45.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
45 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
46 037-4000-50 037-4000-50 - Outlaw/XP/Diesel Spindle (obsolete)
use part #037-4000-00
$291.91
47 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
48 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
49 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
50 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
51 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
52 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
53 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
61 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
62 039-6945-01 039-6945-01 - Deck Idler Assembly
$40.65
63 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
